iFlightPlanner



...

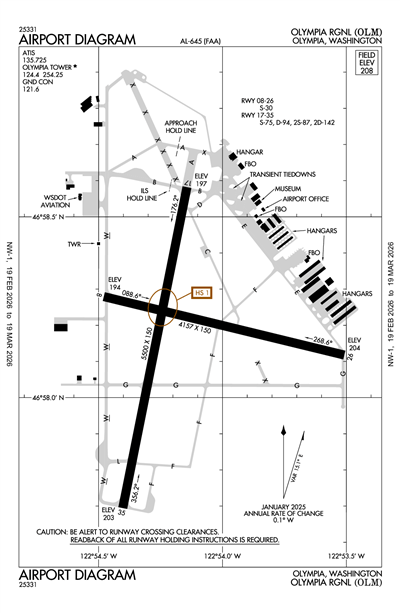

OLYMPIA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOLM
OLYMPIA RGNL
PublicPUB

4 miles S of OLYMPIA, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 58' 10"N 122° 54' 09"W
208' MSL
1208' MSL
15E
JET A, 100LL
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
4/17/25-5/15/25
KOLM IFR
2:54 PM PST
Light Rain and Mist
Overcast 2,700'
Broken 2,100'
2.5sm
43°F
41°F
30.26"Hg
200° 7kts
AO2 RAB11 SLP247 P0001 T00610050
METAR KOLM 082254Z 20007KT 2 1/2SM -RA BR BKN021 OVC027 06/05 A3026 RMK AO2 RAB11 SLP247 P0001 T00610050
+ Add Your Business

KOLM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 135.725

Ground

GND/P 121.6

Tower

LCL/P 124.4

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KOLM
Thu, 1/8 11:07 AM PST
Thu, 1/8 11:00 AM PST - Fri, 1/9 10:00 AM PST
MVFR
11:00 AM PST - 1:00 PM PST
Overcast 3,500'
Broken 2,500'
6sm
220° 10kts
MVFR
1:00 PM PST - 4:00 PM PST
Broken 2,500'
6sm
220° 8kts
MVFR
4:00 PM PST - 10:00 PM PST
Mist
Overcast 2,500'
Broken 2,200'
6sm
210° 5kts
MVFR
10:00 PM PST - 6:00 AM PST
Mist
Overcast 2,700'
3sm
210° 4kts
MVFR
6:00 AM PST - 10:00 AM PST
Mist
Overcast 1,000'
4sm
200° 5kts
TAF KOLM 081907Z 0819/0918 22010KT P6SM BKN025 OVC035
   FM082100 22008KT P6SM BKN025
   FM090000 21005KT 6SM BR BKN022 OVC025
   FM090600 21004KT 3SM BR OVC027
   FM091400 20005KT 4SM BR OVC010
KOLM
EffectiveExpiresCategoryNOTAM
Domestic
1/9/26
1700Z
1/9/26
2359Z
!OLM 01/002 OLM AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF OLM SFC-3500FT AGL ACFT CS FLC69 2601091700-2601092359
1/9/26
1700Z
1/9/26
2100Z
!OLM 01/001 OLM AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF OLM SFC-3500FT AGL ACFT CS FLC69 2601091700-2601092100
1/8/26
0200Z
1/8/26
1600Z
Runway!OLM 01/004 OLM RWY 08/26 CLSD 2601080200-2601081600
1/5/26
1836Z
1/10/26
1500Z
!OLM 01/005 OLM TWY W BTN APCH END RWY 35 AND TWY G CLSD 2601051836-2601101500
1/5/26
1500Z
1/10/26
1500Z
!OLM 12/020 OLM TWY F BTN APCH END RWY 35 AND TWY G CLSD 2601051500-2601101500
1/5/26
1500Z
1/10/26
1500Z
!OLM 12/019 OLM TWY A BTN APCH END RWY 17 AND TWY W CLSD 2601051500-2601101500
1/5/26
1500Z
1/10/26
1500Z
!OLM 12/018 OLM TWY L BTN TWY F AND TWY W CLSD 2601051500-2601101500
1/5/26
1500Z
1/10/26
1500Z
!OLM 12/017 OLM TWY G BTN TWY F AND TWY W CLSD 2601051500-2601101500
1/5/26
1500Z
1/10/26
1500Z
Runway!OLM 12/016 OLM RWY 17/35 CLSD 2601051500-2601101500
1/5/26
1500Z
1/12/26
1600Z
!OLM 12/015 OLM NAV ILS RWY 17 U/S 2601051500-2601121600
11/28/25
0156Z
!OLM 11/010 OLM NAV ILS RWY 17 GP U/S 2511280156-2602112000EST
9/19/25
0041Z
3/31/26
2359Z
Runway!OLM 09/041 OLM RWY 17/35 S 750FT SFC MARKING NOT STD 2509190041-2603312359
9/19/25
0039Z
3/31/26
2359Z
Runway!OLM 09/040 OLM RWY 17/35 S 750FT NOT GROOVED 2509190039-2603312359
9/4/25
0547Z
9/4/26
2359Z
!OLM 09/020 OLM NAV VOR GND REC CHECKPOINT U/S 2509040547-2609042359
Yes
0800-1700
PORT OF OLYMPIA
606 COLUMBIA ST NW, SUITE 300
OLYMPIA, WA 98501-0827
Phone: 360-528-8000
CHRIS PAOLINI
7643 OLD HWY 99 SE
OLYMPIA, WA 98501
Phone: 360-528-8074
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
OLM
--
WHEN ATCT CLSD ACTVT HIRL RY 17/35; MALSR 17; REIL RY 35, TWY LGTS & DIRECTIONAL SIGNAGE - CTAF. PAPI RYS 17 & 35 OPER CONT.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 08/26

4157 ft. x 150 ft.
ASPH
Good
NONE


30,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 104°284°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 46° 58' 17"N 46° 58' 07"N
Longitude 122° 54' 29"W 122° 53' 30"W
Elevation 194' 204'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

75,000lbs
94,000lbs
142,000lbs
--
  Runway 17 Runway 35
True Heading 191°11°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition POOR POOR
Latitude 46° 58' 35"N 46° 57' 42"N
Longitude 122° 54' 09"W 122° 54' 24"W
Elevation 197' 203'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-5TWY LGTS ON TWY W, A, L, AND B.
A110-6AIRPORT FIELD CONDITIONS UNMONITORED 1700 LCL - 0700 LCL.
A110-7EMERG FREQ 121.5 NOT MNT AT TWR.
A110-8FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4723.
A81-APTWHEN ATCT CLSD ACTVT HIRL RY 17/35; MALSR 17; REIL RY 35, TWY LGTS & DIRECTIONAL SIGNAGE - CTAF. PAPI RYS 17 & 35 OPER CONT.
E111ESTABD PRIOR TO 15 MAY 1959.
OLYMPIA RGNL (ICAO: KOLM, IATA: OLM) is a public airport located in OLYMPIA, WA.
