No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOLG
SOLON SPRINGS MUNI
PublicPUB

3 miles S of SOLON SPRINGS, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 18' 53"N 91° 48' 59"W
1102' MSL
2102' MSL
01E
100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KOLG VFR
5:35 AM CST
Clear
10sm
25°F
23°F
30.22"Hg
Calm
AO1
KOLG 091135Z AUTO 00000KT 10SM CLR M04/M05 A3022 RMK AO1
Add Your Business

KOLG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
715-378-2031
 119.6

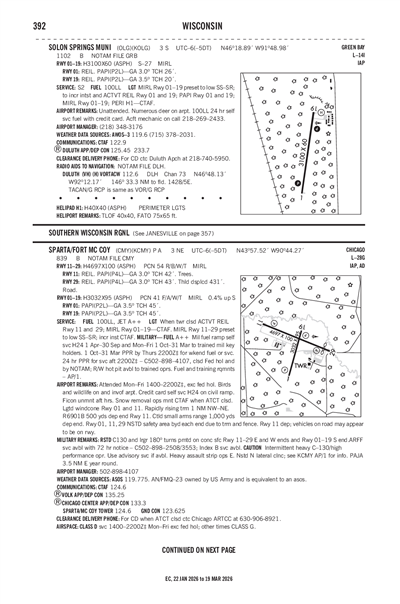

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHYR (23nm)
Sat, 11/9 5:23 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 9:00 PM CST
Scattered 25,000'
6sm
160° 5kts
VFR
9:00 PM CST - 12:00 AM CST
Light Rain
Overcast 6,000'
6sm
150° 5kts
MVFR
12:00 AM CST - 2:00 AM CST
Light Rain
Overcast 2,300'
6sm
VRB° 3kts
IFR
2:00 AM CST - 4:00 AM CST
Light Rain
Overcast 800'
6sm
VRB° 2kts
IFR
4:00 AM CST - 6:00 AM CST
Light Rain
Overcast 500'
6sm
VRB° 2kts
KHYR 091123Z 0912/1012 16005KT P6SM SCT250
   FM100300 15005KT P6SM -RA OVC060
   FM100600 VRB03KT P6SM -RA OVC023
   FM100800 VRB02KT P6SM -RA OVC008
   FM101000 VRB02KT P6SM -RA OVC005
KOLG
No NOTAM Available
No
UNATNDD
TOWN OF SOLON SPRINGS ARPT COMM
P.O. BOX 36
SOLON SPRINGS, WI 54873
Phone: 715-378-2235
NEIL MATHISON
11268 S TWIN LAKE RD
SOLON SPRINGS, WI 54573
Phone: (218) 348-3176
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Pilot Instruction

Runway 01/19

3099 ft. x 60 ft.
ASPH
Excellent
NONE
MED

27,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 8°188°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 18' 38"N 46° 19' 08"N
Longitude 91° 49' 02"W 91° 48' 56"W
Elevation 1,101' 1,100'
Threshold Crossing Height 26 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

40 ft. x 40 ft.

ASPH
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 89°269°
Traffic Pattern
Markings
Markings Condition
Latitude 46° 19' 08"N N/A
Longitude 91° 48' 52"W N/A
Elevation 1,090' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3NUMEROUS DEER ON ARPT.
A110-4FOR CD CTC DULUTH APCH AT 218-740-5950.
SOLON SPRINGS MUNI (ICAO: KOLG, IATA: OLG) is a public airport located in SOLON SPRINGS, WI.
