CATTARAUGUS COUNTY-OLEAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOLE
ICAO KOLEIATA OLELocal OLE
CATTARAUGUS COUNTY-OLEAN
PublicPUB

10 miles N of OLEAN, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 14' 28"N 78° 22' 17"W
Elevation
2135' MSL
Pattern Alt
3135' MSL
Mag Variation
11°W
Declination
11°W
Fuel
JET A (FSII), 100LL
FSS
BUFFALO (BUF)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KOLE LIFR
10:35 PM EST
Fog
Overcast 200'
0.25sm
34°F
34°F
30.12"Hg
Calm
AO2
METAR KOLE 040335Z AUTO 00000KT 1/4SM FG OVC002 01/01 A3012 RMK AO2
+ Add Your Business

KOLE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.375
(716) 557-2001

Common

CTAF 122.8
ACTVT REIL RWY 04 & 22; PAPI RWY 04 & 22; HIRL RWY 04/22; WDI - CTAF.
UNICOM 122.8

Center

CLEVELAND CENTER 124.325
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 124.325/353.85 (WAYLAND RCAG).

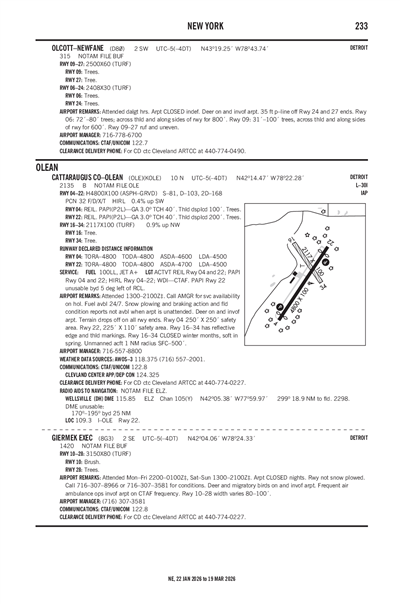

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBFD (29nm)
Tue, 3/3 9:14 PM EST
Tue, 3/3 9:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
9:00 PM EST - 4:00 AM EST
Light Showers and Rain and Mist
Overcast 300'
1sm
260° 3kts
LIFR
4:00 AM EST - 9:00 AM EST
Fog
Overcast 200'
0.25sm
290° 3kts
LIFR
9:00 AM EST - 10:00 AM EST
Mist
Overcast 300'
2sm
040° 4kts
VFR
10:00 AM EST - 12:00 PM EST
Mist
Scattered 300'
6sm
120° 3kts
VFR
12:00 PM EST - 7:00 PM EST
Few 25,000'
6sm
160° 3kts
TAF KBFD 040214Z 0402/0424 26003KT 1SM -SHRA BR OVC003
   FM040900 29003KT 1/4SM FG OVC002
   FM041400 04004KT 2SM BR OVC003
   FM041500 12003KT 6SM BR SCT003
   FM041700 16003KT P6SM FEW250
KOLE
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0507Z
3/12/26
0407Z
!OLE 02/012 OLE OBST TOWER LGT (ASR 1288242) 422210.70N0781316.30W (10.3NM NE OLE) 2330.1FT (330.1FT AGL) U/S 2602250507-2603120407
11/25/25
1500Z
!OLE 11/008 OLE NAV LOC RWY 22 OM U/S 2511251500-2605262000EST
FDC
1/14/25
1611Z
!FDC 5/3272 OLE IAP CATTARAUGUS COUNTY-OLEAN, OLEAN, NY.
LOC RWY 22, AMDT 7B...
TAA STRAIGHT-IN 133/30 CW 313/30 TO UGASE (NOPT) MINIMUM ALTITUDE 5100. TAA STRIGHT-IN 133/11 CW 313/11 TO UGASE (NOPT) MINIMUM ALTITUDE 4800. TAA STRAIGHT-IN 313/30 CW 133/30 TO UGASE MINIMUM ALTITUDE 5100. TAA STRIGHT-IN 313/11 CW 133/11 TO UGASE MINIMUM ALTITUDE 4800. MINIMUM HOLD ALTITUDE AT UGASE 4800. (2020-WTE-7479-OE, PERM WINDMILL, 36-226866 PERM WINDMILL).
2501141611-2701141608EST
1/14/25
1608Z
!FDC 5/3270 OLE IAP CATTARAUGUS COUNTY-OLEAN, OLEAN, NY.
RNAV (GPS) RWY 22, AMDT 2B...
TAA STRAIGHT-IN 133/30 CW 313/30 TO UGASE (NOPT) MINIMUM ALTITUDE 5100. TAA STRIGHT-IN 133/11 CW 313/11 TO UGASE (NOPT) MINIMUM ALTITUDE 4800.
TAA STRAIGHT-IN 313/30 CW 133/30 TO UGASE MINIMUM ALTITUDE 5100. TAA STRIGHT-IN 313/11 CW 133/11 TO UGASE MINIMUM ALTITUDE 4800. MINIMUM HOLD ALTITUDE AT UGASE 4800.
(2020-WTE-7479-OE, PERM WINDMILL, 36-226866 PERM WINDMILL).
2501141608-2701141559EST
No
0800-1600
CALL AMGR FOR SVC AVAILABILITY ON HOL.
CITY OF OLEAN
MUN BLDG
OLEAN, NY 14760
Phone: 716-375-5650
BRUCE CRANDELL
AIRPORT ROAD(5420 HATCH HILL RD)
HINSDALE, NY 14743
Phone: 716-557-8800
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
OLE
--
ACTVT REIL RWY 04 & 22; PAPI RWY 04 & 22; HIRL RWY 04/22; WDI - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

4800 ft. x 100 ft.
ASPH
Fair
GRVD
HIGH
32/F/D/X/T
81,000lbs
103,000lbs
168,000lbs
--
  Runway 04 Runway 22
True Heading 32°212°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 14' 05"N 42° 14' 45"N
Longitude 78° 22' 35"W 78° 22' 01"W
Elevation 2,132' 2,112'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

2117 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 148°328°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 42° 14' 45"N 42° 14' 27"N
Longitude 78° 22' 22"W 78° 22' 08"W
Elevation 2,135' 2,117'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER ON & INVOF ARPT.
A110-2SNOW PLOWING & BRAKING ACTION & FIELD COND RPRTS NOT AVBL WHEN ARPT IS UNATNDD.
A110-4TERRAIN DROPS OFF ON ALL RWY ENDS. RWY 4: 250 FT X 250 FT RESA. RWY 22: 225 FT WIDE X 110 FT LONG RESA.
A110-5RWY 16/34 CLSD WINTER MONTHS; SOFT IN SPRING.
A110-6FUEL AVBL 24/7.
A110-8UNMANNED ACFT 1NM RADIUS SFC-500 FT.
A110-9FOR CD CTC CLEVELAND ARTCC AT 440-774-0227.
A17-D1CALL AMGR FOR SVC AVAILABILITY ON HOL.
A42-16_MARKREFLECTIVE EDGE & THLD MARKINGS.
A42-34_MARKREFLECTIVE EDGE & THLD MARKINGS.
A43-22UNUSBL BYD 5 DEGS LEFT OF CNTRLN.
A57-04RWY 04 CLNC SLOPE 6:1 TO DTHR.
A57-22RWY 22 CLNC SLOPE 21:1 TO DTHR DUE TO 53 FT TREE, 969 FT. FM RWY END, 585 FT RIGHT.
A58-0442 TO 52 FT TREES, 0-200 FT FM RWY END, 475 FT RIGHT.
A58-225-15 FT TREES, 50-130 FT FM RWY END, 435 FT LEFT.
A81-APTACTVT REIL RWY 04 & 22; PAPI RWY 04 & 22; HIRL RWY 04/22; WDI - CTAF.
E111EXISTED PRIOR TO 1959.
CATTARAUGUS COUNTY-OLEAN (ICAO: KOLE, IATA: OLE) is a public airport located in OLEAN, NY, US.
