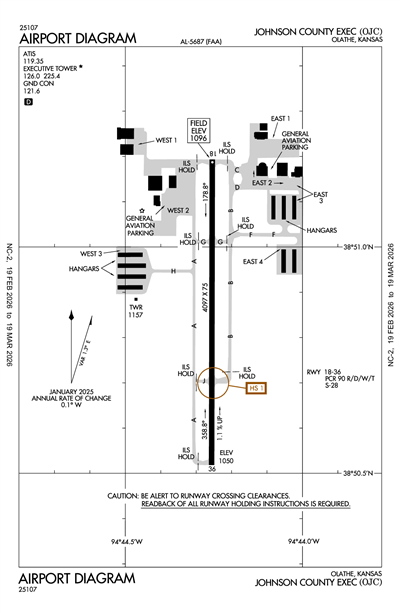

JOHNSON COUNTY EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOJC
ICAO KOJCIATA OJCLocal OJC
JOHNSON COUNTY EXEC
PublicPUB

4 miles SE of OLATHE, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 50' 51"N 94° 44' 15"W
Elevation
1096' MSL
Pattern Alt
2096' MSL
Mag Variation
1°E
Declination
4°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KOJC LIFR
7:53 PM CST
Mist
Overcast 100'
1.25sm
43°F
43°F
30.07"Hg
040° 8kts
AO2 SLP187 T00610061
METAR KOJC 040153Z 04008KT 1 1/4SM BR OVC001 06/06 A3007 RMK AO2 SLP187 T00610061
+ Add Your Business

KOJC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.35
(913) 764-9272
ASOS (913) 780-6969

Common

CTAF 126.0
WHEN TWR CLSD ACTVT MALSR RWY 36, MIRL RWY 18-36, TWY LGTS AND WIND CONE - CTAF.
UNICOM 122.95

Ground

EXECUTIVE GROUND 121.6
0700-2100

Tower

EXECUTIVE TOWER 126.0
0700-2100

Arrival

BRAYMER STAR 120.95
JHAWK STAR 120.95
TYGER STAR 120.95

Approach

KANSAS CITY APPROACH 118.9

Departure

KANSAS CITY DEPARTURE 118.9

Terminal Area Forecast

KIXD (7nm)
Tue, 3/3 5:32 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
6:00 PM CST - 12:00 AM CST
Light Drizzle and Mist
Overcast 300'
1sm
040° 7kts
VFR
7:00 PM CST - 12:00 AM CST
Light Showers and Rain
No Clouds
N/A
Calm
LIFR
12:00 AM CST - 10:00 AM CST
Light Drizzle and Mist
Overcast 400'
3sm
040° 8kts
IFR
10:00 AM CST - 4:00 PM CST
Mist
Overcast 700'
6sm
VRB° 4kts
MVFR
4:00 PM CST - 6:00 PM CST
Mist
Overcast 1,500'
6sm
VRB° 4kts
TAF KIXD 032332Z 0400/0424 04007KT 1SM -DZ BR OVC003
   PROB30 0401/0406 -SHRA
   FM040600 04008KT 3SM -DZ BR OVC004
   FM041600 VRB04KT 6SM BR OVC007
   FM042200 VRB04KT 6SM BR OVC015
KOJC
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0111Z
!OJC 02/004 OJC NAV ILS RWY 18 DME U/S 2602250111-2603032000EST
FDC
2/25/26
1400Z
3/4/26
1613Z
!FDC 6/9236 OJC SID JOHNSON COUNTY EXEC, OLATHE, KS.
LAKES FIVE DEPARTURE...
SPINNER TRANSITION,TWAIN TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SPI VORTAC OUT OF SERVICE. 2602251400-2603041613EST
4/10/25
1227Z
!FDC 5/4731 OJC IAP JOHNSON COUNTY EXEC, OLATHE, KS.
LOC RWY 18, AMDT 8A...
ADD CHART NOTE: RWY 18 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED..
2504101227-2704101227EST
4/10/25
1222Z
!FDC 5/4730 OJC IAP JOHNSON COUNTY EXEC, OLATHE, KS.
LOC RWY 36, AMDT 2...
CHANGE CHART NOTE TO READ: FOR INOPERATIVE ALS, INCREASE S-36 CATS A AND B VISIBILITY TO 1 SM AND CAT C VISIBILITY TO 1 3/8 SM.
2504101222-2704101222EST
4/10/25
1216Z
!FDC 5/4729 OJC IAP JOHNSON COUNTY EXEC, OLATHE, KS.
RNAV (GPS) RWY 18, AMDT 1C...
LNAV VIS CAT C 1 3/8.
2504101216-2704101216EST
3/29/24
2000Z
3/19/26
0900Z
!FDC 4/4229 OJC STAR JOHNSON COUNTY EXEC, OLATHE, KS BRAYMER EIGHT
ARRIVAL..PROCEDURE AMEND SPINNER TRANSITION, MOCA 2700 SPI
VORTAC TO BQS VOR/DME. ALL OTHER DATA REMAINS AS PUBLISHED.

2403292000-2603190900
Yes
ALL
JOHNSON COUNTY
1 NEW CENTURY PARKWAY
OLATHE, KS 66031
Phone: 913-715-6000
BRYAN JOHNSON
ONE NEW CENTURY PARKWAY
NEW CENTURY, KS 66031
Phone: 913-715-6002
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
OJC
--
WHEN TWR CLSD ACTVT MALSR RWY 36, MIRL RWY 18-36, TWY LGTS AND WIND CONE - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

4097 ft. x 75 ft.
CONC
Excellent
NONE
MED

28,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 51' 12"N 38° 50' 31"N
Longitude 94° 44' 15"W 94° 44' 15"W
Elevation 1,096' 1,050'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R V2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No
A110-2UPON TAKEOFF FOR RYS 18 & 36 MAINTAIN RY HEADING UNTIL PASSING 1,600 FT MSL.
A110-5BIRDS, WATERFOWL, WILDLIFE ON & INVOF ARPT.
A110-6TO CONFIRM SNOW REMOVAL AND WINTER CONDITIONS NOV-APR CALL 913-715-6005.
A110-7FOR CD WHEN ATCT IS CLSD CTC MCI APCH AT 816-329-2710.
A110-8IT IS ADVISED THAT ROTOCRAFT AVOID THE OVERFLIGHTS OF SURROUNDING NEIGHBORHOODS.
A39-18/36PCR VALUE: 90/R/D/W/T
A81-APTWHEN TWR CLSD ACTVT MALSR RWY 36, MIRL RWY 18-36, TWY LGTS AND WIND CONE - CTAF.
E111HEL CONDS: PROVDD APCH/DEP PATHS TO LNDG AREA MAINTD FOR MIN 8:1 GLIDE SLOPE & TRSNL SFC BE MAINTD FOR 2:1 SLOPE.
E147TPA LOW PER ACFT 1000 FT AGL, HIGH PER ACFT 1500 FT AGL
JOHNSON COUNTY EXEC (ICAO: KOJC, IATA: OJC) is a public airport located in OLATHE, KS, US.
