iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOIC
LT WARREN EATON
PublicPUB

2 miles N of NORWICH, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 33' 60"N 75° 31' 27"W
1024' MSL
2024' MSL
11W
JET A, JET A (FSII), 100LL
BUFFALO (BUF)
NEW YORK
BOSTON (ZBW)
10/31/24-11/28/24
KOIC VFR
6:55 AM EST
Clear
10sm
27°F
23°F
30.33"Hg
100° 1kts
AO2 10032 21029 70000
KOIC 091155Z AUTO 10001KT 10SM CLR M03/M05 A3033 RMK AO2 10032 21029 70000
Add Your Business

KOIC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
607-336-8583
 119.025

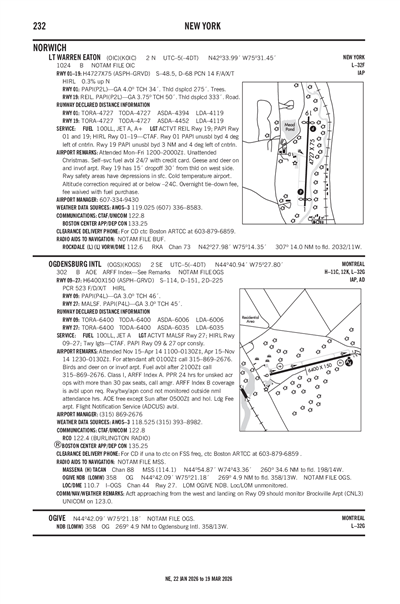

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBGM (30nm)
Sat, 11/9 6:20 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 3:00 PM EST
Sky Clear
6sm
350° 7kts
VFR
3:00 PM EST - 1:00 AM EST
Sky Clear
6sm
340° 6kts
VFR
1:00 AM EST - 7:00 AM EST
Few 25,000'
6sm
160° 5kts
KBGM 091120Z 0912/1012 35007KT P6SM SKC
   FM092000 34006KT P6SM SKC
   FM100600 16005KT P6SM FEW250
KOIC
Domestic
10/25/241434Z !OIC 10/003 OIC OBST TOWER LGT (ASR 1005738) 423251.20N0752707.40W (3.3NM ESE OIC) 2169.0FT (210.0FT AGL) U/S 2410251434-2411252300
2/11/241136Z !OIC 02/003 OIC AIRSPACE PJE WI AN AREA DEFINED AS 3NM RADIUS OF OIC SFC-10000FT AGL DLY SR-SS 2402111136-2501012140
No
MON-FRI 0700-1500
UNATNDD CHRISTMAS.
CHENANGO COUNTY
5 COURT ST.
NORWICH, NY 13815
Phone: 607-337-1640
SHANE H. BUTLER
6390 STATE HWY 12
NORWICH, NY 13815
Phone: 607-334-9430
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
OIC
--
ACTVT REIL RWY 19; PAPI RWY 01 & 19; HIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Air Ambulance

Runway 01/19

4727 ft. x 75 ft.
ASPH
Good
GRVD
HIGH
14 /F/A/X/T
48,000lbs
68,000lbs
--
--
  Runway 01 Runway 19
True Heading 3°183°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD FAIR
Latitude 42° 33' 36"N 42° 34' 23"N
Longitude 75° 31' 28"W 75° 31' 25"W
Elevation 1,009' 1,024'
Threshold Crossing Height 34 ft. AGL 50 ft. AGL
Visual Glide Path Angle 4° 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110-1NUMEROUS MTNS PIERCE CONICAL SFC AROUND ARPT.
A110-3RY 19 HAS 15 FT DROPOFF 30 FT FM THLD ON WEST SIDE.
A110-4RY SAFETY AREAS HAVE DEPRESSIONS IN SFC.
A110-6GEESE & DEER ON & INVOF ARPT.
A110-7FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A110-8COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -24C.
LT WARREN EATON (ICAO: KOIC, IATA: OIC) is a public airport located in NORWICH, NY.
