iFlightPlanner



...

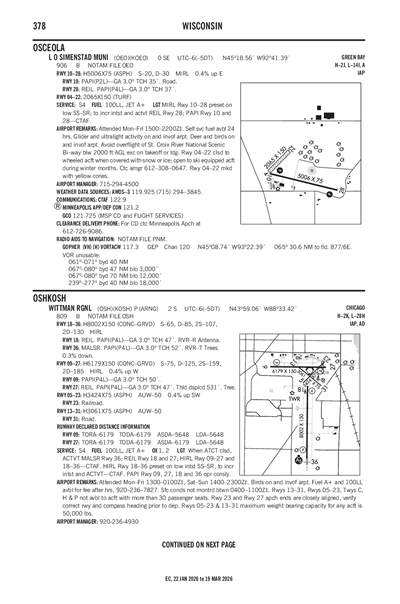

L O SIMENSTAD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOEO
ICAO KOEOIATA OEOLocal OEO
L O SIMENSTAD MUNI
PublicPUB

0 miles SE of OSCEOLA, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 18' 34"N 92° 41' 24"W
Elevation
906' MSL
Pattern Alt
1906' MSL
Mag Variation
0°
Declination
1°E
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KOEO VFR
10:35 PM CST
Clear
10sm
31°F
29°F
30.21"Hg
120° 3kts
AO2 T10061016 PWINO
METAR KOEO 040435Z AUTO 12003KT 10SM CLR M01/M02 A3021 RMK AO2 T10061016 PWINO
+ Add Your Business

KOEO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.925
(715) 294-3845

Common

CTAF 122.9
MIRL RWY 10/28 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 28; PAPI RWY 10 & 28 - CTAF.

Arrival

TWOLF STAR 126.95

Approach

MINNEAPOLIS APPROACH 121.2

Departure

MINNEAPOLIS DEPARTURE 121.2

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 MSP CD & FLT SVCS.

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KRNH (12nm)
Tue, 3/3 5:20 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 12:00 AM CST
Sky Clear
6sm
VRB° 2kts
MVFR
12:00 AM CST - 3:00 AM CST
Broken 2,000'
6sm
VRB° 2kts
IFR
3:00 AM CST - 9:00 AM CST
Mist
Broken 800'
5sm
190° 4kts
LIFR
Temporary 4:00 AM CST - 8:00 AM CST
Fog
Overcast 300'
0.5sm
Calm
VFR
9:00 AM CST - 6:00 PM CST
Scattered 2,500'
6sm
200° 7kts
TAF KRNH 032320Z 0400/0424 VRB02KT P6SM SKC
   FM040600 VRB02KT P6SM BKN020
   FM040900 19004KT 5SM BR BKN008
   TEMPO 0410/0414 1/2SM FG OVC003
   FM041500 20007KT P6SM SCT025
KOEO
No NOTAM Available
No
MON-FRI 0900-1600
VILLAGE OF OSCEOLA
PO BOX 217
OSCEOLA, WI 54020
Phone: 715-294-3498
RICHARD JOHNSON
PO BOX 643
OSCEOLA, WI 54020
Phone: 715-294-4500
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
OEO
--
MIRL RWY 10/28 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 28; PAPI RWY 10 & 28 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

2065 ft. x 150 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 18' 37"N 45° 18' 51"N
Longitude 92° 41' 51"W 92° 41' 31"W
Elevation 882' 881'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10/28

5006 ft. x 75 ft.
ASPH
Good
NONE
MED

20,000lbs
30,000lbs
--
--
  Runway 10 Runway 28
True Heading 104°284°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 18' 35"N 45° 18' 24"N
Longitude 92° 41' 51"W 92° 40' 43"W
Elevation 884' 905'
Threshold Crossing Height 35 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1RWY 04/22 CLSD TO WHEELED ACFT WHEN COVERED WITH SNOW OR ICE; OPEN TO SKI EQUIPPED ACFT WINTER MONTHS. CTC AMGR 612-308-0647.
A110-11GLIDER & ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-12DEER & BIRDS ON & INVOF ARPT.
A110-13FOR CD CTC MINNEAPOLIS APCH AT 612-726-9086.
A110-7GCO AVBL ON FREQ 121.725 MSP CD & FLT SVCS.
A110-8AVOID OVERFLIGHT OF ST CROIX RIVER NATIONAL SCENIC BI-WAY BLW 2000 FT AGL EXC ON TAKEOFF OR LDG.
A15EMAIL ADDRESS: RJOHNSON@OSCEOLAAERO.COM (ALL LOWER CASE)
A42-04_MARKMKD WITH YELLOW CONES.
A42-22_MARKMKD WITH YELLOW CONES.
A70-100LLSELF SVC FUEL AVBL 24 HRS.
A81-APTMIRL RWY 10/28 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 28; PAPI RWY 10 & 28 - CTAF.
L O SIMENSTAD MUNI (ICAO: KOEO, IATA: OEO) is a public airport located in OSCEOLA, WI, US.
