OCONTO/J DOUGLAS BAKE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOCQ
ICAO KOCQLocal OCQ
OCONTO/J DOUGLAS BAKE MUNI
PublicPUB

2 miles SW of OCONTO, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 52' 27"N 87° 54' 35"W
Elevation
604' MSL
Pattern Alt
1604' MSL
Mag Variation
4°W
Declination
3°W
Fuel
100LL
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KOCQ VFR
7:55 PM CST
No Clouds
10sm
30°F
24°F
30.13"Hg
Calm
AO1 T10111047
METAR KOCQ 040155Z AUTO 00000KT 10SM M01/M05 A3013 RMK AO1 T10111047
+ Add Your Business

KOCQ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.925
(920) 835-1599

Common

CTAF 122.8
MIRL RWY 11/29 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 11 & 29; MIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPS CONSLY.
UNICOM 122.8

Approach

GREEN BAY APPROACH 120.3

Departure

GREEN BAY DEPARTURE 120.3

Center

GREEN BAY CENTER 124.4
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON 124.4/317.7 (MOSINEE RCAG) WHEN GREEN BAY APCH CLSD.

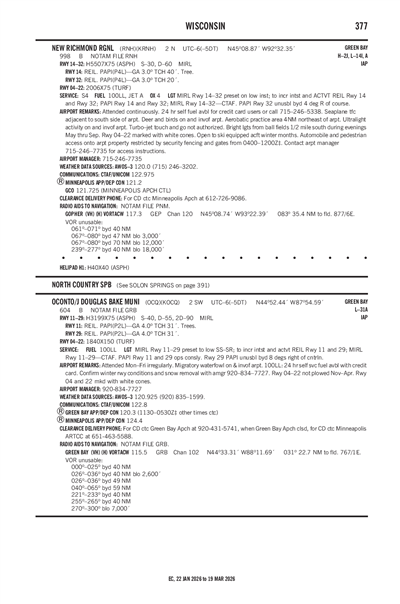

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGRB (26nm)
Tue, 3/3 5:36 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 2:00 AM CST
Sky Clear
6sm
240° 3kts
VFR
2:00 AM CST - 8:00 AM CST
Few 500'
6sm
VRB° 2kts
MVFR
Temporary 4:00 AM CST - 7:00 AM CST
Mist
Scattered 500'
4sm
Calm
VFR
8:00 AM CST - 6:00 PM CST
Scattered 25,000'
6sm
180° 4kts
TAF KGRB 032336Z 0400/0424 24003KT P6SM SKC
   FM040800 VRB02KT P6SM FEW005
   TEMPO 0410/0413 4SM BR SCT005
   FM041400 18004KT P6SM SCT250
KOCQ
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
0731Z
3/11/26
0631Z
!GRB 02/601 OCQ OBST TOWER LGT (ASR 1237918) 445551.00N0875204.00W (3.9NM NNE OCQ) 863.2FT (265.1FT AGL) U/S 2602240731-2603110631
No
MON-FRI IREG
OCONTO CITY AND COUNTY
1210 MAIN STREET
OCONTO, WI 54153
Phone: 920-834-7711
FRANK CALVERT
2983 AIRPORT RD
OCONTO, WI 54153
Phone: 920-834-7727
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
MIRL RWY 11/29 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 11 & 29; MIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPS CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 04/22

1840 ft. x 150 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 41°221°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 44° 52' 23"N 44° 52' 36"N
Longitude 87° 54' 48"W 87° 54' 31"W
Elevation 603' 602'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 11/29

3199 ft. x 75 ft.
ASPH
Excellent
NONE
MED

40,000lbs
55,000lbs
90,000lbs
--
  Runway 11 Runway 29
True Heading 109°289°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 52' 30"N 44° 52' 20"N
Longitude 87° 54' 54"W 87° 54' 12"W
Elevation 604' 601'
Threshold Crossing Height 31 ft. AGL 31 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2CONFIRM WINTER RY CONDITIONS & SNOW REMOVAL WITH AMGR 920-834-7727.
A110-3MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-4FOR CD CTC GREEN BAY APCH AT 920-431-5741, WHEN GREEN BAY APCH CLSD, FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A30-04/22NOT PLOWED NOV-APR.
A42-04_MARKMKD WITH WHITE CONES.
A42-22_MARKMKD WITH WHITE CONES.
A43-29RWY 29 PAPI UNUSBL BYD 8 DEGS RIGHT OF CNTRLN.
A70-100LL24 HR SELF SVC FUEL AVBL WITH CREDIT CARD.
A81-APTMIRL RWY 11/29 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 11 & 29; MIRL RWY 11/29 - CTAF. PAPI RWY 11 & 29 OPS CONSLY.
OCONTO/J DOUGLAS BAKE MUNI (ICAO: KOCQ, IATA: OCQ) is a public airport located in OCONTO, WI, US.
