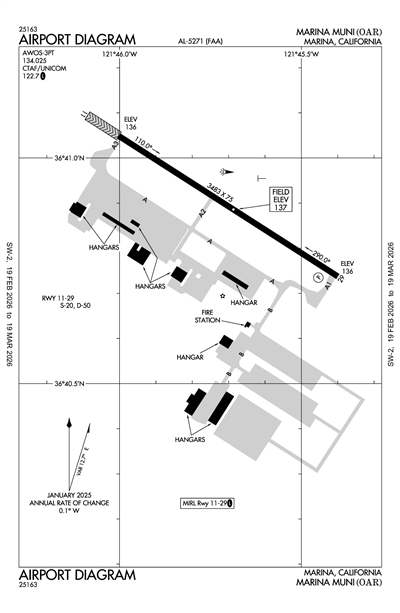

MARINA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOAR
ICAO KOARLocal OAR
MARINA MUNI
PublicPUB

2 miles NE of MARINA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 40' 53"N 121° 45' 42"W
Elevation
137' MSL
Pattern Alt
1137' MSL
Mag Variation
13°E
Declination
15°E
Fuel
JET A, 100LL
FSS
OAKLAND (OAK)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KOAR VFR
1:35 AM PST
Clear
10sm
50°F
50°F
30.12"Hg
290° 4kts
AO2
METAR KOAR 040935Z AUTO 29004KT 10SM CLR 10/10 A3012 RMK AO2
+ Add Your Business

KOAR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 134.025
(831) 384-2967

Common

CTAF 122.7
ACTVT MIRL RWY 11/29 - CTAF 7 CLICKS.
UNICOM 122.7

Approach

NORCAL APPROACH 133.0
Initial Contact - 001-135 MRY, ALL RADIALS OFF MRY ARPT.

Departure

NORCAL DEPARTURE 133.0
Initial Contact - 001-135 MRY, ALL RADIALS OFF MRY ARPT.

Other

CLASS C 133.0
001-135 MRY, ALL RADIALS OFF MRY ARPT.

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMRY (7nm)
Tue, 3/3 9:22 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
IFR
10:00 PM PST - 10:00 AM PST
Overcast 900'
6sm
270° 4kts
MVFR
10:00 AM PST - 1:00 PM PST
Broken 1,500'
6sm
300° 8kts
VFR
1:00 PM PST - 7:00 PM PST
Scattered 2,500'
6sm
290° 15kts
Gusts 25kts
MVFR
7:00 PM PST - 10:00 PM PST
Broken 1,500'
6sm
290° 15kts
Gusts 20kts
TAF KMRY 040522Z 0406/0506 27004KT P6SM OVC009
   FM041800 30008KT P6SM BKN015
   FM042100 29015G25KT P6SM SCT025
   FM050300 29015G20KT P6SM BKN015
KOAR
No NOTAM Available
No
MON - FRI 0800-1700
CITY OF MARINA
211 HILLCREST AVE.
MARINA, CA 93933
Phone: 831-884-1278
ADARIAN "AJ" LAWSON
781 NEESON ROAD
MARINA, CA 93933
Phone: 831-582-0102
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
OAK
--
ACTVT MIRL RWY 11/29 - CTAF 7 CLICKS.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Avionics
Parachute Jump Activity

Runway 11/29

3483 ft. x 75 ft.
ASPH
Good
NONE
MED

20,000lbs
50,000lbs
--
--
  Runway 11 Runway 29
True Heading 122°302°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD FAIR
Latitude 36° 41' 03"N 36° 40' 44"N
Longitude 121° 45' 60"W 121° 45' 24"W
Elevation 136' 136'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2DEP RY 29 EXECUTE 45 DEGREE RIGHT TURN TO AVOID OVERFLIGHT OF NOISE SENSITIVE RESIDENTIAL AREA.
A110-3RY 29 CALM WIND RY.
A110-4ULTRALIGHT & SKYDIVING ACTIVITY ON AND INVOF ARPT.
A110-5SKYDIVING ACTIVITY ON SE SIDE OF AIRPORT
A110-6FOR CD CTC NORCAL APCH AT 916-361-3748.
A110-7500 FT SWY DEP END RWY 29.
A43-29PAPI OPERS CONTINUOUSLY.
A70-100LLFUEL AVBL (100LL & JET A) 24 HRS VIA CREDIT CARD LOCK SYS.
A81-APTACTVT MIRL RWY 11/29 - CTAF 7 CLICKS.
MARINA MUNI (ICAO: KOAR, IATA: OAR) is a public airport located in MARINA, CA, US.
