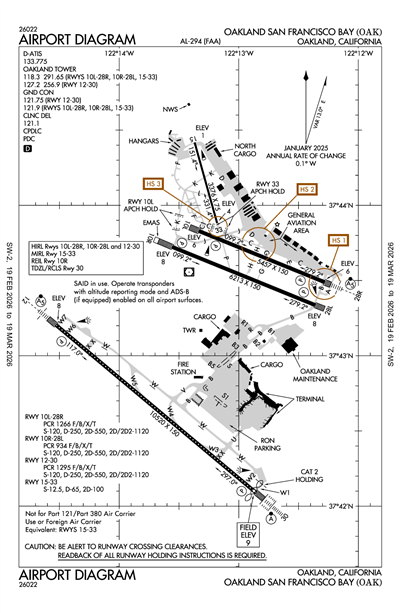

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KOAK
SAN FRANCISCO BAY OAKLAND INTL
PublicPUB

4 miles S of OAKLAND, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 43' 17"N 122° 13' 16"W
9' MSL
1009' MSL
14E
JET A, 100LL
OAKLAND (OAK)
SAN FRANCISCO
OAKLAND (ZOA)
10/31/24-11/28/24
KOAK VFR
3:53 AM PST
Clear
10sm
47°F
31°F
30.04"Hg
060° 3kts
AO2 SLP171 T00831006 10117 20078 58010
KOAK 091153Z 06003KT 10SM CLR 08/M01 A3004 RMK AO2 SLP171 T00831006 10117 20078 58010
Add Your Business

KOAK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KOAK
Sat, 11/9 3:32 AM PST
Sat, 11/9 4:00 AM PST - Sun, 11/10 10:00 AM PST
VFR
4:00 AM PST - 1:00 PM PST
Few 25,000'
6sm
VRB° 3kts
VFR
1:00 PM PST - 7:00 PM PST
Scattered 25,000'
6sm
280° 8kts
VFR
7:00 PM PST - 12:00 AM PST
Scattered 25,000'
Few 1,000'
6sm
VRB° 4kts
MVFR
12:00 AM PST - 10:00 AM PST
Overcast 1,500'
Scattered 800'
6sm
VRB° 3kts
KOAK 091132Z 0912/1018 VRB03KT P6SM FEW250
   FM092100 28008KT P6SM SCT250
   FM100300 VRB04KT P6SM FEW010 SCT250
   FM100800 VRB03KT P6SM SCT008 OVC015
KOAK
Domestic
11/7/241700Z !OAK 11/023 OAK TWY B BTN TWY B1 AND TWY B5 WIP GRASS CUTTING ADJ 2411071700-2411072230
11/6/241700Z !OAK 11/022 OAK TWY W BTN TWY W1 AND TWY B WIP GRASS CUTTING ADJ NORTH EDGE 2411061700-2411062230
11/6/241630Z !OAK 11/021 OAK TWY V CLSD 2411061630-2411062230
11/6/241600Z !OAK 11/052 OAK SVC TAR/SSR U/S 2411061600-2411062300
11/4/241600Z !OAK 11/018 OAK AD AP WDI NOT STD DLY 1600-2230 2411041600-2411062230
10/31/241331Z !OAK 10/388 OAK RWY 30 SEQUENCED FLG LGT U/S 2410311331-2411282359EST
10/15/241950Z !OAK 10/195 OAK OBST TOWER LGT (ASR 1253753) 374727.00N1221519.60W (4.5NM NNW OAK) 259.2FT (245.4FT AGL) U/S 2410151950-2412312359
10/7/241720Z !OAK 10/115 OAK OBST TOWER LGT (ASR 1016038) 374940.00N1221854.00W (7.9NM NW OAK) 262.5FT (257.9FT AGL) U/S 2410071720-2502072359
FDC
11/4/241500Z !FDC 4/8514 OAK IAP SAN FRANCISCO BAY OAKLAND INTL, OAKLAND, CA.
RNAV (GPS) Y RWY 28L, AMDT 4A...
LPV DA 259/HAT 250.
CHART NOTE: RWY 28L HELICOPTER VISIBILITY REDUCTION BELOW 3/4 NOT AUTHORIZED.
34:1 IS NOT CLEAR.
2411041500-2504171500EST
10/31/241206Z !FDC 4/6827 OAK ODP SAN FRANCISCO BAY OAKLAND INTL, OAKLAND, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
ADD TAKEOFF OBSTACLE NOTES: RWY 15, TEMPORARY CRANE 4226FT FROM DER, 823FT RIGHT OF CENTERLINE, 125FT AGL/129FT MSL (2022-AWP-3447-NRA). RWY 28R, CONST EQUIP BEGINNING 815FT FROM DER, 404FT RIGHT OF CENTERLINE, 35FT AGL/37FT MSL (2022-AWP-4822 THRU 4825-NRA). RWY 30, CONST EQUIP BEGINNING 266FT FROM DER, 531FT RIGHT OF CENTERLINE, UP TO 48FT AGL/58FT MSL (2020-AWP-2531/2532/2533/2534/2535/2536/2539/2540/2541/2542/2543-NRA). CONST EQUIP BEGINNING 201FT FROM DER, 493FT LEFT OF CENTERLINE, UP TO 36FT AGL/50FT MSL (2020-AWP-2466/2467/2468/2469/2470/2473/2474/2476-NRA), CONST EQUIP BEGINNING 406FT FROM DER, 423FT RIGHT OF CENTERLINE, UP TO 36FT AGL/48FT MSL (2020-AWP-2488/2489/2490/2491/2492/2537/2538-NRA). CONST EQUIP BEGINNING 458FT FROM DER, 457FT LEFT OF CENTERLINE, UP TO 36FT AGL/48FT MSL (2020-AWP-2475/2483/2484/2498-NRA). CONST EQUIP BEGINNING 498FT FROM DER, LEFT AND RIGHT OF CENTERLINE, UP TO 36FT AGL/48FT MSL (2020-AWP-2479/2480/2481/2485/2486/2487/2493/2494/2495/2496/2497-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2410311206-2503151206EST
10/31/241204Z !FDC 4/6812 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
RNAV (GPS) Y RWY 12, AMDT 3A...
LNAV/VNAV DA 401/HAT 392 ALL CATS, VISIBILITY ALL CATS RVR 4000. LNAV MDA 500/HAT 491 ALL CATS, VISIBILITY CAT C/D RVR 5000. VDP AT 1.02NM TO RW12. TEMPORARY CRANE 190 MSL 1670FT NE OF RWY 12 (2021-AWP-18824-OE).
2410311204-2503011204EST
10/31/241204Z !FDC 4/6811 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
RNAV (GPS) RWY 10R, AMDT 2...
LNAV MDA 500/HAT 491 ALL CATS. VDP AT 0.89 MILES TO CAXIN. TEMPORARY CRANE 190 MSL 3983FT SW OF RWY 10R (2021-AWP-18824-OE).
2410311204-2503011204EST
10/31/241204Z !FDC 4/6810 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
RNAV (RNP) Z RWY 12, AMDT 2...
RNP 0.15 DA 360/HAT 351 ALL CATS, VISIBILITY ALL CATS RVR 3000. TEMPORARY CRANE 190 MSL 1670FT NE OF RWY 12 (2021-AWP-18824-OE).
2410311204-2503011204EST
10/30/242314Z !FDC 4/6463 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
ILS OR LOC RWY 30, AMDT 31...
ILS RWY 30 (SA CAT I), AMDT 31...
ILS RWY 30 (CAT II AND III), AMDT 31....
MISSED APPROACH: CLIMB TO 4000 THEN RIGHT TURN DIRECT OAK VOR/DME AND HOLD,
SAU VOR OUT OF SERVICE. 2410302314-2411302314EST
10/30/242314Z !FDC 4/6456 OAK SID METRO OAKLAND INTL, OAKLAND, CA.
NIMITZ FIVE DEPARTURE...
NUEVO EIGHT DEPARTURE...
SILENT THREE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
SAU VOR OUT OF SERVICE.
2410302314-2411302314EST
9/12/241843Z !FDC 4/4542 OAK SID METRO OAKLAND INTL, OAKLAND, CA.
SALAD FIVE DEPARTURE...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SGD TACAN OUT OF SERVICE. 2409121843-2504241843EST
9/12/241843Z !FDC 4/4540 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
ILS OR LOC/DME RWY 28R, AMDT 37A...
MISSED APPROACH: CLIMB TO 4000 DIRECT SAU VOR/DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 4000,
SGD TACAN OUT OF SERVICE. 2409121843-2504241843EST
9/3/241056Z !FDC 4/9044 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
RNAV (RNP) Z RWY 30, AMDT 3B...
RNP 0.11 DA 283/HAT 274 ALL CATS, VIS ALL CATS RVR 5000. RNP 0.30 DA 329/HAT 320 ALL CATS, VIS ALL CATS RVR 5000. DISREGARD INOP ALS NOTE. TEMPORARY CRANE 129 MSL 3441FT N OF RWY 30 (2023-AWP-3890-NRA), TEMPORARY CRANE 129 MSL 3549FT N OF RWY 30 (2023-AWP-3893-NRA).
2409031056-2501151056EST
7/8/241336Z !FDC 4/7896 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
VOR RWY 10R, AMDT 10A...
VDP NA,
OAK DME OUT OF SERVICE. 2407081336-2411131336EST
7/8/241336Z !FDC 4/7895 OAK SID METRO OAKLAND INTL, OAKLAND, CA.
COAST NINE DEPARTURE...
NUEVO EIGHT DEPARTURE...
OAKLAND SIX DEPARTURE...
QUAKE TWO DEPARTURE...
SKYLINE ONE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OAK DME OUT OF SERVICE. 2407081336-2411131336EST
7/8/241336Z !FDC 4/7894 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
ILS OR LOC RWY 12, AMDT 8B...
ILS OR LOC/DME RWY 28R, AMDT 37A...
ILS RWY 12 (SA CAT I), AMDT 8B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
OAK DME OUT OF SERVICE. 2407081336-2411131336EST
4/30/241256Z !FDC 4/6624 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
RNAV (RNP) Z RWY 28R, AMDT 2...
RNP 0.11 DA 395/HAT 388 ALL CATS, VISIBILITY ALL CATS RVR 3500. RNP 0.30 DA 439/HAT 432 ALL CATS.
2404301256-2604301256EST
4/30/241256Z !FDC 4/6623 OAK IAP METRO OAKLAND INTL, OAKLAND, CA.
RNAV (RNP) Z RWY 28L, AMDT 2...
RNP 0.15 DA 405/HAT 396 ALL CATS, VISIBILITY ALL CATS RVR 6000. RNP 0.30 DA 442/HAT 433 ALL CATS.
2404301256-2604301256EST
Yes
ALL
PORT OF OAKLAND
530 WATER ST.
OAKLAND, CA 94607
Phone: 510-563-3300
MATT DAVIS
SAN FRANCISCO BAY OAKLAND INTL ARPT
OAKLAND, CA 94621
Phone: 510-563-6436
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
OAK
--
--
N/A
Yes - Lighted
No
Yes
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10L/28R

5457 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 10L Runway 28R
True Heading 112°292°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 43' 50"N 37° 43' 29"N
Longitude 122° 13' 20"W 122° 12' 17"W
Elevation 6' 6'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10R/28L

6213 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 10R Runway 28L
True Heading 112°292°
Traffic Pattern Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 43' 43"N 37° 43' 20"N
Longitude 122° 13' 33"W 122° 12' 22"W
Elevation 8' 8'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No
Runway End Identifier Lights Yes No

Runway 12/30

10520 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 12 Runway 30
True Heading 130°310°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 43' 12"N 37° 42' 05"N
Longitude 122° 14' 32"W 122° 12' 51"W
Elevation 8' 9'
Threshold Crossing Height 70 ft. AGL 71 ft. AGL
Visual Glide Path Angle 2.75° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 15/33

3376 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
65,000lbs
100,000lbs
--
  Runway 15 Runway 33
True Heading 164°344°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 44' 25"N 37° 43' 53"N
Longitude 122° 13' 22"W 122° 13' 11"W
Elevation 1' 4'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BIRDS ON & INVOF ARPT.
A110-11RWYS 30, 28R AND RWY 28L DIST RMNG SIGNS L SIDE.
A110-12FOR NOISE ABATEMENT INFO CTC NOISE ABATEMENT OFC AT (510) 563-6463.
A110-15RWY 15/33 CLSD TO ACR ACFT.
A110-17PREFERENTIAL RWY USE PROGRAM IN EFFECT 2200-0600. NORTH FLD PREF ARR RWY 28L, NORTH FLD PREF DEP RWYS 10R OR 28R. IF THESE RWYS UNACCEPTABLE FOR SAFETY OR ATC INSTRN THEN RWY 12/30 MUST BE USED.
A110-2024 HR NOISE ABATEMENT PROCEDURE - TBJT AND TURBOFAN PWRD ACFT, TURBOROPS OVER 17,000 LBS, FOUR-ENGINE RECIPROCATING PWRD ACFT, AND SURPLUS MIL ACFT OVER 12,500 POUNDS SHOULD NOT DEP RWYS 28L & 28R OR LAND ON RWYS 10R & 10L.
A110-22TWY A, E, G, H BTN RWY 28R AND TWY C MAX ACFT WT 150,000 LBS.
A110-23TWY G & H BTN RWY 28L & 28R: MAX ACFT WT 12,500 LBS.
A110-24TWY P MAX ACFT WT 116,000 LBS SINGLE; 190,000 LBS DUAL; 305,000 LBS DUAL TANDEM; 735,000 LBS DOUBLE DUAL TANDEM.
A110-25TWY C BTN RWY 28R & TWY G AND TWYS B, J, AND D MAX ACFT WT 861,000 LBS.
A110-26TWY C BTN TWY G & J MAX ACFT WEIGHT 90,000 LBS SINGLE; 144,000 LBS DUAL; 257,000 LBS TANDEM.
A110-27TWY C BTN TWY J & F MAX ACFT WEIGHT 76,000 LBS SINGLE; 115,000 LBS DUAL; 257,000 LBS TANDEM (DUAL TANDEM NA).
A110-28TWY K BTN TWY D & INT TWYS F, L, K MAX ACFT WEIGHT 56,000 LBS SINGLE; 70,000 LBS DUAL; 130,000 LBS TANDEM.
A110-29TWY K BTN TWY J AND INT TWYS F, L, K MAX ACFT WT 33000 LBS SINGLE; 45000 LBS DUAL; TANDEM NA.
A110-3400 FT BY 220 FT BLAST PAD RWY 12 AND RWY 30.
A110-30UNDERLIES CLASS B ASP, BE AWARE OF SPEEDS ON ARR AND DEP.
A110-6NOISE ABATEMENT PROCS N/A IN EMERGS OR WHENEVER RWY 12/30 IS CLSD DUE TO MAINT, SAFETY, WINDS OR WX.
A110-7ACFT WITH EXPERIMENTAL OR LTD CERTIF HAVING OVER 1000 HORSEPOWER OR 4000 LBS ARE RSTRD TO RWY 12/30.
A110-9100 FT LGTD MICROWAVE ANT TWR LCTD 1320 FT WSW OF OAK VORTAC; S OF UPWIND END OF RWY 28L.
SAN FRANCISCO BAY OAKLAND INTL (ICAO: KOAK, IATA: OAK) is a public airport located in OAKLAND, CA.
