KOAJ
ALBERT J ELLIS
PublicPUB

10 miles NW of JACKSONVILLE, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 49' 45"N 77° 36' 44"W
93' MSL
1093' MSL
08W
JET A, 100LL
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
4/17/25-5/15/25
KOAJ VFR
2:56 AM EDT
Overcast 8,000'
10sm
60°F
55°F
29.95"Hg
Calm
AO2 SLP144 T01560128 $
METAR KOAJ 140656Z AUTO 00000KT 10SM OVC080 16/13 A2995 RMK AO2 SLP144 T01560128 $
+ Add Your Business

KOAJ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 132.65

ATIS

ATIS
910 324-5233
 124.475

Clearance Delivery

CD/P
 125.4

Ground

GND/P
 125.4

Tower

LCL/P
 132.65

FAA A/FD Pages

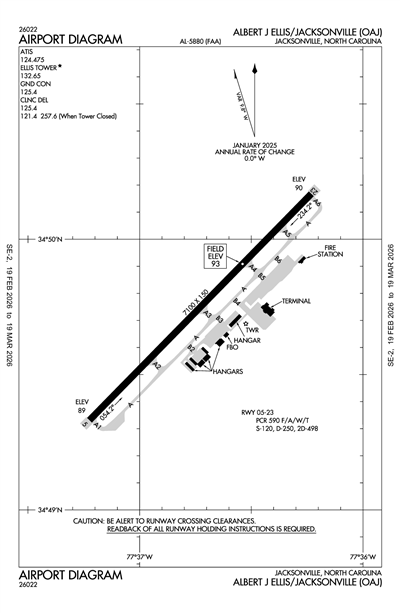

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KOAJ
Tue, 10/14 1:35 AM EDT
Tue, 10/14 2:00 AM EDT - Wed, 10/15 2:00 AM EDT
VFR
11:00 PM EDT - 2:00 AM EDT
Broken 3,500'
6sm
010° 6kts
MVFR
6:00 PM EDT - 11:00 PM EDT
Overcast 2,000'
6sm
360° 9kts
MVFR
10:00 AM EDT - 6:00 PM EDT
Broken 1,500'
Scattered 900'
6sm
340° 9kts
MVFR
6:00 AM EDT - 10:00 AM EDT
Broken 2,500'
6sm
320° 5kts
VFR
2:00 AM EDT - 6:00 AM EDT
Broken 4,000'
Scattered 2,500'
6sm
VRB° 4kts
TAF KOAJ 140535Z 1406/1506 VRB04KT P6SM SCT025 BKN040
   FM141000 32005KT P6SM BKN025
   FM141400 34009KT P6SM SCT009 BKN015
   FM142200 36009KT P6SM OVC020
   FM150300 01006KT P6SM BKN035 AMD LTD TO CLD VIS AND WIND
KOAJ
EffectiveExpiresCategoryNOTAM
Domestic
10/7/25
1224Z
11/13/25
0500Z
!OAJ 10/003 OAJ TWY A BTN TWY A2 AND TWY A3 CLSD EXP BACK TAX RWY 05/23 2510071224-2511130500
10/6/25
1200Z
11/13/25
2200Z
!OAJ 10/001 OAJ TWY A BTN TWY A2 AND TWY A3 CLSD 2510061200-2511132200
9/26/25
1432Z
11/10/25
1431Z
!OAJ 09/008 OAJ OBST TOWER LGT (ASR 1008386) 344844.00N0772647.00W (8.2NM E OAJ) 286.4FT (238.2FT AGL) U/S 2509261432-2511101431
9/14/25
0044Z
10/19/25
2359Z
!OAJ 09/004 OAJ OBST TOWER LGT (ASR 1222299) 344744.80N0772919.70W (6.3NM ESE OAJ) 311.7FT (269.0FT AGL) U/S 2509140044-2510192359
9/14/25
0044Z
10/19/25
2359Z
!OAJ 09/003 OAJ OBST TOWER LGT (ASR 1222298) 344745.90N0772922.60W (6.3NM ESE OAJ) 354.3FT (311.7FT AGL) U/S 2509140044-2510192359
9/14/25
0044Z
10/19/25
2359Z
!OAJ 09/002 OAJ OBST TOWER LGT (ASR 1222297) 344747.10N0772925.50W (6.2NM ESE OAJ) 311.7FT (269.0FT AGL) U/S 2509140044-2510192359
7/7/25
2025Z
11/4/25
2024Z
!OAJ 07/006 OAJ OBST TOWER LGT (ASR 1064951) 344847.20N0773031.50W (5.1NM E OAJ) 355.0FT (310.0FT AGL) U/S 2507072025-2511042024
4/15/25
1445Z
10/31/25
2300Z
!OAJ 04/013 OAJ TWY A WIP GRASS CUTTING ADJ 2504151445-2510312300
4/15/25
1443Z
10/31/25
2300Z
Runway!OAJ 04/012 OAJ RWY 05/23 WIP GRASS CUTTING ADJ 2504151443-2510312300
Yes
0500-2400
ONSLOW COUNTY
234 NW CORRIDOR BLVD
JACKSONVILLE, NC 28540
Phone: 910-347-4717
MITCH SPRUNGER
264 ELLIS AIRPORT RD
RICHLANDS, NC 28574
Phone: 910-324-1100
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
OAJ
--
ACTVT MALSR RWY 05; REIL RWY 23; PAPI RWY 05 & 23; HIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

7100 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
51 /F/A/W/T
120,000lbs
211,000lbs
388,000lbs
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 49' 20"N 34° 50' 10"N
Longitude 77° 37' 13"W 77° 36' 14"W
Elevation 89' 90'
Threshold Crossing Height 55 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1180 DEG TURNS ON RWY 05/23 NA FOR ACFT 60000 LBS AND OVER.
A110-3CLSD TO ALL MIL ACFT OVER 17000 LBS FOR ACR RAMP OPNS EXCP 24 HR PPR. CALL AMGR 910-324-1100 OR 910-989-3168.
A110-5INDEX B ARFF COVERAGE PROVIDED DURING COMMERCIAL AIR TRC OPS. INDEX C AVAILABLE UPON REQ.
A110-6FIELD CONDITIONS NOT MONITORED 0000LCL-0500LCL DAILY.
A110-7FOR CD WHEN ATCT CLSD, CTC WILMINGTON APCH AT 910-815-4676, OR WHEN APCH CLSD CTC WASHINGTON ARTCC AT 703-771-3587.
ALBERT J ELLIS (ICAO: KOAJ, IATA: OAJ) is a public airport located in JACKSONVILLE, NC.
