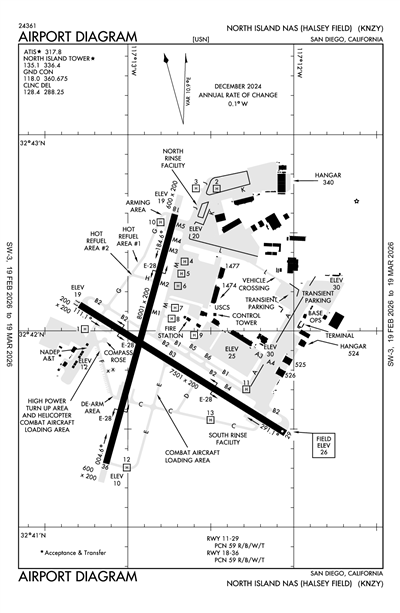

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNZY
NORTH ISLAND NAS (HALSEY FLD)
PrivatePVT

3 miles SW of SAN DIEGO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 41' 54"N 117° 12' 47"W
26' MSL
1026' MSL
11E
None Listed
SAN DIEGO (SAN)
LOS ANGELES
LOS ANGELES (ZLA)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KNZY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Clearance Delivery

CD/P
 128.4

Emergency

EMERG
 121.5

Ground

GND/P
 118.0

Tower

LCL/P
 135.1

Terminal Area Forecast

No TAF is available for this location.
KNZY
Domestic
1/5/251500Z !NZY 01/001 NZY AIRSPACE SEE MZB 01/023 UAS 2501051500-2601010200
Military
1/14/252040Z !KNZY M0055/25 NZY RWY 18/36 CLSD FOR MAINT. 1430Z 21 JAN-0100Z 24 JAN (0630L-1700L 21-23 JAN); 1430Z 27 JAN-0100Z 31 JAN (0630L-1700L 27-30 JAN); 1430Z 03 FEB-0100Z 07 FEB (0630L-1700L 03-06 FEB); 1430Z 10 FEB-0100Z 14 FEB (0630L-1700L 10-13 FEB) 2501142040-2502140100
1/14/252038Z AERODROME MODIFIED ATC HOURS FOR TENANT AND CARRIER DIVERT ONLY 1600Z 25 JAN-0759Z 27 JAN (0800L-2359L 25-26 JAN); 1600Z 01 FEB- 0759Z 03 FEB (0800L-2359L 01-02 FEB); 1600Z 08 FEB-0759Z 10 FEB (0800L-2359L 08-09 FEB); 1600Z 15 FEB- 0759Z 16 FEB (0800L-2359L 15 FEB).
1/14/252036Z AERODROME MODIFIED ATC HOURS FOR CARRIER DIVERT ACFT ONLY 1800Z 17 JAN-0759Z 21 JAN (1000L- 2359L 17 -20 JAN); OPENING (0630L) 21 JAN THEN AS PUBLISHED.
1/14/252032Z !KNZY M0052/25 NZY RWY 11/29 CLSD FOR MAINT. RUBBER REMOVAL 1430Z 30 JAN-0100Z 31 JAN (0630L-1700L 30 JAN) 2501142032-2501310100
1/14/252026Z !KNZY M0051/25 NZY TWY G CLSD FOR MAINT. 1430Z 01 FEB-0100Z 02 FEB (0630L-1700L 01 FEB). 2501142026-2502020100
1/14/252017Z !KNZY M0050/25 NZY RWY 11/29 CLSD FOR MAINT. 1430Z 31 JAN-0100Z 01 FEB (0630L-1700L 31 JAN) . 2501142017-2502010100
1/14/252015Z !KNZY M0049/25 NZY RWY 18/36 CLSD FOR MAINT. 1430Z 30 JAN-0100Z 31 JAN (0630L-1700L 30 JAN). 2501142015-2501310100
1/14/252012Z RWY 18/36 PAPI UNAVAILABLE DUE TO MAINT. 21 JAN - 04 FEB.
1/14/251824Z AERODROME ARRESTING GEAR MAINTANCE 15 JAN RUNWAY 18 LONG FIELD GEAR (CHARILE) 1500Z-1630Z (0700L-0830L). RUNWAY 18 SHORT FIELD GEAR (DELTA) 1630Z-1800Z (0830L-1000L).
1/13/251817Z AERODROME CIRCLING EXCEPT LOC/DME A AND LOC/DME B SIAPS CAT A: 620-1 594 (600-1) CAT B: 660-1 634 (700-1). UNTIL 01 FEB.
1/13/251815Z V0026/25 NOTAMC V0009/25
1/13/251815Z AERODROME HI-TACAN Z RWY 29 S-29 CAT CDE: 620-1¼ 594 (600-1¼). WHEN ALS INOP INCREASE VIS TO 1¾ MILES.
1/13/251814Z AERODROME LOC/DME A CIRCLING CAT AB: 860-2½ 834 (900-2½) CAT C: 940-2¾ 914 (1000-2¾) CAT D: 940-3 914 (1000-3). UNTIL 01 FEB.
1/13/251813Z V0024/25 NOTAMC V0021/25
1/13/251813Z AERODROME LOC/DME B CIRCLING CAT AB: 860-2 834 (900-2) CAT C: 940-2¾ 914 (1000-2¾) CAT D: 940-3 914 (1000-3). UNTIL 01 FEB.
1/13/251812Z V0022/25 NOTAMC V0008/25
1/13/251807Z V0020/25 NOTAMC V0007/25
1/13/251807Z V0019/25 NOTAMC V0006/25
1/13/251807Z V0018/25 NOTAMC V0005/25
1/13/251806Z AERODROME PAR W/O GS RWY 29 STRAIGHT-IN CAT AB: 620-⅝ 594 (600-⅝) CAT CDE: 620-1¼ 594 (600-¼). WHEN ALS INOP INCREASE CAT AB VIS TO 1 MILE; CAT CDE VIS TO 1¾ MILES. UNTIL 01 FEB.
1/13/251803Z V0016/25 NOTAMC V0004/25
1/13/251802Z AERODROME ASR RWY 29 STRAIGHT-IN CAT AB: 620-⅝ 594 (600-⅝) CAT CDE: 620-1¼ 594 (600-1¼). WHEN ALS INOP INCREASE CAT AB VIS TO 1 MILE; CAT CD VIS TO 1 ¾ MILES. UNTIL 01 FEB.
1/13/251801Z V0014/25 NOTAMC V0003/25
1/13/251801Z AERODROME TACAN Y RWY 29 MDA: CAT AB: 620-⅝ 594 (600-⅝), CAT CD: 620-1¼ 594 (600-1¼). WHEN ALS INOP INCREASE CAT AB VIS TO 1 MILE; CAT CD VIS TO 1 ¾ MILES.
1/13/251800Z V0012/25 NOTAMC V0002/25
1/13/251756Z AERODROME UNMANNED ACFT OPERATIONS IVO PLNU CAMPUS (32.7178° N, 117.2514° W) SFC TO 150FT AGL, 15 JAN 1700Z- 16 JAN 0100Z (15 JAN 0900L-1700L).
1/6/252216Z AERODROME RNAV RNP APPROACHES FOR RWY 36 AND RWY 29 NOT AVAILABLE UNTIL 28FEB.
1/2/252048Z AERODROME PILOT CONTROLLED LIGHTING AVAILABLE USING FREQUENCY 122.8
Yes
ALL
1430Z++ MON- 0600Z++ SAT; 1600Z++ SAT- 0600Z++ SUN; 1600Z++ SUN- 0600Z++ MON. CLSD 0200Z++ DAY PRIOR TO 1430Z++ DAY FOLLOWING ALL FEDERAL HOLIDAYS. SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STA NORTH ISLAND
SAN DIEGO, CA 92135
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
NZY
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 11/29

7501 ft. x 200 ft.

PEM
NONE
HIGH
59 /R/B/W/T
--
--
--
--
  Runway 11 Runway 29
True Heading 122°302°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 42' 08"N 32° 41' 29"N
Longitude 117° 13' 17"W 117° 12' 02"W
Elevation 19' 26'
Threshold Crossing Height -- 46 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 18/36

8001 ft. x 200 ft.

PEM
NONE
HIGH
59 /R/B/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 195°15°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 42' 36"N 32° 41' 20"N
Longitude 117° 12' 42"W 117° 13' 07"W
Elevation 19' 10'
Threshold Crossing Height 49 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALSF
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10FUEL: EXP REFUL DELAYS. 100LL, J5.
A110-11FLUID: SP PRESAIR.
A110-12OIL: O-128-148-156-RSTD OIL ANALYSIS AVBL, PRIOR COORD RQR.
A110-13TRAN ALERT: OPR 1400-0600Z WKD AND 1600-0600Z WKEND; (DT- 1300-0500Z WKD AND 1500-0500Z WKEND). NO TRAN MAINT/LTD SVC. LOX NOT AVAILABLE.
A110-14TRAN ALERT: TRAN AIRCREW MUST REMAIN WITH ACFT TO PROVIDE TECHNICAL DRCT/ASSISTANCE IN SVCG. AIR TRML/TRAN LINE COORD ALL REFUL REQ. ARR ACFT PASS SVC REQ TO LINEMAN. ALL TRAN PILOTS CK IN WITH ODO, BASE OPS BLDG 516, UPON ARR.
A110-15JASU: 2(GTC-85)(NC-8)
A110-16A-GEAR: SHORT-FLD A-GEAR RWY 36 NMLY DE-RIGGED. LONG-FLD A-GEAR RWY 36 NMLY DE-RIGGED. SHORT-FLD A-GEAR RWY 29 DE-RIGGED. LONG-FLD A-GEAR RWY 29 NMLY RIGGED.
A110-18NS ABTMT: STRICT COMPLIANCE RQR.
A110-19CAUTION: BIRD HAZ MAY-OCT, PARTICULARLY AT DEP END RWY 29.
A110-20CSTMS/AG/IMG: CSTMS AVBL WITH 2 HR NTC 1600-0100Z++ MON-SAT. MIN 4 HR NTC RQR 0100-1600Z++.
A110-22RADAR: SEE TERMINAL FLIP FOR RADAR MINIMA.
A110-23LOC: 18, 29
A110-24CLSD 0600-1600Z++ SAT-SUN, 0600-1430Z++ MON, CLSD 0200Z++ DAY PRIOR TO 1430Z++ DAY FLW ALL FEDERAL HOL. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-25RSTD: CALL ODO BTN 1300-0500Z WKDAYS DSN 735-8233, C619-545-8233 FOR PPR. LCL FLT DRG RON PROHIBITED.
A110-26CAUTION: TWY DELTA AND TWY FOXTROT NOT LIT FOR NIGHT OPERATIONS.
A110-27CAUTION: RWY 11/29 SFC AREA BTN THE RWY EDGE LNS AND REDLS, APRXLY 50 FT ON EITHER SIDE, IS CRACKED AND HAS LOOSE GRVL. WRY 11/29 EDGE LGTS LOCATED 50 FT OUTBOARD OF RUNWAY EDGE LNS, AND ARE NOT WI 10 FT OF THE MKD RWY EDGE. PILOTS SHOULD EXERCISE CAUTION TRANSITING THE AREA BETWEEN THE RWY EDGE LNS AND REDLS.
A110-28CAUTION: RWY 18/36 RWY DIST MKRS LESS THAN THE REQD 50 FT OFF THE RWY EDGE.
A110-29CAUTION: TWY L EDGE LGTS NOT WI 10 FT OF MKD TWY EDGE.
A110-30FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-31CTC AMGR 619-545-8243/619-778-2074 FOR INFO CONCERNING CIVIL ACFT LDG PMTS.
A110-32RSTD: MV-22, CMV-22, F-35B ACFT VTOL OPS FROM ANY RWY, TWY OR HELIPAD ARE PROHIBITED, EXC WHEN AN EMERG SITUATION DICTATES. CMV-22 VTOL OPS (FCF) AUTH ON TWY ECHO BETWEEN TWY CHARLIE AND HELIPAD 12.
A110-33CAUTION: DIST BTN TWY B1 CNTRLN AND TWY B2 CNTRLN IS 200 FT WHICH IS 37.5 FT SHORT OF THE RQRD 237.5 FT. NO TWY LGTS ON TWY H AND TWY D.
A110-34SERVICE: AIRFIELD FIREFIGHTING CAPABILITY CAT-2.
A110-35TSNT PILOT WITH DV CODE 6 OR HIGHER CTC BASE OPS ON 355.5 TO UPDATE ETA WHEN PRACTICAL.
A110-4MISC: VIP/LOGISTIC FLT CTC BASE OPS PRIOR TO LDG.
A110-5TFC PAT: USE MAX EXTERIOR LGT BLW 10,000' WITHIN 10 NM. ALL TRAN ACFT LTD TO FULL STOP ONLY. TOUCH-AND-GO/LO APCH NOT AVBL. TRAN ACFT SECTION APCH NOT AUTH. REDUCED RWY SEPARATION STD IN EFF USN/USMC ACFT.
A110-6CAUTION: EXTV VFR COPTER OPR SFC-500' VCNTY ARPT AND SFC-2000' 8 NM SE. LGT CIV ACFT CLIMB/DESCEND THRU RY 29 FINAL APCH CRS BYD 6 DME ENTER/DEP SAN DIEGO CLASS B AIRSPACE VFR CORRIDOR. AVOID CNTRLINE LGT DUR RY 29 OR RY 36 ARRESTMENT TO PREVENT TAILHOOK BOUNCE. HVY VEH TFC CROSS TWY L AND TWY A.
NORTH ISLAND NAS (HALSEY FLD) (ICAO: KNZY, IATA: NZY) is a private airport located in SAN DIEGO, CA.
