KNXP
TWENTYNINE PALMS SELF
Private
PVT
9 miles NW of TWENTYNINE PALMS, CA
View on
Map
Status
Operational
Coordinates
34° 17' 46"N
116° 09' 44"W
Elevation
2051' MSL
Pattern Alt
3051' MSL
Mag Variation
11E
Fuel
None Listed
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
10/31/24-11/28/24
KNXP
VFR
3:56 AM PST
RAW
Clear
Viz
10sm
Temp
42°F
Dew
9°F
Pres
30.11"Hg
Wind
330° 4kts
RMK
AO2 SLP176 T00561128 10094 20050 58004 $
KNXP 091156Z AUTO 33004KT 10SM CLR 06/M13 A3011 RMK AO2 SLP176 T00561128 10094 20050 58004 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KNXP FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
--
No communication frequencies available for this airport.

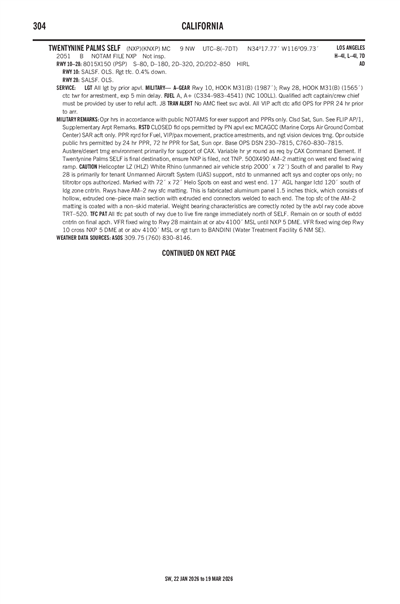

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KNXP
RAW
Reported
Fri, 11/8 7:15 AM PST
Valid
Fri, 11/8 7:00 AM PST - Sat, 11/9 7:00 AM PST
VFR
7:00 AM PST - 9:00 AM PST
Sky Clear
Viz
6sm
Pres
30.24"Hg
Wind
300° 6kts
VFR
Becoming
9:00 AM PST - 6:00 PM PST
Sky Clear
Viz
6sm
Pres
30.03"Hg
Wind
330° 6kts
LIFR
Becoming
6:00 PM PST - 7:00 AM PST
Sky Clear
Viz
0.44sm
Pres
30.00"Hg
Wind
VRB° 3kts
TAF KNXP 0815/0915 30006KT 9999 SKC QNH3024INS
BECMG 0817/0818 33006KT QNH3003INS
BECMG 0902/0904 VRB03KT QNH3000INS T04/0915Z T25/0822Z LAST NO AMDS AFT 0715 NEXT 0814
KNXP
Military
10/15/24
1719Z
!KNXP M0031/24 NXP TWY D
CLSD
FOR MAINTENANCE 2410151719-2411082359
1/22/24
2317Z
!KNXP M0002/24 NXP APRON HELO RAMP
CLSD
DUE TO CONSTRUCTION 2401222317-2510312359
ATC Tower
No
Attendance
ALL
OPR HRS IAW PUBL NOTAMS FOR EXER SPT AND PPRS ONLY. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
Owner
US NAVY
OCEANOGRAPHIC OFC CODE 3142
WASHINGTON, DC 20373
Manager
N/A
FSS
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
NOTAM
NXP
Light Schedule
--
Lights
ALL LGTG BY PRIOR APVL.
ALL LGTG BY PRIOR APVL.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
None
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 10/28
Dimensions
8015 ft. x 150 ft.
Surface Type
Surface Cond
PSP
Treatment
NONE
Rwy Edge Lgts
HIGH
Pavement Class
Single Wheel
80,000lbs
Double Wheel
180,000lbs
Double Tandem
320,000lbs
Dual Dbl Tand
850,000lbs
Runway 10
Runway 28
True Heading
112°
292°
Traffic Pattern
Right
Left
Markings
Markings Condition
Latitude
34° 18' 01"N
34° 17' 31"N
Longitude
116° 10' 28"W
116° 08' 59"W
Elevation
2,051'
2,018'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
SALSF
SALSF
Centerline Lights
Runway End Identifier Lights
No
No
A110-10
RSTD: CLSD FLD OPR PERM BY PN APVL EXC MCAGCC SAR ACFT. PPR REQ FOR FUEL, VIP/PAX MOVEMENT, PRACTICE ARRESTMENTS, AND NVD TRNG. OPR OUTSIDE PUBL HR PERMS 24 HR PPR AND 72 HR PPR SAT AND SUN. BASE OPS DSN 230-7815,C760-830-7815.
A110-16
LGT: ALL LGT BY PRIOR APVL.
A110-17
A-GEAR: RWY 10, HOOK M31(B) (1987'); RWY 28, HOOK M31(B) (1565'); CTC TWR FOR ARRESTMENT, EXP 5 MIN DELAY.
A110-18
FUEL: QUALIFIED ACFT CAPTAIN/CREW CHIEF MUST BE PROVIDED BY USER TO REFUL ACFT. J8.
A110-19
TRAN ALERT: NO AMC FLEET SVC AVBL. ALL VIP ACFT CTC AIRFIELD OPS FOR PPR 24 HOURS PRIOR TO ARR.
A110-27
CAUTION: HELICOPTER LZ (HLZ) WHITE RHINO (UAS STRIP 2000' X 72') S OF AND PARALLEL TO RWY 28 IS PRIM FOR TENANT UAS SUPPORT, RSTD TO UAS AND COPTER OPS ONLY; NO TILTROTOR OPS AUTH. MRKD WITH 72' X 72' HELO SPOTS ON E AND W END. 17' AGL HGR LCTD 120 FT S OF LZ CNTRLN.
A110-28
CAUTION: RYS HAVE AM-2 RY SFC MATTING. THIS IS FABRICATED ALUMINUM PANEL 1.5" THICK, WHICH CONSISTS OF HOLLOW, EXTRUDED, ONE-PIECE MAIN SEC WITH EXTRUDED END CONNECTORS WELDED TO EA END. THE TOP SFC OF AM-2 MATTING IS COATED WITH A NON-SKID MATERIAL.
A110-29
CAUTION: THE TOP SFC OF AM-2 MATTING IS COATED WITH A NON-SKID MATERIAL. WT BRG CHARACTERISTICS ARE CORRECTLY NOTED BY THE AVBL RWY CODE ABV TRT520.
A110-30
TFC PAT: ALL TFC PAT S OF RWY DUE TO LIVE FIRE RANGE IMMEDIATELY N OF SELF. REMAIN ON OR S OF EXTN RWY CNTRLINE ON FINAL APCH. VFR F/W TO RWY 28 MAINTAIN AT OR ABV 4100' MSL UNTIL NXP 5 DME. VFR F/W DEPARTURES RWY10 CROSS NXP 5 DME AT OR ABV 4100' MSL OR RIGHT TURN TO BANDINI (WATER TREATMENT FACILITY 6 NM SE).
A110-33
BEARING STRENGTH RWY 10/28: S80 T180 ST175 TT320 TDT850 TRT520.
A110-34
MISC: CLASS D AIRSPACE EFF NOTAM ONLY, OT CLASS G.
A110-35
500 FT BY 490 FT AM-2 MATTING ON WEST END F/W RAMP.
A110-36
WHEN ATCT CLSD, FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-7
RSTD: AUSTERE/ DESERT TRNG ENVIRONMENT PRIM FOR SUPPORT OF CAX. VARIABLE HR YR ROUND AS REQ BY CAX COMD ELEMENT. IF TWENTYNINE PALMS SELF IS FINAL DESTN, ENSURE NXP IS FILED, NOT TNP.
TWENTYNINE PALMS SELF (ICAO: KNXP, IATA: NXP) is a private airport located in TWENTYNINE PALMS, CA.
