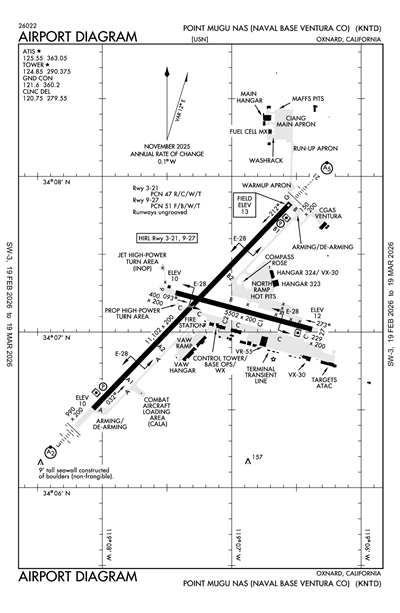

POINT MUGU NAS (NAVAL BASE VENTURA CO) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNTD
ICAO KNTDIATA NTDLocal NTD
POINT MUGU NAS (NAVAL BASE VENTURA CO)
PrivatePVT

0 miles N of OXNARD, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 07' 09"N 119° 07' 11"W
Elevation
13' MSL
Pattern Alt
1013' MSL
Mag Variation
12°E
Declination
12°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KNTD IFR
3:55 AM PST
Mist
Overcast 600'
5sm
53°F
52°F
30.00"Hg
050° 7kts
AO2 SLP159 T01170111 10133 20106 58003 PWINO $
METAR KNTD 041155Z AUTO 05007KT 5SM BR OVC006 12/11 A3000 RMK AO2 SLP159 T01170111 10133 20106 58003 PWINO $
+ Add Your Business

KNTD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.55
Hours: SAME AS TWR HRS.

Clearance

Clearance Delivery 120.75

Ground

POINT MUGU GROUND 121.6
1500-0700Z++, CLSD HOL, OT CTC LOS ANGELES CENTER

Tower

POINT MUGU TOWER 124.85
1500-0700Z++, CLSD HOL, OT CTC LOS ANGELES CENTER
POINT MUGU TOWER 126.2
1500-0700Z++, CLSD HOL, OT CTC LOS ANGELES CENTER, Secondary

Arrival

GUERA STAR 120.4

Approach

POINT MUGU APPROACH 128.65

Departure

POINT MUGU DEPARTURE 128.65

Center

POINT MUGU CENTER 135.5
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQ 135.5/327.1 (SANTA BARBARA RCAG) WHEN POINT MAGU APCH CTL (NTD) CLSD.

Flight Service

Flight Service 122.1
(HHR), COMMUNICATIONS PRVDD BY HAWTHORNE RADIO ON FREQS 122.1R/112.5T (FILLMORE RCO).

Emergency

Emergency 121.5

Terminal Area Forecast

KNTD
Wed, 3/4 2:24 AM PST
Wed, 3/4 2:00 AM PST - Wed, 3/4 11:00 PM PST
IFR
Temporary 2:00 AM PST - 7:00 AM PST
Mist
Broken 700'
4.97sm
Calm
VFR
2:00 AM PST - 10:00 AM PST
Scattered 700'
6sm
29.97"Hg
VRB° 6kts
VFR
10:00 AM PST - 12:00 PM PST
Scattered 27,000'
Scattered 1,000'
6sm
29.91"Hg
210° 7kts
VFR
12:00 PM PST - 11:00 PM PST
Sky Clear
6sm
29.91"Hg
250° 10kts
TAF AMD KNTD 0410/0507 VRB06KT 9999 SCT007 QNH2996INS
   TEMPO 0410/0415 8000 BR BKN007
   FM041800 21007KT 9999 SCT010 SCT270 QNH2990INS
   FM042000 25010KT 9999 SKC QNH2990INS AUTOMATED SENSOR METWATCH 0407 TIL 0414 TX19/0421Z TN09/0413Z AMD 1021 FS30243
KNTD
EffectiveExpiresCategoryNOTAM
Domestic
3/5/26
1700Z
3/5/26
2359Z
!NTD 02/001 NTD AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF NTD SFC-3500FT AGL ACFT CS FLC76 2603051700-2603052359
Military
3/4/26
0128Z
3/7/26
0128Z
M0085/26 NOTAMC M0078/26
3/3/26
1606Z
3/6/26
1606Z
M0084/26 NOTAMC M0082/26
3/3/26
1606Z
3/6/26
1606Z
M0083/26 NOTAMC M0081/26
3/2/26
1400Z
3/6/26
2100Z
QUIET HOURS 06 MAR 1100-1230L. NO GROUND TURNS, TAKEOFFS, TOUCH AND GO LANDINGS, PRACTICE APPROACHES OR OVERHEAD BREAKS. NO ARRIVALS, EMERGENCIES EXCEPTED.
2/19/26
2225Z
5/31/26
2359Z
Aerodrome!KNTD V0003/26 NTD AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT RNAV (GPS) RWY 21 - REVISED MINIMA FOR LPV DA* CAT ABCD 274-1/2 261 (300-1/2). * WHEN ALS INOP, INCREASE VIS TO 7/8 MILE. 2602192225-2605312359
2/19/26
2219Z
5/31/26
2359Z
Aerodrome!KNTD V0001/26 NTD AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT ILS-21 - REVISED MINIMA FOR S-ILS 21* CAT ABCDE 274-1/2 261 (300-1/2). * WHEN ALS INOP, INCREASE VIS TO 7/8 MILE. 2602192219-2605312359
2/12/26
1714Z
5/1/26
1400Z
TaxiwayTWY A2 CLSD TO HEAVY AND JET ACFT DUE TO PAVEMENT DETERIORATION AND ONGOING PRESERVATION EFFORTS. LIMITED EXCEPTIONS REQUIRE AFLD MGR APPROVAL.
2/2/26
1659Z
5/1/26
1400Z
Services!KNTD M0039/26 NTD SVC PRECISION APPROACH RADAR U/S RWY 3/21 2602021659-2605011400
2/2/26
1658Z
5/1/26
1400Z
AerodromeAERODROME WINDCONES NONSTD RWY 27/21 IMPROPERLY SITED AND RWY 09/03 MISSING.
2/2/26
1657Z
5/1/26
1400Z
Taxiway!KNTD M0036/26 NTD TWY B2 HOLD SIGN NORTHEAST SIDE AT RWY 3/21 NOT STD 2602021657-2605011400
2/2/26
1657Z
5/1/26
1400Z
Runway!KNTD M0035/26 NTD RWY 03 RTHL NOT STD MORE THAN MAX ALLOWABLE OUTAGE OF 3 LGHTS OUT 2602021657-2605011400
2/2/26
1656Z
5/1/26
1400Z
Runway!KNTD M0034/26 NTD RWY 03 PAPI U/S 2602021656-2605011400
12/9/25
1823Z
3/9/26
1800Z
CHANNEL ISLAND AIR NATIONAL GUARD RAMP FLOOD LIGHTING AND OBSTRUCTION LIGHTING FOR THE MAIN HANGAR INOP.
12/9/25
1820Z
3/9/26
1800Z
CHANNEL ISLAND AIR NATIONAL GUARD RAMP DOCK 1 AND DOCK 2 CLOSED.
Yes
1500-0700Z++
SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK AND AP/1A.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR FACILITY
POINT MUGU, CA 93042
Phone: 805-986-7577
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
NTD
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 03/21

11102 ft. x 200 ft.
ASPH
CONC
NONE
HIGH
47/R/C/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 44°224°
Traffic Pattern
Markings
Markings Condition
Latitude 34° 06' 30"N 34° 07' 50"N
Longitude 119° 08' 04"W 119° 06' 33"W
Elevation 10' 13'
Threshold Crossing Height 46 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALSF MALSR
Centerline Lights No No
Runway End Identifier Lights

Runway 09/27

5502 ft. x 200 ft.
ASPH
CONC
NONE
HIGH
51/F/B/W/T
--
--
--
--
  Runway 09 Runway 27
True Heading 105°285°
Traffic Pattern
Markings
Markings Condition
Latitude 34° 07' 15"N 34° 07' 01"N
Longitude 119° 07' 26"W 119° 06' 23"W
Elevation 10' 12'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-10OIL: O-128-148.
A110-11TSNT ALERT/AIR TRML: OPR 1400-0200Z++ MON-THU; 1400-0100Z++ ALTN FRI; CLSD ALTN FRI, WKEND AND HOL. TSNT ACFT LOADING/OFFLOADING REQ OUTSIDE PUBLD HRS CTC AFLD MGR 805-989-8003/4737 FOR APVL. LTD FLEET SVC (LAVATORY AVBL; NO POTABLE WATER; NO WET ICE; NO DRY ICE; NO OXY). LOX LTD. TSNT ACFT PRKG EXTREMELY LTD. MIN 24-HR PRIOR NOTICE RQRD FOR ACFT WITH ORDNANCE. ORDNANCE MUST BE SECURED BY DET PSNL OR AIRCREW PRIOR TO RFLG. NO TSNT MAINT/LTD SVC. TSNT ACFT MAINT/HGR SPACE EXTREMELY LTD TO NON-EXISTENT. NO DE-ICING AVBL.
A110-12RSTD: PPR FOR ALL TSNT ACFT. 72 HRS PN RQRD. ACFT THAT FAIL TO ARRIVE WI +/- 30 MIN OF ETA RISK BEING CN UNLESS PRIOR CDN/UPDATE IS MADE. SEND ALL PPR REQS VIA EMAIL TO NBVC_AFM@US.NAVY.MIL. ARPT HRS SUBJ CHG VIA NOTAM. AMC/NALO MSN RQR FLT ADVSY OR PRIOR COORD.
A110-15TFC PAT: REDUCED RWY SEPARATION STD IN EFF USN/USMC ACFT. RWY 21 DEP DO NOT COMMENCE TURNS TIL 500' AND 1/2 NM OFFSHORE. RWY 27 DEP DO NOT COMMENCE TURNS TIL 500'.
A110-16NS ABTMT - AVOID POPULATED AREAS WHEN POSSIBLE DUE TO EXTREME NOISE SENSITIVE AREA. PRO IN EFF 0400-1600Z++. EXP RWY 3 ARR AND RWY 21 DEP BTW 0400-0700Z++ JETS, AND 0600-0700Z++ ALL OTH ACFT, MON-SUN, AND FEDERAL HOL.
A110-17CSTMS/AG/IMG: CSTMS AVBL MON-FRI 1600-0700Z++ WITH MIN 24 HR PN. AGRICULTURE INSPN/INTL WASTE REMOVAL NOT AVBL; EXP INTL WASTE TO RMN OB TO NEXT APROP ARPT.
A110-18MISC - CAT E AIRSPACE EFF 0600-1400Z++.
A110-19CAUTION - EXTREME MID-AIR POTENTIAL DUE HI DENSITY VFR GENERAL AVN TFC IN VCNTY. CIV ARPT (CAMARILLO) 6 NM N UNCTL 0500-1500Z++ DLY. HI TERRAIN TO 1567' E OF FLD. BIRD WATCH CONDITION IS MODERATE TO SEVERE, DUE TO SEASONAL BIRD MIGRATION ANNUALLY FROM OCT 1 - APR 30. HANG GLIDER ACT VCNTY ROUND MT 4 NM NE SR-SS. ARPT PARADROP AREA ACTV DLY, 2-4 NM WEST OF FNA CRS RWY 21 BTWN 7-9 NM.
A110-22WKENDS, OCT-JAN, BASH SUPPORT ACT REMOVING WATERFOWL FR THE AIR IN MARSH AREAS S OF RWY 09/27 AND WI 700 FT OF RWY 21 EDGES/OVRN.
A110-23ANG - OPR HRS 1400-0600Z++, CLSD HOL. TSNT ALERT HRS 1500-2200Z++ MON-FRI, CLSD SAT, SUN, AND HOL. PPR RQRD FOR ALL TSNT ACFT ON CIANGS RAMP ONLY; USE DSN 893-7577/7578, C805-986-7577/7578.
A110-24ANG - TMPRY WAIVERS ON ANG RAMP: FIRE HYDRANT BOLLARDS EXIST ALONG THE EDGE OF THE APN; MODULAR AIRBORNE FFR SYS PIT TAXI LINES ARE NOT MKD IAW REG; PITS ARE ONLY USED DUR CONTINGENCY OPS, ALLOWING ACFT TO TAXI CLOSE TO FAC TO RELOAD RETARDANT; PAINTED TURN GUIDELINES BTN PRKG SPACES ARE NOT UNIFORM (DIST VARY FROM 160.5 FT TO 182.67 FT; CURRENT CONFIGURATION PLACES AGE EQPT BENEATH THE WG OF TURNING ACFT, WITHIN THE CLR ZONE AROUND THE PROP, AND NON-STD MARKINGS-NOSE WHEEL MARKINGS AND ACFT SPOT INDICATION.
A110-25BIRD/WILDLIFE AND ACFT STRIKE HAZ INFO: WILDLIFE HAZ EXISTS; PILOTS SHOULD RPT ALL BIRD OR MAMMAL SIGHTINGS TO TWR OR BOPS ON FREQ 305.6.
A110-26BIRD/WILDLIFE AND ACFT STRIKE HAZ INFO: DRG PHASE II, PILOTS CAN EXP BIRD WATCH COND TO BE MOD OR SEV; TKOFS/LNDGS WI 90 MIN OF OFFL SR/SS SHOULD ONLY HAPPEN IF IT IS MISSION ESNTL; AND IF POSS, TNG AND FRMN MISSIONS SHOULD AVOID TKOF/LNDG WITH 90 MIN OF THE OFFL SR/SS.
A110-27BIRD/WILDLIFE AND ACFT STRIKE HAZ INFO: PHASE I ALL DATES NOT DSGND AS PHASE II.
A110-28BIRD/WILDLIFE AND ACFT STRIKE HAZ INFO: PHASE II EFF 1 OCT THRU 15 APR; BIRD ACT IS INCRD DUR THESE MONTHS DUE TO THE MIGRATORY SEASON, THE PRI THREAT DUR THESE PDS CONSIST OF LRG QNTYS AND MORE FQT CONCENTRATION OF BIRDS IN ALL AREAS AROUND THE AFLD, AND AIRCREWS MUST BE AWARE OF HVY MIGRATORY FOWL DURG THESE TIMES.
A110-29BIRD WATCH COND SEVERE: WILDLIFE ACT ON OR IMT ABV THE ACTV RWY OR OTHER SPECIFIC LOC REPG HIGH POTENTIAL FOR STRIKES; SUPERVISION AND AIRCREWS MUST THOROUGHLY EVAL MISSION NEED BEFORE CONDUCTING OPNS IN AREAS UNDER COND SEVERE.
A110-30BIRD WATCH COND MODERATE: WILDLIFE ACT NEAR THE ACTV RWY OR OTHER SPECIFIC LOC REPG INCRD POTENTIAL FOR STRIKES; REQS INCRD VIGILANCE BY ALL AGENCIES AND SUPVRS AND CTN BY AIRCREWS.
A110-31BIRD WATCH COND LOW: WILDLIFE ACT ON OR AROUND THE AFLD REPG LOW POTENTIAL FOR STRIKES.
A110-32ACFT FLT LINE SECURITY IS LTD; PRIOR COORD REQD.
A110-33CAUTION: TWY E CLSD. TWY A2 OPEN TO PROP AND R/W, CLSD TO JET ENG ACFT.
A110-34CAUTION: TWY G HOLD PSN MARKINGS NSTD. VFR HOLD LINE ON TWY G NEAR PERIMETER ROAD INCORRECT. MARKINGS SHOULD INDICATE EDGE OF CTLD MOV AREA. ALL TFC MUST CTC MUGU TWR PRIOR TO XNG MOV AREA WHEN TVLG S ON TWY G TWD RWY 21.
A110-35TWY D CLSD.
A110-36TSNT ALERT - PRIOR CDN REQ FOR ACFT WITH ORDNANCE. ORDNANCE MUST BE SECURED BY DET PSNL OR AIRCREW PRIOR TO FUELING.
A110-37A-GEAR - RWY 3-21 LONG-FLD A-GEAR RIGGED; SHORT FLD DERIGGED, AVBL 15 MIN PN.
A110-38SERVICE: LGT - CARRIER DECK LGT AND MRKGS RWY 27; IFLOLS RWY 27. ROTG BCN NOT OPR WHEN ARPT CLSD.
A110-39SERVICE: FUEL - 5K GAL TRUCKS ONLY, NO HYDRANT FUELING. LARGE/HEAVY TSNT ACFT EXP RFLG DELAYS. HOT PITS NOT AVBL FOR TSNT ACFT.
A110-40RSTD - VTOL OPR FROM ANY RWY, TWY, APRON PROHIBITED EXC DECLARED EMERG. 180 DEG TURNS ON ASPH RWY SECTIONS PROHIBITED.
A110-41CAUTION - E-28 A-GEAR 25 FT FROM EDGE OF RWY, APRXLY 5 FT TALL.
A110-42MISC - LRG/HVY 4-ENG ACFT TAXI WITH INBOARD ENGS ONLY FOR FOD MITIGATION.
A110-43RSTD - CIV ACFT REQ VALID/APVD CIVIL AIRCRAFT LANDING PERMIT (CALP); FOREIGN ACFT REQ NAVY AIRCRAFT LANDING AUTHORIZATION NUMBER (NALAN); CTC AIRFIELD MGR C805-989-8003/8521. NEW CALP RQRS 30 DAYS PRIOR NOTICE FOR COORD/LEGAL REVIEW.
A110-7JASU: 3(NCPP-105) 8(A/M47A-4) 9(GTC-85).
A110-8FUEL: J5, J8.
A110-9FLUID - SP LHOX LOX.
A16ALSO X7578.
A17-M1SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK AND AP/1A.
A33-03/21_SURFFIRST 500 FT RWY 03 AND FIRST 4100 FT RWY 21 CONC; MIDDLE 6500 FT RWY 03/21 IS POROUS FRICTION SFC.
A33-09/27_SURFFIRST 1250 FT RWY 27 CONC; REMAINDER RWY 09/27 POROUS FRICTION SFC.
A43-21UNUSBL BYD 6 DEGS LEFT & 7 DEGS RIGHT OF CNTRLN.
A49-03OLS
A49-21SF, OLS
A49-27OLS
A81-APTAVBL ONLY DURING HRS OF OPERATION.
E60-03_E28HOOK E28(B) (2500')
E60-09_E28HOOK E28(B) (641')
E60-21_E28HOOK E28(B) (2502')
E60-27_E28HOOK E28(B) (1252')
POINT MUGU NAS (NAVAL BASE VENTURA CO) (ICAO: KNTD, IATA: NTD) is a private airport located in OXNARD, CA, US.
