iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNSE
WHITING FLD NAS NORTH
PrivatePVT

4 miles N of MILTON, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 43' 21"N 87° 01' 26"W
199' MSL
1199' MSL
02W
100LL
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
7/11/24-8/8/24
KNDZ MVFR
4:56 AM CDT
Mist
Clear
3sm
72°F
71°F
29.88"Hg
320° 3kts
AO2 SLP102 T02220217 $
KNDZ 190956Z AUTO 32003KT 3SM BR CLR 22/22 A2988 RMK AO2 SLP102 T02220217 $
Add Your Business

KNSE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 121.4

ATIS

ATIS
Hours: 1145-0400Z++ MON-FRI, CLSD SAT, SUN & HOL.
 126.2

Emergency

EMERG
 121.5

Tower

LCL/P
 121.4

FAA A/FD Pages

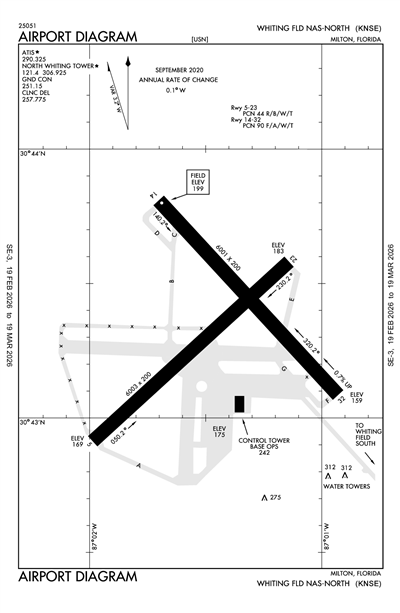

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KNSE
Thu, 9/19 2:06 AM CDT
Thu, 9/19 2:00 AM CDT - Fri, 9/20 2:00 AM CDT
VFR
2:00 AM CDT - 10:00 AM CDT
Scattered 4,500'
6sm
29.82"Hg
VRB° 5kts
MVFR
Temporary 3:00 AM CDT - 7:00 AM CDT
Mist
Scattered 300'
3.73sm
Calm
VFR
10:00 AM CDT - 3:00 PM CDT
Few 5,000'
6sm
29.91"Hg
350° 8kts
VFR
3:00 PM CDT - 2:00 AM CDT
Scattered 5,000'
6sm
29.82"Hg
340° 6kts
TAF KNSE 1907/2007 VRB05KT 9999 SCT045 QNH2983INS
   TEMPO 1908/1912 6000 BR SCT003
   FM191500 35008KT 9999 FEW050 QNH2990INS
   FM192000 34006KT 9999 SCT050 QNH2983INS AUTOMATED SENSOR METWATCH 1907 TIL 1911 TX32/1919Z TN21/1912Z FN00283
KNSE
Military
9/18/240002Z SURVEILLANCE APPROACHES UNAVAILABLE 1300Z- 2100Z (0800L-1600L)
9/17/241436Z M0918/24 NOTAMN
Q) ZJX/QXXXX/IV/NBO/A/000/999/3041N08700W005 A) KNDZ KNSE B) 2409171436 C) 2409210700
E) KNQB OLF CLOSED DUE TO SHERIFF TRAINING.
9/17/241316Z L0038/24 NOTAMC L0037/24
9/16/241645Z L0036/24 NOTAMC L0035/24
9/16/241508Z L0034/24 NOTAMC L0033/24
9/11/241414Z RUNWAY 5 SURVEILLANCE APPROACH CIRCLING MINIMUM CAT A/B DH/MDA- VIS 7
9/6/241937Z ROTATING BEACON OBSTRUCTION LIGHT UNLIT.
8/26/242007Z USE CAUTION, MEN AND EQUIPMENT WORKING NEAR NORTH TOWER.
8/26/242006Z MEN AND EQUIPMENT WORKING IN BETWEEN THE PRIMARY RUNUP AND RUNWAY 5/23.
8/14/241234Z RUNWAY 5 SURVEILLANCE APPROACH MINIMUM CAT AB 660-1 480 (500-1) CAT CDE 660-1 3/8 480 (500-1 3/8. 12 APR 18:14 2024 UNTIL 11 NOV 04:00 2024.
8/14/241225Z RUNWAY 14 SURVEILLANCE APPROACH CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (620-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (620-1 1/2).
8/14/241225Z RUNWAY 23 SURVEILLANCE APPROACH CIRCLING MINIMUM CAT A/B DH/MDA-VIS 720-1 HAT/HATH HAA 521 CEIL-VIS (620-1) CAT C DH/MDA-VIS 720-1 1/2 HAT/HATH HAA 521 CEIL-VIS (620-1 1/2).
7/23/241437Z CRANE OPERATIONS OUTBOARD TAXIWAY BRAVO AT OR BELOW 160 FEET AGL.
7/23/241435Z CRANE OPERATIONS 1/2 MILE EAST OF TAXIWAY ZULU AT OR BELOW 160 FEET AGL.
Yes
MON-FRI 1200-0400Z++
CLSD SAT, SUN & HOL; OTR BY NOTAM.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION WHITING FLD
MILTON, FL 32570
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
NSE
--
ACTVT MALSR RWY 14; PAPI RWY 05, 14, 23 & 28; HIRL RWY 14, RWY 05/23 - CTAF.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 05/23

6003 ft. x 200 ft.
ASPH
Fair
NONE
HIGH
31 /F/A/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 30° 42' 55"N 30° 43' 35"N
Longitude 87° 01' 59"W 87° 01' 08"W
Elevation 169' 183'
Threshold Crossing Height 60 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

6001 ft. x 200 ft.
ASPH
Fair
NONE
HIGH
23 /F/A/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 137°317°
Traffic Pattern
Markings
Markings Condition FAIR FAIR
Latitude 30° 43' 49"N 30° 43' 05"N
Longitude 87° 01' 42"W 87° 00' 55"W
Elevation 199' 159'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1RSTD: PPR FOR TSNT PRAC APCH & LDG; LTD TSNT PRK & SVC AVBL - DUTY OPS DSN 868-7475, C850-623-7475 & CALP OR E-MAIL: WHTG_NASWF_AIROPS_AFM@NAVY.MIL. WHITING FLD S UNLESS OTHERWISE ARNG WITH OPS OFFICER. (SEE WHITING FLD NAS-S) 24 HR PPR.
A110-2CTN: TRNG OPS INVOF ALL HRS; PONDING OCRS AFT RAIN - BRAP.
A110-3SERVICE-JASU-1(NC-8) FUEL - F24 TRAN ALERT. LTD TRAN LINE SVC AVBL 1400-220Z++ MON-FRI ONLY.
A110-4TWY Z & 200 FT INWARD FM COMPASS ROSE OF TWY A NOT VSB FM ATCT.
A110-5DD-1801 WX CODES OBTAINED AT HTTPS:/FWB.METOC.NAVY.MIL. METOC AFT HR - AWS/NORFOLK 1-888-745-6899.
A110-6SMT WHITING FLD FP - FAX C850-623-7356 OR WHTG_NASWF_BASEOPS.FCT@NAVY.MIL; CFM FP - FPG DISPATCH D868-7598/7597/7654 OR C850-623-7598/7597/7654.
WHITING FLD NAS NORTH (ICAO: KNSE, IATA: NSE) is a private airport located in MILTON, FL.
