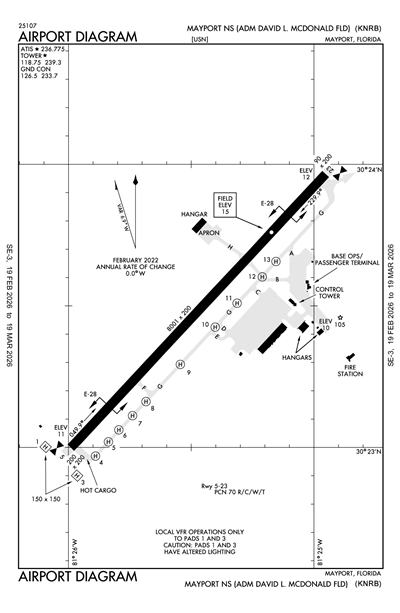

MAYPORT NS (ADM DAVID L MCDONALD FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNRB
ICAO KNRBIATA NRBLocal NRB
MAYPORT NS (ADM DAVID L MCDONALD FLD)
PrivatePVT

1 miles NW of MAYPORT, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 23' 29"N 81° 25' 28"W
Elevation
15' MSL
Pattern Alt
1015' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JP-5
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KNRB VFR
4:52 AM EST
No Clouds
N/A
32°F
32°F
30.25"Hg
Calm
AO2 SLP244 PWINO TSNO $
METAR KNRB 040952Z AUTO A3025 RMK AO2 SLP244 PWINO TSNO $
+ Add Your Business

KNRB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Ground

NAVY MAYPORT GROUND 126.5
1300-0400Z (DT 1200-0400) MON-THU; 1300-2300Z++ FRI; CLSD SAT, SUN AND FEDERAL HOLS.

Tower

NAVY MAYPORT TOWER 118.75
1300-0400Z (DT 1200-0400) MON-THU; 1300-2300Z++ FRI; CLSD SAT, SUN AND FEDERAL HOLS.

Arrival

ALCRN STAR 127.0

Approach

JACKSONVILLE APPROACH 124.9

Departure

JACKSONVILLE DEPARTURE 124.9

Emergency

Emergency 121.5

Terminal Area Forecast

KNRB
Wed, 3/4 2:09 AM EST
Wed, 3/4 2:00 AM EST - Thu, 3/5 2:00 AM EST
LIFR
Temporary 2:00 AM EST - 8:00 AM EST
Fog
Obscured
0.5sm
Calm
LIFR
2:00 AM EST - 10:00 AM EST
Mist
Overcast 1,000'
0.99sm
30.21"Hg
VRB° 6kts
MVFR
10:00 AM EST - 1:00 PM EST
Broken 25,000'
Broken 1,500'
6sm
30.21"Hg
020° 12kts
VFR
1:00 PM EST - 5:00 PM EST
Showers in vicinity
Broken 25,000'
Scattered 1,500'
Few 1,000'
6sm
30.15"Hg
020° 10kts
VFR
5:00 PM EST - 2:00 AM EST
Broken 25,000'
Scattered 1,500'
6sm
30.18"Hg
090° 8kts
TAF KNRB 0407/0507 VRB06KT 1600 BR OVC010 QNH3021INS
   TEMPO 0407/0413 0800 FG VV002
   FM041500 02012KT 9999 BKN015 BKN250 QNH3020INS
   FM041800 02010KT 9999 VCSH FEW010 SCT015 BKN250 QNH3016INS
   FM042200 09008KT 9999 SCT015 BKN250 QNH3018INS AUTOMATED SENSOR METWATCH 0407 TIL 0411 TX19/0419Z TN14/0411Z FN00320
KNRB
EffectiveExpiresCategoryNOTAM
Military
3/6/26
2200Z
4/1/26
2359Z
AerodromeAERODROME LIVE BURN TRAINING IN THE VICINITY OF THE TRANSIENT RAMP
3/3/26
2104Z
3/6/26
1630Z
AerodromeAERODROME AERODROME QUIET HOURS IN EFFECT. AIRFIELD WILL BE OPEN FOR EMERGENCY AIRCRAFT ONLY. NO TAKE OFFS, LANDINGS, TOUCH AND GO’S OR OPTIONS. NO PATTERN OR PAR PATTERN WORK. NO GSE, APU OR ENGINE STARTS. NO GROUND TURNS, MAINTENANCE GROUND TURNS, VIBRATION ANALYSIS TURNS OR HOVER WORK. 06MAR26 FROM 1000-1130 LOCAL.
3/3/26
2102Z
3/6/26
2102Z
M0084/26 NOTAMC M0078/26
3/3/26
1805Z
3/10/26
1400Z
AerodromeAERODROME SVC TOWER CLSD CLASS D SERVICE NOT AVBL ( 10MAR26 FROM 0800-1000L ). CTC JAX TRACON AT 124.9/308.4
3/2/26
1949Z
3/5/26
1949Z
M0081/26 NOTAMC M0080/26
3/2/26
1907Z
3/5/26
1907Z
M0079/26 NOTAMC M0075/26
3/2/26
1623Z
4/15/26
2200Z
AerodromeAERODROME COPTER PAR RWY 5 UNAVAILABLE FOR MAINTENANCE
3/2/26
1616Z
4/15/26
2359Z
AerodromeAERODROME ROTATING BEACON OTS.
3/2/26
1305Z
3/9/26
1300Z
AerodromeAERODROME ASOS OTS.
2/5/26
2047Z
4/20/26
0700Z
AerodromeAERODROME MULTIPLE RAISED CRANES IN THE VICINITY OF THE MAYPORT BASIN AT OR BELOW 250 FEET.
2/5/26
2046Z
4/20/26
0700Z
AerodromeAERODROME INCREASED BIRD ACTIVITY AROUND THE TACAN POND.
1/14/26
1516Z
3/14/26
0001Z
AerodromeAERODROME PERSONNEL AND EQUIPMENT BOTH SIDES OF THE RUNWAY DUE TO MULTIPLE AIRFIELD CONSTRUCTION PROJECTS UNTIL JANUARY 2027. EXPECT DELAYS IN THE RECOVERY AND LAUNCH OF FIXED WING AIRCRAFT.
Yes
MON-THU 1300-0400Z (DT 1200-0400)
FRI 1300-2300Z
CLSD SAT, SUN & FEDERAL HOLS UNLESS OTRW NOTAM.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
TEG MCNEAL
NAVAL AIR STATION
MAYPORT, FL 32228
Phone: 904-270-7126
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
NRB
--
AVBL DURG AFLD OPS HRS.
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

8001 ft. x 200 ft.
ASPH
Good
NONE
HIGH
70/R/C/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 43°223°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 22' 60"N 30° 23' 58"N
Longitude 81° 25' 59"W 81° 24' 57"W
Elevation 11' 12'
Threshold Crossing Height 48 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1JASU: 1(NC-8) 1(GTC-85) 1(A/NCPP-105).
A110-12MISC: CLASS D AIRSPACE AND CLASS E AIRSPACE 700 FT AND BELOW EFF 1200-0400Z++ (DT 1100-0400Z) SPECIAL LOCAL OPS 0400-0700Z++ MON-THU; 1300-2300Z++(DT 1200-2200Z) FRI; CLSD SAT, SUN, AND HOL. OTHER TIMES CLASS G AIRSPACE 700 FT AND BELOW. JACKSONVILLE CLASS E AIRSPACE 700 FT AND ABV EFF CONT.
A110-14CAUTION: EXP SIMUL SAME DRCTN OPS DURG DUAL RWY OPS.
A110-16FOR CD CTC JACKSONVILLE APCH AT 904-741-0284.
A110-17TRAN ALERT: GND TRANSPORTATION UNAVBL FOR AIRCREW OR PAX.
A110-18MISC: FOR CIV ACFT LDG PMT (CALP) REQ CTC AIRFIELD MGMT C904-445-8326.
A110-19FIRE EQUIP (PG4): 1500 GAL STRYKER (242) EQUIPPED WITH A 210 GAL FOAM TANK AND 500 LBS. OF HALON, 2-1250 GPM PUMPERS WITH 750 GALS OF WATER, 1-2000 GPM ARL APPARATUS WITH 500 GALS OF WATER, 1 ADVND LIFE SUPPORT TRNSP AMBULANCE, 1 HEAVY RSCU TRUCK WITH HAZMAT AND TECHNICAL RSCU RESP CAPABILITIES, 1 HAZMAT DECONTAMINATION TRAILER, 1 AIR CART FOR RE-FILLING AIR BOTTLES, 2 UTILITY TRUCKS, 1 COMMAN D VEHICLE.
A110-20ELECTRONIC MAINT (PG3): GND PWR UNITS: 12 EXTERNAL GND START UNITS (ALL PERM UNITS ON H-60 RAMP)
A110-21SNOW REMOVAL EQUIP (PG4): 1-15,000 LB FORKLIFT.
A110-3TSNT/HUNG ORDNANCE/DIVERT ALERT; ORGANIC AIR-LAUNCHED WEAPONS SAFING CPBLY NA; TSNT MAINT NA; LIMITED TSNT PRK AVBL.
A110-4RSTD: 24 HR PPR/CIVIL ACFT LNDG PERMIT; PCN EXCEEDING 34 RQR 72 HR PPR - BASE OPS DSN 270-6130/31, C904-270-6130/31. PARTICIPATING ACFT ONLY DURG SPL LCL OPS.
A110-5CAUTION: LGT TO HVY BIRD ACT ON AND IN VCNTY OF ARPT. VESSELS WITH MASTS TO 196 FT FQTLY BERTHED 800 FT LEFT OF RWY 23 THLD. LARGE VESSELS WITH MASTS UP TO 150 FT FQTLY TRANSIT THE RIVER CHAN ADJ TO APCH END RWY 23 DUR FINAL APCH.
A110-6CAUTION: EXER VIGILANCE DURG RWY 05 OPS DUE TO EXTSV CTLD/UNCTLD ACFT INVOF CRAIG MUNI ARPT. PADS 1 & 3 HAVE ALTERED LGT & APVD FOR LCL BASED ACFT ONLY.
A110-7TFC PAT: R TFC RWY 23 & L TFC RW 05. SIMULTANEOUS LDG/DEP BTN HEL CONDUCTED ON PARL TWY LCTD 325 FT FM RWY 05/23.
A110-8NS ABTMT: MAYPORT VILLAGE AND N BANK OF ST JOHNS RIVER ARE NOISE SENSITIVE. NO XW/BASE TURNS BTN TWY BRAVO-FOXTROT.
A110-9CSTMS/AG/IMG: AVBL DURG AFLD HRS WITH 24 HR PPR.
A17-M1CLSD SAT, SUN & FEDERAL HOLS UNLESS OTRW NOTAM.
A70-J5AFT HR FUEL NA; TSNT HEL HOT RFL CTC BASE OPS 904-270-6130/DSN 270-6130; COORD RFL TIMES HSM-40 ODO - 904-270-6332/DSN 960-6332 (DIAL 0 & REQ MAINT CTL); FIXED WING HOT RFL NA.
A81-APTAVBL DURG AFLD OPS HRS.
A86FSS-GAINESVILLE GNV-NOTAM JAX.
E60-05_E28HOOK E28(B) (1200 FT). 30 MIN NOTICE FOR ARSTMT UNLESS FLD IN DIV STS.
E60-23_E28HOOK E28(B) (1186 FT). 30 MIN NOTICE FOR ARSTMT UNLESS FLD IN DIV STS.
E79CUSTOMS/AGRICULTURE/IMG AVBL FOR ACFT WITH 30 PSGRS OR LESS; MON-FRI EXCP HOLS 0800-1700. OTHER TIMES 48 HR PPR.
MAYPORT NS (ADM DAVID L MCDONALD FLD) (ICAO: KNRB, IATA: NRB) is a private airport located in MAYPORT, FL, US.
