KNQI

KINGSVILLE NAS

PrivatePVT

3 miles E of KINGSVILLE, TX

View on Map

Status

Operational

Coordinates

27° 30' 16"N 97° 48' 30"W

Elevation

50' MSL

Pattern Alt

1050' MSL

Mag Variation

04E

Fuel

None Listed

FSS

SAN ANGELO (SJT)

Sectional

BROWNSVILLE

ARTCC

HOUSTON (ZHU)

Data Effective

4/17/25-5/15/25

KNQI VFR

10:56 PM CDT RAW

Broken 25,000'
Scattered 3,500'
Few 1,600'

Viz

10sm

Temp

83°F

Dew

80°F

Pres

29.87"Hg

Wind

130° 5kts

RMK

SLP112 LAST T02830267

KNQI 030356Z 13005KT 10SM FEW016 SCT035 BKN250 28/27 A2987 RMK SLP112 LAST T02830267

Add Your Business

KNQI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

Your Information

Business

UNICOM -- CTAF --

Approach

APCH/P

119.9

Departure

DEP/P

121.05

Emergency

EMERG

121.5

Tower

LCL/P

124.1

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

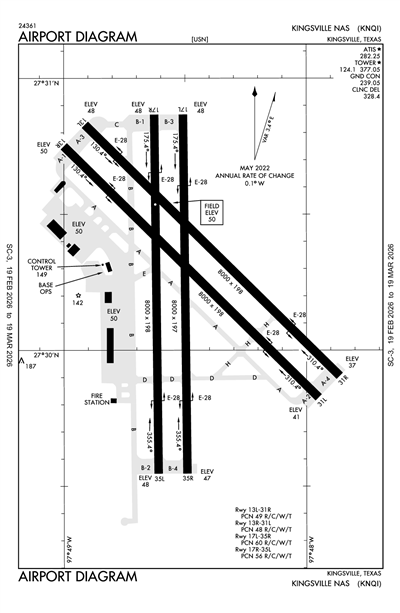

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

KINGSVILLE FOUR

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KNQI

RAW

Reported

Mon, 6/2 5:57 PM CDT

Valid

Mon, 6/2 6:00 PM CDT - Tue, 6/3 6:00 PM CDT

VFR

6:00 PM CDT - 7:00 PM CDT

Scattered 25,000'
Few 4,500'

Viz

6sm

Pres

29.79"Hg

Wind

120° 18kts

Gusts 25kts

Turbulence

Light Turbulence: up to 3,000'

VFR

7:00 PM CDT - 1:00 AM CDT

Scattered 25,000'
Scattered 2,500'

Viz

6sm

Pres

29.82"Hg

Wind

130° 12kts

Gusts 19kts

Turbulence

None: up to 3,000'

MVFR

Temporary 8:00 PM CDT - 1:00 AM CDT

Broken 2,500'

Viz

N/A

Wind

140° 9kts

MVFR

1:00 AM CDT - 9:00 AM CDT

Broken 1,500'

Viz

6sm

Pres

29.82"Hg

Wind

150° 7kts

VFR

9:00 AM CDT - 3:00 PM CDT

Broken 25,000'
Scattered 4,000'
Scattered 2,500'

Viz

6sm

Pres

29.85"Hg

Wind

150° 12kts

VFR

3:00 PM CDT - 6:00 PM CDT

Showers in vicinity

Scattered 25,000'
Scattered 4,500'

Viz

6sm

Pres

29.79"Hg

Wind

140° 15kts

Gusts 23kts

TAF KNQI 0223/0323 12018G25KT 9999 FEW045 SCT250 510003 QNH2980INS
   FM030000 13012G19KT 9999 SCT025 SCT250 500000 QNH2981INS
   TEMPO 0301/0306 14009KT BKN025
   FM030600 15007KT 9999 BKN015 QNH2982INS
   FM031400 15012KT 9999 SCT025 SCT040 BKN250 QNH2985INS
   FM032000 14015G23KT 9999 VCSH SCT045 SCT250 QNH2980INS AUTOMATED SENSOR METWATCH 0305 TIL 0312 TX35/0320Z TN25/0312Z FN20042

KNQI

Military
5/21/250308Z	AERODROME CLOSED UNTIL 1245Z 21 MAY 25.
5/20/251811Z	L0278/25 NOTAMC L0171/25
5/16/251536Z	AERODROME HOURS FOR THE WEEK OF 19 MAY 25 ARE: MON - WED 1245Z - 0445Z, THUR 1600Z - 0200Z, FRI 1300Z - 2000Z.
4/2/251645Z	TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES: RWY 17L TERRAIN 323' FROM DER, 500' LEFT OF CNTRLN, 0' AGL/59'MSL.
4/2/251631Z	TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES: RWY 17R TERRAIN 317' FROM DER, 500' LEFT OF CNTRLN, 0' AGL/59'MSL.

ATC Tower

Yes

Attendance

MON-THU 1345-0600Z++
FRI 1345-2345Z++
CLSD SAT, SUN AND FED HOL EXC BY NOTAM. HRS SUBJECT TO CHG. FLD SUBJ EARLY/NO NOTICE CLOSURE.

Owner

U S NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373

Manager

COMMANDING OFFICER
NAVAL AIR STATION
KINGSVILLE, TX 78363
Phone: 361-516-4331

FSS

SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF

NOTAM

SJT

Light Schedule

Lights

AVBL ONLY DURG HRS OF OPN.

Beacon

N/A

Wind Indicator

N/A

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

Low Pressure

Other Services

None

Runway 13L/31R

Dimensions

8000 ft. x 198 ft.

Surface Type

PEM

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

49 /R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13L	Runway 31R
True Heading	134°	314°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	27° 30' 50"N	27° 29' 55"N
Longitude	97° 48' 55"W	97° 47' 51"W
Elevation	48'	36'
Threshold Crossing Height	--	52 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 13R/31L

Dimensions

8000 ft. x 198 ft.

Surface Type

PEM

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

48 /R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13R	Runway 31L
True Heading	134°	314°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	27° 30' 45"N	27° 29' 50"N
Longitude	97° 49' 00"W	97° 47' 57"W
Elevation	50'	41'
Threshold Crossing Height	35 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4L	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 17L/35R

Dimensions

8000 ft. x 197 ft.

Surface Type

PEM

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

60 /R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17L	Runway 35R
True Heading	179°	359°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	27° 30' 52"N	27° 29' 33"N
Longitude	97° 48' 30"W	97° 48' 29"W
Elevation	48'	46'
Threshold Crossing Height	--	52 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4L
Approach Lights		ALSF1
Centerline Lights	Yes	Yes
Runway End Identifier Lights	Yes	Yes

Runway 17R/35L

Dimensions

8000 ft. x 198 ft.

Surface Type

PEM

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

56 /R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17R	Runway 35L
True Heading	179°	359°
Traffic Pattern
Markings	PIR	PIR
Markings Condition	FAIR	FAIR
Latitude	27° 30' 52"N	27° 29' 33"N
Longitude	97° 48' 38"W	97° 48' 37"W
Elevation	48'	48'
Threshold Crossing Height	52 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4L	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	CAUTION: HVY JET INST TRNG DUR FLD OPR HR.
A110-10	BEARING STRENGTH RWY 13R/31L: ST175 SBTT593 TRT585.
A110-11	BEARING STRENGTH RWY 17R/35L: ST175 SBTT593 TRT585.
A110-12	BEARING STRENGTH RWY 17L/35R: ST175 SBTT593 TRT585.
A110-17	SERVICE - LGT: OLS GS 3.25DEG.
A110-18	JASU: 1(NC-10) 1(GTC-85).
A110-19	FUEL: JAA.
A110-20	FLUID: SP PRESAIR LOX.
A110-21	OIL: O-148-156.
A110-22	TRAN ALERT: EXPC SVCG DLAS WKEND. SVC NOT AVBL SUN TIL 2300Z++. TRAN CREW IS RESPONSIBLE FOR FUELING ACFT. DRAG CHUTE REPACK UNAVBL.
A110-24	CAUTION: BIRD AND LARGE WILDLIFE HAZARD.
A110-25	TRAN ACFT CTC APP CON 25 NM OUT.
A110-3	CAUTION: AVOID OVFT OF CHEMICAL PLANT 5 NM N.
A110-4	CAT C AFLD.
A110-5	TFC PAT: ARR TSNT ACFT EXP ENR DESCENT.
A110-6	TFC PAT: USE LDG/TAXI LGT FOR FINAL PORTION OF INST APCH DURG VFR.
A110-7	RSTD: PPR FOR NON-CNATRA ACFT CTC BASE OPS DURG FLD OPR HR DSN 876-6108, C361-516-6108. FOR CALP PROCESSING CTC AFLD MGR VIA BASE OPS.
A110-8	MISC: DURG FCLP PERIODS OR SINGLE RWY OPNS PRACTICE APCHS FOR TRANS ACFT MAY BE DENIED. PRACTICE APCHS FOR TRANS ACFT MAY BE PERMITTED AT ALL OTHER TIMES BUT DLYS OR WAVE-OFFS SHOULD BE ANTICIPATED.
A110-9	BEARING STRENGTH RWY 13L/31R: ST 175 SBTT593 TRT585.

KINGSVILLE NAS (ICAO: KNQI, IATA: NQI) is a private airport located in KINGSVILLE, TX.
