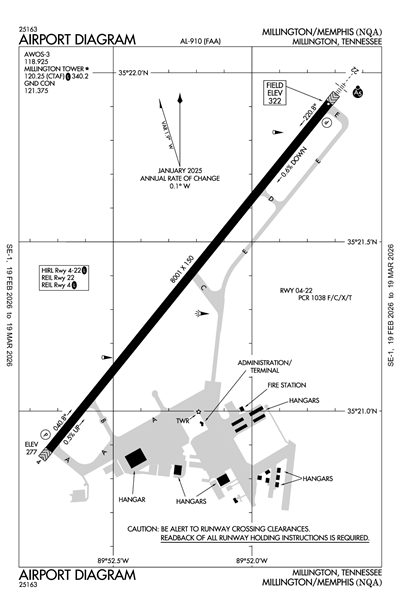

MILLINGTON/MEMPHIS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNQA
ICAO KNQAIATA NQALocal NQA
MILLINGTON/MEMPHIS
PublicPUB

1 miles NE of MILLINGTON, TN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 21' 24"N 89° 52' 14"W
Elevation
322' MSL
Pattern Alt
1322' MSL
Mag Variation
2°W
Declination
0°
Fuel
JET A (FSII), 100LL
FSS
JACKSON (MKL)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KNQA VFR
7:50 PM CST
Clear
10sm
66°F
54°F
30.07"Hg
170° 4kts
METAR KNQA 040150Z 17004KT 10SM CLR 19/12 A3007
+ Add Your Business

KNQA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.925
(901) 873-3630

Common

CTAF 120.25
ACTVT MALSR RWY 22; REIL RWY 04; HIRL RWY 04/22 - CTAF. HIRL RWY 04/22 PRESET LOW INTST; INCR INTST - CTAF. PAPI RWY 04 & 22 ON CONSLY.
UNICOM 122.95

Ground

MILLINGTON GROUND 121.375
0900-0200 MON; 0530-0200 TUE-FRI; 0530-1900 SAT-SUN

Tower

MILLINGTON TOWER 120.25
0900-0200 MON; 0530-0200 TUE-FRI; 0530-1900 SAT-SUN

Approach

MEMPHIS APPROACH 119.1
Initial Contact - 176-355
MEMPHIS APPROACH 125.8
Initial Contact - 356-175
MEMPHIS APPROACH 120.075
Secondary - 356-175
MEMPHIS APPROACH 120.925
Secondary - 356-175
MEMPHIS APPROACH 126.7
Secondary - 176-355

Departure

MEMPHIS DEPARTURE 124.15
356-175
MEMPHIS DEPARTURE 124.65
176-355

Other

CLASS B 119.1
176-355
CLASS B 125.8
356-175

Terminal Area Forecast

KMEM (19nm)
Tue, 3/3 5:28 PM CST
Tue, 3/3 6:00 PM CST - Thu, 3/5 12:00 AM CST
VFR
6:00 PM CST - 7:00 PM CST
Scattered 25,000'
Scattered 4,500'
6sm
180° 13kts
Gusts 19kts
VFR
7:00 PM CST - 6:00 AM CST
Scattered 25,000'
Scattered 2,500'
6sm
170° 8kts
MVFR
6:00 AM CST - 12:00 PM CST
Broken 25,000'
Broken 1,500'
6sm
190° 11kts
Gusts 18kts
VFR
12:00 PM CST - 6:00 PM CST
Broken 25,000'
Scattered 1,500'
6sm
200° 12kts
Gusts 20kts
VFR
6:00 PM CST - 12:00 AM CST
Broken 25,000'
6sm
180° 8kts
TAF KMEM 032328Z 0400/0506 18013G19KT P6SM SCT045 SCT250
   FM040100 17008KT P6SM SCT025 SCT250
   FM041200 19011G18KT P6SM BKN015 BKN250
   FM041800 20012G20KT P6SM SCT015 BKN250
   FM050000 18008KT P6SM BKN250
KNQA
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
2100Z
2/27/26
0100Z
!NQA 02/028 NQA AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF NQA SFC-3500FT AGL ACFT CS FLC66
2602262100-2602270100
2/22/26
1051Z
!NQA 02/029 NQA NAV ILS RWY 22 GP U/S 2602221051-2604302000EST
2/21/26
1130Z
3/7/26
1300Z
!NQA 02/027 NQA SVC TWR CLSD MNT CTAF 120.25 SAT SUN 1130-1300 2602211130-2603071300
2/18/26
1130Z
3/6/26
1400Z
!NQA 02/026 NQA SVC TWR CLSD MNT CTAF 120.25 WED THU FRI TUE 1130-1400 2602181130-2603061400
2/14/26
0245Z
3/31/26
0245Z
!NQA 02/024 NQA OBST TOWER LGT (ASR 1057943) 351633.00N0894638.00W (6.6NM SE NQA) 1448.8FT (1198.8FT AGL) U/S 2602140245-2603310245
FDC
1/13/26
1456Z
!FDC 6/2699 NQA IAP MILLINGTON/MEMPHIS, MILLINGTON, TN.
VOR OR TACAN RWY 22, AMDT 3A...
APT ELEV: 322.
TDZE: 322.
S-22 HAT 558 ALL CATS.
CIRCLING CAT A/B HAA 558, CAT C HAA 598, CAT D/E HAA 638.
2601131456-2801131456EST
3/18/24
1222Z
!FDC 4/8220 NQA IAP MILLINGTON/MEMPHIS, MILLINGTON, TN.
RNAV (GPS) RWY 4, AMDT 1B...
CIRCLING CAT A HAA 478, CAT B HAA 498, CAT C HAA 598, CATS D/E HAA 638.
2403181222-2603181222EST
Yes
MON-FRI 0730-0200
SAT-SUN 0700-1900
SVC AFT HR - 901-873-4359.
MILLINGTON ARPT AUTH
8182 HORNET AVE
MILLINGTON, TN 38053
Phone: 901-872-7495
MR. MIKE GILL
8182 HORNET AVE
MILLINGTON, TN 38053
Phone: 901-872-7495
JACKSON FSS (MKL)
Toll Free: 1-800-WX-BRIEF
NQA
--
ACTVT MALSR RWY 22; REIL RWY 04; HIRL RWY 04/22 - CTAF. HIRL RWY 04/22 PRESET LOW INTST; INCR INTST - CTAF. PAPI RWY 04 & 22 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
Low Pressure
None
Avionics

Runway 04/22

8001 ft. x 150 ft.
ASPH
Good
NONE
HIGH

--
--
--
--
  Runway 04 Runway 22
True Heading 39°219°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 20' 53"N 35° 21' 55"N
Longitude 89° 52' 44"W 89° 51' 43"W
Elevation 277' 322'
Threshold Crossing Height 77 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3CAT C AFLD.
A110-4TWY B CLSD TO ACR.
A110-6FOR CD WHEN ATCT IS CLSD CTC MEM APCH AT 901-842-8457.
A17-M1SVC AFT HR - 901-873-4359.
A26ARPT CLSD TO UNSKED ACR OPS WITH MORE THAN 30 PAX SEATS. ARFF NOT AVBL MON 1130-0300Z; TUE-SAT 0800-1130Z; SAT-SUN 2000-1130Z EXC PPR. INDEX D ARFF AVBL PPR - 901-873-5792.
A39-04/22PCR VALUE: 1038/F/C/X/T
A70-100LLJASU AVBL.
A81-APTACTVT MALSR RWY 22; REIL RWY 04; HIRL RWY 04/22 - CTAF. HIRL RWY 04/22 PRESET LOW INTST; INCR INTST - CTAF. PAPI RWY 04 & 22 ON CONSLY.
MILLINGTON/MEMPHIS (ICAO: KNQA, IATA: NQA) is a public airport located in MILLINGTON, TN, US.
