PENSACOLA NAS (FORREST SHERMAN FLD) - Airport Diagram

KNPA

ICAO KNPAIATA NPALocal NPA

PENSACOLA NAS (FORREST SHERMAN FLD)

PrivatePVT

6 miles SW of PENSACOLA, FL, US

View on Map

Status

Operational

Coordinates

30° 21' 12"N 87° 19' 05"W

Elevation

28' MSL

Pattern Alt

1028' MSL

Mag Variation

3°W

Declination

3°W

Fuel

None Listed

FSS

GAINESVILLE (GNV)

Sectional

NEW ORLEANS

ARTCC

JACKSONVILLE (ZJX)

Data Effective

2/19/26-3/19/26

KNPA VFR

7:56 PM CST RAW

Broken 6,500'
Few 800'

Viz

10sm

Temp

64°F

Dew

63°F

Pres

30.23"Hg

Wind

120° 5kts

RMK

AO2 SLP237 T01780172 $

METAR KNPA 040156Z 12005KT 10SM FEW008 BKN065 18/17 A3023 RMK AO2 SLP237 T01780172 $

Add Your Business

KNPA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

Your Information

Business

Weather and Advisory

ATIS	124.35
Hours: 1300-0300Z++ MON-FRI; CLSD SAT; 2100-0230Z++ SUN, HOL BY NOTAM.

Clearance

Clearance Delivery	134.1
DEP ACFT CTC CLNC DEL PRIOR TAXI.

Ground

SHERMAN GROUND	121.7
1300-0300Z++ MON-FRI; CLSD SAT; 2100-0230Z++ SUN, HOL BY NOTAM.

Tower

SHERMAN TOWER	120.7
1300-0300Z++ MON-FRI; CLSD SAT; 2100-0230Z++ SUN, HOL BY NOTAM.

Approach

PENSACOLA APPROACH	120.65
PENSACOLA APPROACH	120.65

Departure

PENSACOLA DEPARTURE	120.65
PENSACOLA DEPARTURE	120.65

Other

CLASS C

120.65

FAA A/FD Pages

FAA A/FD Page

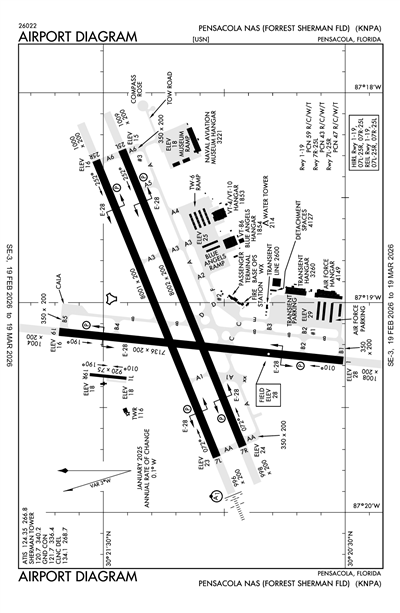

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KNPA

RAW

Reported

Tue, 3/3 5:00 PM CST

Valid

Tue, 3/3 5:00 PM CST - Wed, 3/4 5:00 PM CST

VFR

5:00 PM CST - 12:00 AM CST

Scattered 1,100'

Viz

6sm

Pres

30.18"Hg

Wind

120° 8kts

IFR

Temporary 6:00 PM CST - 12:00 AM CST

Overcast 6,000'
Broken 800'

Viz

N/A

Wind

Calm

IFR

12:00 AM CST - 7:00 AM CST

Mist

Broken 500'

Viz

2.98sm

Pres

30.15"Hg

Wind

100° 5kts

LIFR

Temporary 2:00 AM CST - 7:00 AM CST

Fog

Broken 200'

Viz

0.25sm

Wind

Calm

IFR

7:00 AM CST - 12:00 PM CST

Mist

Broken 500'

Viz

4.97sm

Pres

30.18"Hg

Wind

110° 10kts

VFR

Temporary 7:00 AM CST - 10:00 AM CDT

Scattered 500'

Viz

N/A

Wind

Calm

MVFR

12:00 PM CST - 3:00 PM CST

Overcast 1,200'

Viz

6sm

Pres

30.21"Hg

Wind

120° 11kts

VFR

3:00 PM CST - 5:00 PM CST

Broken 25,000'
Scattered 1,500'

Viz

6sm

Pres

30.15"Hg

Wind

140° 10kts

TAF KNPA 0323/0423 12008KT 9999 SCT011 BKN60 QNH3017INS
   TEMPO 0400/0406 BKN008 OVC060
   FM040600 10005KT 4800 BR BKN005 QNH3015INS
   TEMPO 0408/0413 0400 FG BKN002
   FM041300 11010KT 8000 BR BKN005 QNH3018INS
   TEMPO 0413/1415 SCT005
   FM041800 12011KT 9999 OVC012 QNH3021INS
   FM042100 14010KT 9999 SCT015 BKN250 QNH3015INS AUTOMATED SENSOR METWATCH 0403 TIL 0412 TX23/0420Z TN17/0412Z FN20034

KNPA

Effective	Expires	Category	NOTAM
Military
1/30/26 2034Z	4/23/26 1700Z		TRANSIENT ALERT SERVICE ARE LIMITED TO 0700-1430L (1300-2030Z)
12/3/25 1450Z	3/3/26 1450Z	Taxiway	TWY A6 IS CLOSED BETWEEN ALPHA AND TOW RD.
12/3/25 1450Z	3/3/26 1450Z	Runway	RWY 01 IN THE EVENT OF OVERRUN UTILIZE CAUTION DUE TO BROKEN ASPHALT ON LAST 500 FEET.
12/3/25 1450Z	3/3/26 1450Z	Aerodrome	AERODROME SINK HOLES THROUGHOUT THE AIRFIELD IN THE LATERAL SAFETY AREAS OF TAXIWAYS AND RUNWAYS MARKED BY CONES. UTILIZE CAUTION.

ATC Tower

Yes

Attendance

MAR-NOV MON-FRI 1200-0300Z
SAT CLSD
SUN 2100-0230Z++
NOV-MAR 1300-0300Z
HOL BY NOTAM. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.

Owner

US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373

Manager

COMMANDING OFFICER
NAVAL AIR STATION
PENSACOLA, FL 32508
Phone: 850-452-2735

FSS

GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF

NOTAM

NPA

Light Schedule

Lights

AVBL ONLY DURING HRS OF OPERATION.

Beacon

N/A

Wind Indicator

N/A

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 01/19

Dimensions

7136 ft. x 200 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

59/R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	6°	186°
Traffic Pattern
Markings
Markings Condition
Latitude	30° 20' 31"N	30° 21' 41"N
Longitude	87° 19' 18"W	87° 19' 09"W
Elevation	28'	16'
Threshold Crossing Height	55 ft. AGL	55 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07L/25R

Dimensions

8001 ft. x 200 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

47/R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 07L	Runway 25R
True Heading	68°	248°
Traffic Pattern
Markings
Markings Condition
Latitude	30° 21' 03"N	30° 21' 32"N
Longitude	87° 19' 45"W	87° 18' 20"W
Elevation	23'	16'
Threshold Crossing Height	56 ft. AGL	56 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	ALSF1
Centerline Lights
Runway End Identifier Lights		Yes

Runway 07R/25L

Dimensions

8000 ft. x 200 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

43/R/C/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 07R	Runway 25L
True Heading	68°	248°
Traffic Pattern
Markings
Markings Condition
Latitude	30° 20' 56"N	30° 21' 26"N
Longitude	87° 19' 42"W	87° 18' 17"W
Elevation	24'	15'
Threshold Crossing Height	55 ft. AGL	52 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-10	TFC PAT: LDG/TAXI LGT RQR ALL LDG WHEN WX COND PERMIT. WHEELS WATCH NOT ON STN. SEE MANDATORY IFR ARR PRO-FLIP AP/1 SUPPLEMENTARY ARPT RMK. REDUCED RWY SEPARATION STD IN EFF CNATRA ACFT ONLY. MULTIPLE APCH SEVERELY LTD DUR SINGLE RWY OPR.
A110-11	NS ABTMT: REQ ALL ACFT REMAIN AT OR ABV 500' AND 0.5 NM OFF-SHORE FR NAVARRE BEACH TO W OF JOHNSON BEACH DUE TO NESTING OF PROTECTED SPECIES APR-OCT.
A110-12	CSTMS/AG/IMG: CSTMS, AG AVBL IF PRIOR ARNG MADE WITH MIN 48 HR ADVANCE NTC.
A110-14	CAUTION: EXPECT SIMULTANEOUS OPR DUR DUAL RY OPERATIONS. PONDING OCCURS AFTER MODERATE TO HVY RAIN AT ALL RY INT AND HOLD SHORT AREAS. RY 7L-R/25L-R GROOVED. RY 1/19 NOT GROOVED.
A110-15	MISC- SECTOR CONTROL PENSACOLA, FL KNPA (CALL SIGN SEABREEZE) C850-452-2041, SKEDS HOURS 1200-2100Z++ MON-FRI, MAR-NOV; 1300-2200Z MON-FRI; NOV-MAR. (R) CTL SVC AND SKED PROVIDED IN W155 TO ALL MIL AND DESIGNATED CIV AIR OPR. ALL ACFT OPR IN W155 SHALL BE SKED, CHECK IN/OUT ON PRIM FREQ AND REMAIN IN CONTINUOUS RDO COM WITH SEABREEZE OR WITH THE MIL RADAR UNIT/FAC SPECIFICALLY AUTH BY SEABREEZE TO PROVIDE CTL/CONTAINMENT SVC. ACFT OPR BLW 3500- MAY NOT RECEIVE RADAR SVC DUE TO LIMITED RADAR/RADIO COVERAGE. FOR DETAILED WARNING OP AREA SKED/USE PRO, CTC SECTOR CONTROL PENSACOLA. SEABREEZE - (PRIM)-(E) (127.45 351.625) 348.0 3102.4 6835.4 H-5D, L18E, F. FLT PLANS FOR NAS PENSACOLA CAN BE SUBMITTED TO BASE OPS VIA FAX AT C850-452-8105 OR E-MAIL: CNIC_SE_PNSC_NPA_BASE_OPS@US.NAVY.MIL. TO CONFIRM RECEIPT OF FLT PLANS CTC FLT PLANNING DISPATCHER C850-452-2265/2041. KNPA ASOS DIAL-IN C850-452-3040.
A110-16	ACFT EXP TO CONDUCT OPR FR SHERMAN FLD CTC FLEET LIAISON OFFICE DSN 459-4333, C850-452-4333 FOR SKED.
A110-17	CIV ACFT LDG PMT CTC DEPUTY AIR OPS OFFICER DSN:459-2547 C:850-452-2547.
A110-18	RSTD - B-52 OPS PROH. PPR REQ FOR ALL TRANSIENT AIRCRAFT. PPR VALID PLUS OR MINUS 30 MIN. OF APPRVD TIME NOT TO EXCEED BEYOND NORMAL AIRFLD CLOSURE TIME. FAILURE TO ARRIVE WITHIN THE ASSIGNED WINDOW MAY RESULT IN DENIAL OF LANDING CLEARANCE., CTC TRAN LINE DSN 850-459-2672, C850-452-2672.
A110-2	A-GEAR: 15 MIN NTC FOR SHORT FIELD ARRESTMENT.
A110-3	JASU - 2(NC-10) 2(MSU-200)
A110-4	FUEL: JET A++
A110-5	FLUID - SP LHOX LOX OXRB ACFT NITROGEN AND OX SVCG AVBL MAR-NOV 1200-0300Z, MON-FRI, NOV-MAR 1300-0300Z, CLSD SAT-SUN, OPEN BY NOTAM, AND HOL BY NOTAM.
A110-6	OIL: O-128-148-156
A110-7	TRAN SVC AVBL, CTC FOR HOURS, CLSD SAT-SUN, HOL BY NOTAM ; OT NO TRAN ACFT AUTH.
A17-M1	HOL BY NOTAM. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A81-APT	AVBL ONLY DURING HRS OF OPERATION.
A86	FSS-GAINESVILLE GNV- NOTAM PNS
E60-01_E5	HOOK E28(B)(1554')
E60-07L_E5	HOOK E28(B) (1200')
E60-07R_E5	HOOK E28(B) (1300')
E60-19_E5	HOOK E28(B) (1100')
E60-25L_E5	HOOK E28(B) (1450')
E60-25R_E5	HOOK E28(B) (1300')

PENSACOLA NAS (FORREST SHERMAN FLD) (ICAO: KNPA, IATA: NPA) is a private airport located in PENSACOLA, FL, US.
