KNJM
ICAO KNJMLocal NJM
BOGUE FLD MCALF
PrivatePVT

4 miles E of SWANSBORO, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 41' 25"N 77° 01' 44"W
Elevation
21' MSL
Pattern Alt
1021' MSL
Mag Variation
10°W
Declination
8°W
Fuel
None Listed
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KNJM VFR
11:51 PM EST
Mist
Clear
6sm
52°F
51°F
30.33"Hg
Calm
AO2 SLP273 T01110106 401890067 $
METAR KNJM 040451Z AUTO 00000KT 6SM BR CLR 11/11 A3033 RMK AO2 SLP273 T01110106 401890067 $
+ Add Your Business

KNJM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 126.45

Tower

BOGUE TOWER 126.45
OPNS HRS PUBLISHED BY 2ND MARINE AIR WING; CTC AIR OPS REQ SCHEDULE/USAGE DSN 582-0674. C252-466-0674.

Approach

CHERRY POINT APPROACH 132.575

Departure

CHERRY POINT DEPARTURE 132.575

Emergency

Emergency 121.5

Other

SFA 119.5

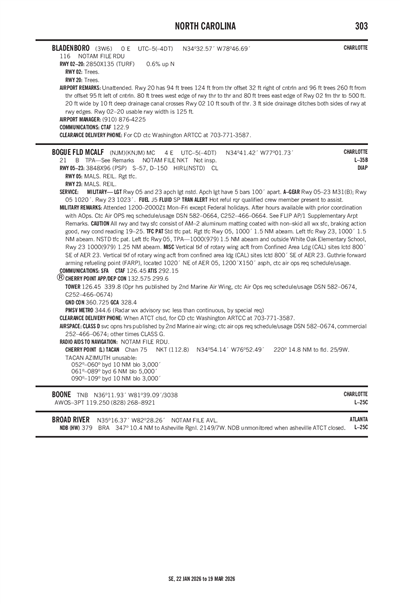

FAA A/FD Pages

Terminal Area Forecast

KNKT (14nm)
Tue, 3/3 11:00 PM EST
Tue, 3/3 10:00 PM EST - Wed, 3/4 10:00 PM EST
LIFR
Temporary 10:00 PM EST - 4:00 AM EST
Fog
Overcast 3,000'
Broken 500'
0.5sm
Calm
VFR
10:00 PM EST - 10:30 AM EST
Sky Clear
6sm
30.30"Hg
VRB° 6kts
LIFR
Temporary 4:00 AM EST - 10:00 AM EST
Mist
Overcast 3,000'
Broken 500'
0.99sm
Calm
VFR
10:30 AM EST - 10:00 PM EST
Scattered 1,000'
6sm
30.21"Hg
210° 8kts
LIFR
Temporary 11:00 AM EST - 5:00 PM EST
Broken 1,000'
0.22sm
200° 8kts
Gusts 18kts
TAF AMD KNKT 0403/0503 VRB06KT 9999 SKC QNH3030INS
   TEMPO 0403/0409 0800 FG BKN005 OVC030
   TEMPO 0409/0415 1600 BR BKN005 OVC030
   FM041530 21008KT 9999 SCT010 QNH3020INS
   TEMPO 0416/0422 20008G18KT BKN010 TX22/0419Z TN09/0412Z AMD 0355
KNJM
No NOTAM Available
Yes
*
ATTENDED 1200-2000Z+ MON-FRI EXC FEDERAL HOLIDAYS. AFTER HOURS AVAILABLE WITH PRIOR CDN WITH AOPS.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
N/A
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
NKT
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 05/23

3848 ft. x 96 ft.

PSP
NONE
HIGH

57,000lbs
150,000lbs
--
--
  Runway 05 Runway 23
True Heading 41°221°
Traffic Pattern Right
Markings
Markings Condition
Latitude 34° 41' 11"N 34° 41' 39"N
Longitude 77° 01' 59"W 77° 01' 29"W
Elevation 8' 15'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights MALS MALS
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes
A110-1BEARING STRENGTH RWY 05-23: ST175
A110-10REMARKS-MISC: VERT TKOF OF R/W ACFT FR CONFINED AREA LANDING (CAL) SITES LCTD 800 FT SE OF APCH END RY 23.
A110-11RMK MISC: GUTHRIE FORWARD ARMING REFUELING POINT (FARP), LCTD 1020 FT NE OF APCH END RY 5, 1200 FT X 150 FT ASPHALT, CTC AIR OPS REQ SKED/USAGE.
A110-12A-GEAR: RWY 5/23 M31(B); RWY 5 1020'. RWY 23 1023 '.
A110-13WHEN ATCT CLSD, FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-3FUEL: J5
A110-4FLUID: SP
A110-5TRAN ALERT: NO HGR, ACFT SVC OR TRAN MAINT AVBL. HOT REFUL REQ QUALIFIED CREW MEMBER PRESENT TO ASSIST.
A110-7CAUTION: ALL RWY AND TWY SFC CONSIST OF AM-2 ALUMINUM MATTING COATED WITH NON-SKID ALL WX SFC, BA GOOD, RCR 19-25. TFC PAT - LEFT TFC: RWY 05, 1000' 1 1/2 NM ABEAM AND OUTSIDE WHITE OAK ELEMENTARY SCHOOL; RWY 23, 1000' 1 1/4 NM ABEAM.
A110-8MISC: VERT TKOF OF AV8 ACFT FR CONFINED AREA LANDING (CAL) SITES LCTD 800' SE OF APCH END RWY 23.
A110-9M31(B) ARRESTING GEAR 1020 FT FROM RY 05 & 23 THLDS.
A17-M1ATTENDED 1200-2000Z+ MON-FRI EXC FEDERAL HOLIDAYS. AFTER HOURS AVAILABLE WITH PRIOR CDN WITH AOPS.
A40-05/23RYS 05 AND 23 APCH LGTS NSTD. APCH LGTS HAVE 5 BARS 100 FT APART.
A81-APTAVBL ONLY DURING HRS OF OPERATION.
BOGUE FLD MCALF (ICAO: KNJM, IATA: NJM) is a private airport located in SWANSBORO, NC, US.
