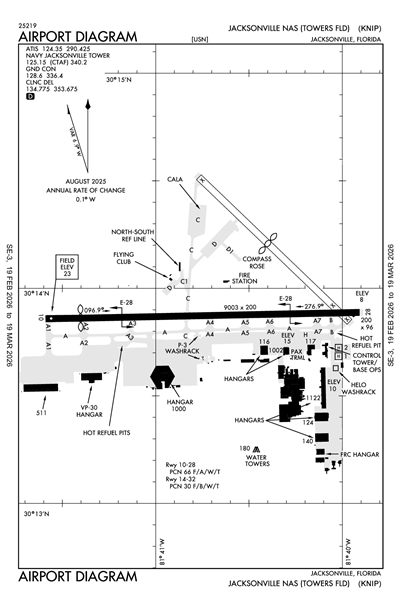

JACKSONVILLE NAS (TOWERS FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNIP
ICAO KNIPIATA NIPLocal NIP
JACKSONVILLE NAS (TOWERS FLD)
PrivatePVT

4 miles S of JACKSONVILLE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 14' 01"N 81° 40' 34"W
Elevation
23' MSL
Pattern Alt
1023' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JP-5
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KNIP LIFR
11:53 PM EST
Mist
Obscured 200'
0.75sm
58°F
57°F
30.31"Hg
360° 5kts
AO2 SLP259 T01440139 402170139
METAR KNIP 040453Z AUTO 36005KT 3/4SM BR VV002 14/14 A3031 RMK AO2 SLP259 T01440139 402170139
+ Add Your Business

KNIP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.35
AWOS-3 119.275

Common

CTAF 125.15

Clearance

Clearance Delivery 134.775

Ground

NAVY JACKSONVILLE GROUND 128.6
24 HRS. SEE FLIP AP/1 SUPPLEMENT ARPT INFO. CLOSURES PUBLISHED VIA NOTAM.

Tower

NAVY JACKSONVILLE TOWER 125.15
24 HRS. SEE FLIP AP/1 SUPPLEMENT ARPT INFO. CLOSURES PUBLISHED VIA NOTAM.

Arrival

ALCRN STAR 127.0

Approach

JACKSONVILLE APPROACH 127.775
JACKSONVILLE APPROACH 127.775

Departure

JACKSONVILLE DEPARTURE 127.775

Emergency

Emergency 121.5

Terminal Area Forecast

KNIP
Tue, 3/3 6:07 PM EST
Tue, 3/3 6:00 PM EST - Wed, 3/4 6:00 PM EST
IFR
6:00 PM EST - 11:00 PM EST
Broken 4,000'
Broken 700'
6sm
30.24"Hg
050° 8kts
LIFR
11:00 PM EST - 3:00 AM EST
Mist
Broken 400'
2.98sm
30.24"Hg
VRB° 4kts
LIFR
Temporary 3:00 AM EST - 9:00 AM EST
Fog
Overcast 300'
0.5sm
Calm
LIFR
3:00 AM EST - 10:00 AM EST
Mist
Overcast 400'
1.99sm
30.21"Hg
VRB° 3kts
MVFR
10:00 AM EST - 1:00 PM EST
Broken 3,000'
Scattered 1,500'
6sm
30.24"Hg
060° 7kts
VFR
1:00 PM EST - 6:00 PM EST
Broken 4,500'
Scattered 3,000'
6sm
30.21"Hg
090° 9kts
TAF KNIP 0323/0423 05008KT 9999 BKN007 BKN040 QNH3024INS
   FM040400 VRB04KT 4800 BR BKN004 QNH3024INS
   FM040800 VRB03KT 3200 BR OVC004 QNH3022INS
   TEMPO 0408/0414 0800 FG OVC003
   FM041500 06007KT 9999 SCT015 BKN030 QNH3025INS
   FM041800 09009KT 9999 SCT030 BKN045 QNH3020INS AUTOMATED SENSOR METWATCH 0404 TIL 0410 TX26/0420Z TN15/0411Z FN20115
KNIP
EffectiveExpiresCategoryNOTAM
Military
2/28/26
1400Z
2/28/26
1900Z
RunwayRWY 10/28 CLSD EXC ACFT IN DISTRESS OR DIVERT EMER.
2/25/26
1400Z
2/25/26
1700Z
RunwayRWY 10/28 CLSD FOR ARRESTING GEAR MAINTENANCE 1400-1700Z.
2/19/26
1856Z
4/30/26
2359Z
AerodromeAERODROME TAXIWAY FOXTROT CLSD DUE TO CONSTRUCTION.
2/18/26
1242Z
5/15/26
1200Z
AerodromeAERODROME CLSD TOWER OPS NOT AUTHORIZED DAILY FROM 1100Z TO 1159Z FOR OPENING CHECKS
2/9/26
2112Z
3/1/26
0601Z
AerodromeAERODROME OPEN FROM 0400Z-0600Z FOR DIVERTS OPS ONLY
1/7/26
1358Z
4/1/26
1200Z
NEW CHANGES TO PUBLISHED HOURS OF OPERATIONS. MONDAY - SATURDAY 1200Z UNTIL 0400Z.
12/18/25
1408Z
2/28/26
2359Z
PAPIS OTS UNTIL FURTHER NOTICE.
12/15/25
1200Z
3/14/26
0459Z
NAVAL AIR STATION JACKSONVILLE FLIGHT PLANNING BRANCH CLOSED, IN PERSON SERVICES NO LONGER PROVIDED.
12/8/25
1152Z
3/6/26
1200Z
HELO PAD 1 CLOSED.
Yes
1200-0400Z
OPR 1200-0400Z (DT 1100-0300) DLY. CLSD FEDERAL HOLS; OT BY NOTAM.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR STATION
JACKSONVILLE, FL 32212
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
NIP
--
ACTIVATE-ALSF-1 RWY 10; SALSF RWY 28; PAPI RWY 10 & 28; HIRL RWY 10/28 - 134.775.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 10/28

9003 ft. x 200 ft.
ASPH
Fair
NONE
HIGH
66/F/A/W/T
--
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 30° 13' 54"N 30° 13' 54"N
Longitude 81° 41' 35"W 81° 39' 52"W
Elevation 22' 8'
Threshold Crossing Height 51 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF1 ALSF1
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 14/32

5978 ft. x 200 ft.
ASPH
Fair
NONE
HIGH

--
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 30° 14' 33"N 30° 13' 52"N
Longitude 81° 40' 44"W 81° 39' 55"W
Elevation 12' 7'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-12JASU: 1(NCPP-105) 2(NC-8)
A110-14FLUID: LOCAL SQUADRONS CTC CRYOGENIC PLANT FOR LOX SVC, DSN 942-3818, C904-542-3818, 1200-2030Z++ MON-FRI. LOX SERVICE IS NOT AVAILABLE FOR TRANSIENT AIRCRAFT.
A110-16TRANS ALERT: LTD TRAN MAINT, SVC AND SPACE. ACFT STAIRS AVBL 1230-0300Z++ DLY WITH 24 HR NTC.
A110-17RSTD: TRAN JET ACFT VFR TGL NA WO CRS RULES BRF. ALL ACFT CTC FLT PLNG 310.2, 134.775 15 MIN PRIOR TO LDG.
A110-18CAUTION: EXER EXTREME VIGILANCE DUR IFR APCH RWY 10 IN VMC DUE TO GENERAL AVIATION ACFT VICINITY CECIL FLD.
A110-19CAUTION: UNSHIELDED LGT AT BALLFIELD NIP 216/2.4 NM ON RWY 10 APCH.
A110-2048 HR PPR NTC REQ EXC AIREVAC, JOSAC, NALO, AND LIFEFLTS, CTC BASEOPS DSN 942-5211, C904-542-2511. BOQ DSN 942-3138/3427/3139.
A110-22NS ABTMT: STOP LDG ONLY MON-SAT BTN 0300-1300Z++ & SUN BTN 0300-1700Z++.
A110-23CSTMS/AG/IMG: ACFT RQR INSPECTION CTC AFLD MGR DSN 942-3176, C904-542-3176 AT LEAST 48 HRS PRIOR TO ARR TO COORD INSPECTION SETUP.
A110-24MISC: VIP ACFT CTC BASE OPS PRIOR LDG.
A110-25CAUTION: TO PRECLUDE TAIL HOOK SKIP DURG A-GEAR ENGAGEMENT, AVOID RWY 10/28 CNTRLN LGTS LCTD 24 INCHES SOUTH OF RWY CNTRLN. MAX SAFE OFF-CNTR ARRESTMENT 40 FT.
A110-26RSTD: AFLD CLSD 2ND WED OF EV MONTH FOR AFLD MAINT FR 1200-1600Z++.
A110-27RSTD: PPR FOR ALL TRAN ACFT EXC AIREVAC AND LIFEFLTS, CTC AFLD MGR 48 HR PRIOR TO ARR FOR PPR NR. PPR & CALP REQ WILL CALL DSN 942-3176, C904-542-3176. BOQ DSN 942-3138/3427/3139.
A110-28MISC: CTC NAVAL ATLANTIC MET FAC JACKSONVILLE FOR WX ADVSY OR WX FCST DSN 942-2541, C904-542-2541.
A110-31CAUTION: MAT AREAS N OF RWY 10/28 NOT AUTHORIZED FOR ACFT USE.
A110-32CAUTION: EXTREME BIRD HAZ DUR SUMMER MONTHS. CTC TWR FOR CURRENT BASH COND.
A110-33CAUTION: SKYDIVING AND GLIDER OPERATIONS , SFC TO 10,000 FT, 7 MILES, IN VICINITY OF HERLONG ARPT, BTN SR & SS.
A110-34MISC: AIRCREWS ARE RESPONSIBLE FOR THEIR ON/OFF BASE TRANSPORTATION. AIRCREWS COORDINATE FOR CLASSIFIED MATERIAL STORGE WITH NCTAMSLANT AT DSN 942-3777 24 HR NTC.
A110-36MISC: WX FCST SVC AVBL 0900-0100Z++ MON-FRI. ALL OTHER HOURS WX OBSERVER ONLY. CTC FWC-N AVN CP JAX AT DSN 942-2535 C904-542-2535. CTC NAVAL AVAITION FCST CNTR FOR WX ADVSY OR WX FCST DSN 564-2594, C757-444-2594 DURING OTHER HRS.
A110-37JASU -1(NC-10) 1 (MSU-200NAVIA/U47A-5(HUFFER) QLFD AIRCREW RQRD.
A110-38AMC TRML-HRS 1230-0300++ MON-FRI.
A110-39A-GEAR: RWY 10-28 A-G RIGGED UPON REQ 15 MIN NTC FOR ARRESTMENT ON RWY 10-28.
A17-M5OPR 1200-0400Z (DT 1100-0300) DLY. CLSD FEDERAL HOLS; OT BY NOTAM.
A40-10/28FOR ACFT OPR IAW NASJAXINST 3710.1.
A43-10OPTICAL LANDING SYSTEM (OLS) & WAVE-OFF
A43-28OPTICAL LANDING SYSTEM (OLS) & WAVE-OFF
A49-32OLS & WAVE-OFF
A70-J5J5 FUELS DIV DSN 942-3906, C 904-542-3906
A81-APTACTIVATE-ALSF-1 RWY 10; SALSF RWY 28; PAPI RWY 10 & 28; HIRL RWY 10/28 - 134.775.
E147TRAN JET ACFT EXP RGT TFC RWY 10.
E60-10_E28HOOK E28(B) (2190 FT)
E60-14_E28HOOK E28(B) 1229 FT)
E60-28_E28HOOK E28(B) (1995 FT)
JACKSONVILLE NAS (TOWERS FLD) (ICAO: KNIP, IATA: NIP) is a private airport located in JACKSONVILLE, FL, US.
