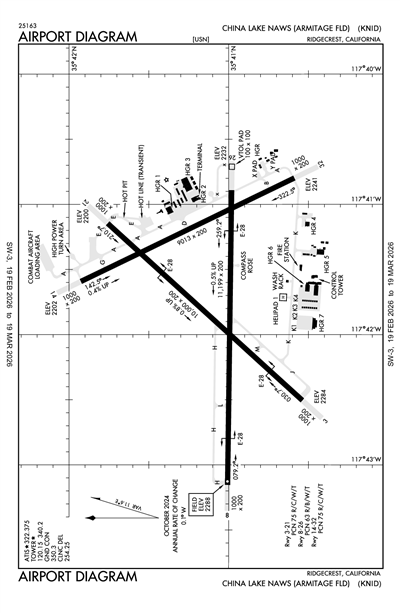

CHINA LAKE NAWS (ARMITAGE FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNID
ICAO KNIDIATA NIDLocal NID
CHINA LAKE NAWS (ARMITAGE FLD)
PrivatePVT

3 miles NW of CHINA LAKE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 41' 07"N 117° 41' 43"W
Elevation
2288' MSL
Pattern Alt
3288' MSL
Mag Variation
12°E
Declination
14°E
Fuel
None Listed
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KNID VFR
10:56 PM PST
Clear
10sm
47°F
35°F
30.08"Hg
220° 7kts
AO2 SLP181 T00830017 $
METAR KNID 040656Z AUTO 22007KT 10SM CLR 08/02 A3008 RMK AO2 SLP181 T00830017 $
+ Add Your Business

KNID FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

VFR Advisory 126.55
VFR Advisory 127.5
VFR Advisory 133.65

Tower

CHINA LAKE TOWER 120.15
1530-0630Z++ MON-FRI; CLSD ALTN FRI. 2300-0000Z++ SUN. OPN 1530-2030Z++, CLSD 2030Z++, OPN 2300-0000Z++ 1ST WORKING/ NON-HOL FRI OF THE MONTH. SAT-SUN OPR BY PPR/LCL USE ONLY.

Approach

JOSHUA APPROACH 133.65

Departure

JOSHUA DEPARTURE 133.65

Emergency

Emergency 121.5

Terminal Area Forecast

KNID
Tue, 3/3 4:17 PM PST
Tue, 3/3 3:00 PM PST - Wed, 3/4 3:00 PM PST
VFR
3:00 PM PST - 12:00 PM PST
Scattered 25,000'
Few 18,000'
6sm
29.94"Hg
VRB° 5kts
VFR
Becoming 12:00 PM PST - 3:00 PM PST
Sky Clear
6sm
29.88"Hg
210° 7kts
Gusts 15kts
TAF COR KNID 0323/0423 VRB05KT 9999 FEW180 SCT250 QNH2995INS
   BECMG 0420/0422 21007G15KT 9999 SKC QNH2988INS TX24/0422Z TN08/0413Z AUTOMATED SENSOR METWATCH 0323 TIL 0415 COR 0003 FS30230
KNID
EffectiveExpiresCategoryNOTAM
Military
3/4/26
1500Z
3/6/26
0100Z
UTILIZE EXTREME CAUTION TAXING TO RUNWAY 21. CRANE OPS .5 NM EAST OF APPROACH END RUNWAY 21. 30?
3/3/26
1740Z
3/6/26
1740Z
M0059/26 NOTAMC M0058/26
3/2/26
1832Z
5/30/26
2359Z
HOT PIT CLSD DUE TO CONSTRUCTION UNTIL FUTHER NOTICE.
3/2/26
1831Z
5/30/26
2359Z
RunwayRWY 08 PAPI OUT OF SERVICE UNTIL FURTHER NOTICE.
3/2/26
1830Z
5/30/26
2359Z
TaxiwayTWY J CLOSED FROM RWY26 TO TWY M.
3/2/26
1828Z
5/30/26
2359Z
HOURS ON THE FIRST WORKING FRIDAY OF EVERY MONTH ARE AS FOLLOWS: 1530Z-2030Z (0730L-1230L) AND 2300Z-0130Z (1500L-1730L).
3/2/26
1827Z
5/30/26
2359Z
RunwayRUNWAY 26 SHORT FIELD GEAR, RUNWAY 08 LONG FIELD GEAR UNAVAILABLE UNTIL FURTHER NOTICE.
2/20/26
2004Z
4/30/26
2359Z
AerodromeAERODROME RUNWAY 32 VFR RUNWAY.  NO INSTRUMENT MARKINGS OR LIGHTS AVAILABLE.
2/17/26
1400Z
4/30/26
2359Z
RunwayRWY 14/32 UAS OPERATIONS ONLY (LANDINGS, DEPARTURES AND TAXI). CONTACT ATC FOR SPECIFIC RUNWAY RESTRICTIONS.
2/17/26
1400Z
4/30/26
2359Z
RunwayRWY 14/32 FIXED WING AIRCRAFT TAXI AUTHORIZED ONLY ON CONCRETE PORTIONS OF RUNWAY 32/14.
Yes
MON-FRI 1530-0630Z++
SUN 2300-0100Z++
CLSD ALTN FRI. OPEN 1530-2030Z++, CLSD 2030-2300Z++, OPEN 2330-0100Z++ 1ST WORKING/NON-HOL FRI OF THE MONTH. SAT-SUN OPR BY PPR/LCL USE ONLY. SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
NAVAL AIR FACILITY
CHINA LAKE, CA 93555
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
NID
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 03/21

10000 ft. x 200 ft.

CONC
NONE
HIGH
75/R/C/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 40' 32"N 35° 41' 45"N
Longitude 117° 42' 30"W 117° 41' 09"W
Elevation 2,284' 2,201'
Threshold Crossing Height -- 57 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 08/26

11199 ft. x 200 ft.

CONC
NONE
HIGH
63/R/B/W/T
--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 41' 00"N 35° 40' 59"N
Longitude 117° 43' 09"W 117° 40' 53"W
Elevation 2,288' 2,232'
Threshold Crossing Height 45 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 14/32

9014 ft. x 200 ft.

ASPH
NONE
HIGH
75/R/C/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 154°334°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 41' 56"N 35° 40' 35"N
Longitude 117° 41' 36"W 117° 40' 48"W
Elevation 2,203' 2,241'
Threshold Crossing Height 52 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-10TRAN ALERT - EXP SVC DELAY. LTD TRAN SVC AVBL 1530-0300Z++ MON-FRI.
A110-11RSTD - PPR DSN 437-5301. ALL PPR ISSUED 1530-0630Z++ WEEKDAYS ONLY.
A110-13CSTMS/AG/IMG - CSTMS NOT AVBL. ACFT ENTERING FR FOREIGN COUNTRIES MUST CLEAR CSTMS PRIOR ARR.
A110-14MISC - TRAN ACFT TO/FR CHINA LAKE NID MUST CTC R2508 COMPLEX CONTROL BOARD FOR SKED/BRIEF PRIOR TO OBTAINING A PPR. PORTIONS OF APCH END RWY 26 AND ADJ TWY NOT VISIBLE FR TWR.
A110-15MISC: LTD PAX SVC AVBL.
A110-16SERVICE LGT: RWY 03/21, RWY 08/26 AND 14/32 MRKD AND LGTD 200 FT WIDE.
A110-17RSTD: PPR CIVIL ACFT OFFL BUS. FOR CALP REQS CTC AIRFIELD MGR 760-939-5032 OR TRML 760-939-5301. RSTD AFLD HRS SUBJ CHG. PILOTS FILING KNID CHINA LAKE AS AN ALTN OR EMERG DIV ARE ADZD TO CALL BASE OPS DSN 437-5475 TO VFY OPERG HRS.
A110-18CAUTION - BIRD HAZ NEAR GOLF CRS, WI CLASS D AIRSPACE, OCT-APR.
A110-19CAUTION: TWY B AND TWY G NOT LGTD.
A110-20CAUTION: TWY C CLSD.
A110-6JASU - 3(GTC-85), 5(NC-10A1), 1(NC-10B), 1(NC-10C), 7(AM32A-108), 4(A/M47A-4), 4(MSU-200).
A110-7FUEL - F24- AVBL 1400-0700Z++ MON-THU; 1400-0430Z++ ALT THU-FRI; 2200-0700Z++ SUN
A110-9OIL - O-133-156.
A17-M1CLSD ALTN FRI. OPEN 1530-2030Z++, CLSD 2030-2300Z++, OPEN 2330-0100Z++ 1ST WORKING/NON-HOL FRI OF THE MONTH. SAT-SUN OPR BY PPR/LCL USE ONLY. SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO.
A49-14OLS
A49-21OLS
A49-32OLS
A81-APTAVBL ONLY DURING HRS OF OPERATION.
E147TFC PAT - REDUCED RWY SEPARATION STD IN EFF USN/USMC ACFT. NS ABTMT - DEP AVOID OVFT CHINA LAKE AND CITY OF RIDGECREST 2 NM SSE.
E60-03_E28HOOK E28(B) (1657 FT).
E60-08_E28HOOK E28(B) (1765 FT).
E60-21_E28HOOK E28(B) (2793 FT).
E60-26_E28HOOK E28(B) (1545 FT).
E68-03HORIZONTAL DATUM WGS84.
E68-08HORIZONTAL DATUM WGS84.
E68-14HORIZONTAL DATUM WGS84.
E68-21HORIZONTAL DATUM WGS84.
E68-26HORIZONTAL DATUM WGS84.
E68-32HORIZONTAL DATUM WGS84.
CHINA LAKE NAWS (ARMITAGE FLD) (ICAO: KNID, IATA: NID) is a private airport located in CHINA LAKE, CA, US.
