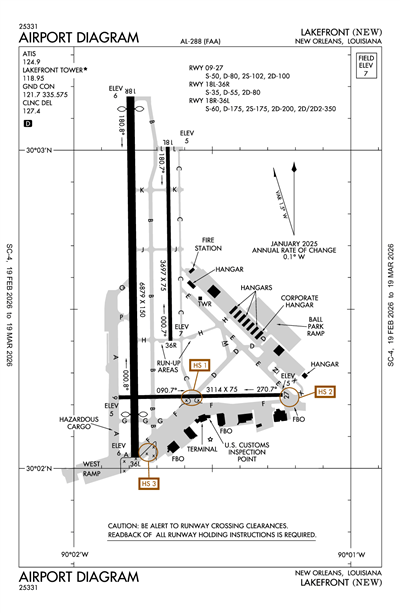

LAKEFRONT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNEW
ICAO KNEWIATA NEWLocal NEW
LAKEFRONT
PublicPUB

4 miles NE of NEW ORLEANS, LA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 02' 33"N 90° 01' 42"W
Elevation
7' MSL
Pattern Alt
1007' MSL
Mag Variation
1°W
Declination
2°E
Fuel
JET A, 100LL
FSS
DE RIDDER (DRI)
Sectional
NEW ORLEANS
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KNEW VFR
3:53 AM CST
Overcast 8,000'
Few 1,200'
10sm
71°F
67°F
30.14"Hg
130° 7kts
AO1 SLP200 T02170194
METAR KNEW 040953Z AUTO 13007KT 10SM FEW012 OVC080 22/19 A3014 RMK AO1 SLP200 T02170194
+ Add Your Business

KNEW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.9
ASOS (504) 245-4366

Common

CTAF 118.95
WHEN TWR CLSD ACTVT MALSR RWY 18R; MIRL RWY 18R/36L; TWY B, C, D, E, F, H, EAST HNGRLN - PRESET LOW INTST. ACTVT 5 CLICKS FOR MED AND 7 CLICKS FOR HIGH - CTAF.

Clearance

Clearance Delivery 127.4
WHEN NEW TWR CLSD
Clearance Delivery 127.4

Ground

LAKEFRONT GROUND 121.7
0700-2100

Tower

LAKEFRONT TOWER 118.95
0700-2100

Arrival

AWDAD STAR 125.5
WEST
MNSTR STAR 133.15
EAST
OLEDD STAR 125.5
WEST

Approach

NEW ORLEANS APPROACH 123.85
SOUTH
NEW ORLEANS APPROACH 133.15
NORTH

Departure

NEW ORLEANS DEPARTURE 123.85
SOUTH
NEW ORLEANS DEPARTURE 133.15
NORTH

Flight Service

Flight Service 122.6
(DRI)

Terminal Area Forecast

KNEW
Tue, 3/3 11:24 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
12:00 AM CST - 4:00 AM CST
Overcast 1,200'
6sm
130° 10kts
MVFR
4:00 AM CST - 8:00 AM CST
Broken 1,000'
Scattered 300'
6sm
130° 8kts
VFR
8:00 AM CST - 10:00 PM CST
Scattered 6,000'
Few 3,000'
6sm
120° 8kts
VFR
10:00 PM CST - 11:00 PM CST
Scattered 3,500'
Scattered 800'
6sm
120° 8kts
IFR
11:00 PM CST - 12:00 AM CST
Broken 3,500'
Broken 800'
6sm
120° 8kts
TAF KNEW 040524Z 0406/0506 13010KT P6SM OVC012
   FM041000 13008KT P6SM SCT003 BKN010
   FM041400 12008KT P6SM FEW030 SCT060
   FM050400 12008KT P6SM SCT008 SCT035
   FM050500 12008KT P6SM BKN008 BKN035
KNEW
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
1920Z
5/28/26
0500Z
!NEW 02/029 NEW OBST TOWER LGT (ASR 1037768) 295912.20N0900303.60W (3.5NM SSW NEW) 353.0FT (357.0FT AGL) U/S 2602271920-2605280500
2/25/26
0838Z
4/11/26
0238Z
!NEW 02/027 NEW OBST TOWER LGT (ASR 1028290) 295858.00N0895658.00W (5.4NM SE NEW) 1049.2FT (1049.2FT AGL) U/S 2602250838-2604110238
2/21/26
2330Z
3/21/26
2330Z
!NEW 02/026 NEW OBST TOWER LGT (ASR 1022409) 295714.00N0895658.00W (6.6NM SE NEW) 1048.9FT (1045.9FT AGL) U/S 2602212330-2603212330
2/14/26
0233Z
3/15/26
2300Z
!NEW 02/016 NEW OBST TOWER LGT (ASR 1045170) 295343.00N0900019.00W (8.8NM S NEW) 231.3FT (230.3FT AGL) U/S 2602140233-2603152300
2/12/26
1740Z
3/29/26
1739Z
!NEW 02/015 NEW OBST TOWER LGT (ASR 1300473) 300732.50N0895202.50W (9.8NM ENE NEW) 406.8FT (399.9FT AGL) U/S 2602121740-2603291739
2/9/26
1438Z
3/12/26
2300Z
!NEW 02/010 NEW OBST TOWER LGT (ASR 1045167) 295353.00N0900023.00W (8.7NM S NEW) 270.0FT (269.0FT AGL) U/S 2602091438-2603122300
2/9/26
1202Z
3/26/26
1201Z
!NEW 02/009 NEW OBST TOWER LGT (ASR 1027930) 294831.00N0894542.00W (19.6NM SE NEW) 1032.2FT (1032.2FT AGL) U/S 2602091202-2603261201
1/23/26
1623Z
4/23/26
0500Z
!NEW 01/022 NEW OBST TOWER LGT (ASR 1022280) 295923.70N0900407.20W (3.8NM SW NEW) 347.1FT (347.1FT AGL) U/S 2601231623-2604230500
1/23/26
1621Z
4/23/26
0500Z
!NEW 01/021 NEW OBST TOWER LGT (ASR 1026699) 295600.70N0900240.30W (6.6NM S NEW) 501.0FT (499.0FT AGL) U/S 2601231621-2604230500
FDC
3/3/26
2220Z
4/3/26
2220Z
!FDC 6/3094 NEW IAP LAKEFRONT, NEW ORLEANS, LA.
ILS OR LOC RWY 18R, AMDT 1A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HRV VORTAC OUT OF SERVICE. 2603032220-2604032220EST
2/17/26
1934Z
!FDC 6/5275 NEW IAP LAKEFRONT, NEW ORLEANS, LA.
ILS OR LOC RWY 18R, AMDT 1A...
VOR/DME RWY 36L, AMDT 9A...
CIRCLING CAT A/B MDA 540/HAA 532.
TEMPORARY CRANE, 182 MSL, 1649FT EAST OF KNEW AIRPORT (2024-ASW-12982-OE).
2602171934-2609292355EST
Yes
ALL
ORLEANS LEVEE DISTRICT
6001 STARS AND STRIPES BLVD SUITE 204
NEW ORLEANS, LA 70126
Phone: 504-243-4010
BRUCE MARTIN
6001 STARS & STRIPES BLVD SUITE 204
NEW ORLEANS, LA 70126
Phone: 504-243-4010
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
NEW
--
WHEN TWR CLSD ACTVT MALSR RWY 18R; MIRL RWY 18R/36L; TWY B, C, D, E, F, H, EAST HNGRLN - PRESET LOW INTST. ACTVT 5 CLICKS FOR MED AND 7 CLICKS FOR HIGH - CTAF.
FOR ARPT BCN CTC ATCT.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

3114 ft. x 75 ft.
ASPH
Fair
NONE
MED

50,000lbs
80,000lbs
100,000lbs
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD FAIR
Latitude 30° 02' 13"N 30° 02' 14"N
Longitude 90° 01' 50"W 90° 01' 15"W
Elevation 5' 5'
Threshold Crossing Height 40 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3.2°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 18L/36R

3697 ft. x 75 ft.
ASPH
Good
NONE
MED

35,000lbs
55,000lbs
80,000lbs
--
  Runway 18L Runway 36R
True Heading 179°359°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 30° 03' 01"N 30° 02' 24"N
Longitude 90° 01' 40"W 90° 01' 39"W
Elevation 5' 7'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18R/36L

6879 ft. x 150 ft.
ASPH
Good
GRVD
MED

60,000lbs
175,000lbs
200,000lbs
350,000lbs
  Runway 18R Runway 36L
True Heading 179°359°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 30° 03' 10"N 30° 02' 02"N
Longitude 90° 01' 48"W 90° 01' 47"W
Elevation 6' 6'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1PPR REQUIRED FOR ACFT TRNSPG ANY ITEMS LISTED IN PART 175 TITLE 49. CONTACT 504-606-9264
A110-10TWY A UNEVEN PAVEMENT.
A110-11FOR ASSTNC AFTER 2100 LOCAL CTC AMGR 504-874-0459
A110-13FOR FICONS AFTER HRS CALL ARFF 504-606-9264.
A110-14BOAT MASTS UP TO 80 FT WI 0.5NM OF AER RWY 27.
A110-15ARPT WINDCONE FOR BALL PARK RAMP LGTS OTS PERMLY.
A110-16CAUTION TWY F BTN TRML RAMP AND FLT LN FST RAMP IREG SFC.
A110-17FOR CD WHEN ATCT IS CLSD CTC MSY APCH AT 504-471-4350 OR 127.4
A110-18CTC ARPT MGR FOR DSGND RAMP SPACE FOR PUB USE AT ARPT
A110-2BIRDS ON & INVOF ARPT.
A110-4BOATS AS HIGH AS 80 FT PASS WI 400 FT OF RWY 09 THLD.
A110-6ARFF CPBLTY EQUIVALENT TO INDEX B.
A110-7FUEL NOT AVAILABLE WITHIN 100' OF TERMINAL BUILDING
A33-18R/36L_CONDFEW LOW SPOTS NEAR INTERSECTION OF RY 09/27-HOLDING WATER.
A43-36RRWY 36R PAPI UNUSBL BTN 2100 AND 0700 LOCAL
A52-18RPIER.
A57-18RAPCH RATIO 50:1 FM DSPLCD THR.
A57-36LAPCH RATIO 32:1 AT DSPLCD THR; +77' SILO 2500'; 580' R.
A58-36L+7 FT WALL 150 FT FM RY END.
A75-TOVERNIGHT PARKING ON TERMINAL RAMP MUST BE COORDINATED WITH FBO
A81-APTWHEN TWR CLSD ACTVT MALSR RWY 18R; MIRL RWY 18R/36L; TWY B, C, D, E, F, H, EAST HNGRLN - PRESET LOW INTST. ACTVT 5 CLICKS FOR MED AND 7 CLICKS FOR HIGH - CTAF.
A81-BCNFOR ARPT BCN CTC ATCT.
LAKEFRONT (ICAO: KNEW, IATA: NEW) is a public airport located in NEW ORLEANS, LA, US.
