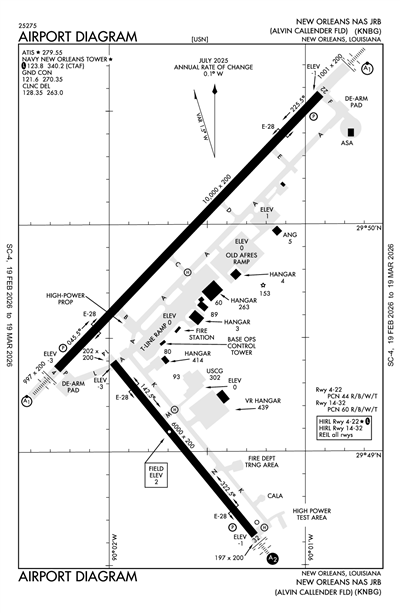

NEW ORLEANS NAS JRB (ALVIN CALLENDER FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNBG
ICAO KNBGIATA NBGLocal NBG
NEW ORLEANS NAS JRB (ALVIN CALLENDER FLD)
PrivatePVT

3 miles S of NEW ORLEANS, LA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 49' 38"N 90° 01' 36"W
Elevation
2' MSL
Pattern Alt
1002' MSL
Mag Variation
1°W
Declination
0°
Fuel
None Listed
FSS
DE RIDDER (DRI)
Sectional
NEW ORLEANS
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KNBG MVFR
7:55 PM CST
Overcast 2,500'
Broken 1,000'
10sm
73°F
69°F
30.16"Hg
130° 12kts
Gusts 18kts
AO2 SLP213 T02280206 $
METAR KNBG 040155Z 13012G18KT 10SM BKN010 OVC025 23/21 A3016 RMK AO2 SLP213 T02280206 $
+ Add Your Business

KNBG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Clearance

Clearance Delivery 128.35

Ground

NAVY NEW ORLEANS GROUND 121.6
1300-0500Z++ MON-FRI, 1500-2300Z++ SAT,SUN; CLSD HOL EXC BY NOTAM.

Tower

NAVY NEW ORLEANS TOWER 123.8
1300-0500Z++ MON-FRI, 1500-2300Z++ SAT,SUN; CLSD HOL EXC BY NOTAM.

Arrival

MNSTR STAR 133.15
EAST

Approach

NEW ORLEANS APPROACH 123.85

Departure

NEW ORLEANS DEPARTURE 123.85

Emergency

Emergency 121.5

Terminal Area Forecast

KNBG
Tue, 3/3 5:00 PM CST
Tue, 3/3 5:00 PM CST - Wed, 3/4 5:00 PM CST
VFR
5:00 PM CST - 9:00 PM CST
Broken 4,000'
6sm
30.09"Hg
150° 8kts
VFR
Temporary 5:00 PM CST - 9:00 PM CST
Broken 3,500'
Scattered 2,000'
N/A
160° 12kts
Gusts 22kts
IFR
9:00 PM CST - 3:00 AM CST
Mist
Broken 2,000'
Scattered 1,000'
1.99sm
30.12"Hg
120° 4kts
LIFR
Temporary 10:00 PM CST - 3:00 AM CST
Mist
Obscured
0.5sm
Calm
IFR
3:00 AM CST - 9:00 AM CST
Mist
Broken 1,500'
Broken 500'
2.98sm
30.12"Hg
140° 7kts
VFR
9:00 AM CST - 4:00 PM CST
Broken 6,000'
Scattered 1,500'
Scattered 600'
6sm
30.09"Hg
150° 8kts
MVFR
4:00 PM CST - 5:00 PM CST
Showers in vicinity
Overcast 10,000'
Broken 3,000'
Broken 1,500'
6sm
30.12"Hg
160° 10kts
TAF KNBG 0323/0423 15008KT 9999 BKN20 BKN040 QNH3009INS
   TEMPO 0323/0403 16012G22KT SCT020 BKN035
   FM040300 12004KT 3200 BR SCT010 BKN020 QNH3011INS
   TEMPO 0404/0409 0800 BR VV002
   FM040900 14007KT 4800 BR BKN005 BKN015 QNH3011INS
   FM041500 15008KT 9999 NSW SCT006 SCT015 BKN060 BKN250 QNH3010INS
   FM042200 16010KT 9999 VCSH BKN015 BKN030 OVC100 QNH3012INS AUTOMATED SENSOR METWATCH 0405 TIL 0411 TX25/0421Z TN14/0412Z FN20093
KNBG
EffectiveExpiresCategoryNOTAM
Military
2/23/26
1556Z
2/26/26
1556Z
M0076/26 NOTAMC M0071/26
2/23/26
1456Z
2/26/26
1456Z
V0006/26 NOTAMC V0003/26
2/23/26
1456Z
2/26/26
1456Z
V0005/26 NOTAMC V0001/26
2/23/26
1319Z
2/26/26
1319Z
M0075/26 NOTAMC M0073/26
2/23/26
1318Z
3/6/26
1400Z
Services!KNBG M0074/26 NBG SVC PRECISION APPROACH RADAR U/S FROM 22FEB26 0800L UNTIL 06MAR26 0800L. 2602231318-2603061400
2/19/26
1501Z
5/19/26
0600Z
REVIEW HRV NOTAMS FOR TACAN STATUS.
2/5/26
1927Z
5/4/26
2300Z
FUEL NOZZLE MAN OPERATOR REQUIRED FOR ALL TRANSIENT AIRCRAFT.
12/19/25
2216Z
3/15/26
0500Z
Taxiway!KNBG M0534/25 NBG TWY A EDGE LGTS AT TWY A B-F U/S 2512192216-2603150500
Yes
MON-FRI 1300-0500Z++
SAT-SUN 1600-0000Z++
CLSD HOL EXC BY NOTAM.
CLSD HOL EXCEPT BY NOTAM.
U S NAVY
OCEANOGRPAHIC OFC-CODE 3142
WASHINGTON, D C 20373
COMMANDING OFFICER
NAS NEW ORLEANS
NEW ORLEANS, LA 70146
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
NBG
--
PCL 123.8 OR 340.2.
N/A
N/A
No
No
None
NoAirport of Entry
None
None
None
None
None

Runway 04/22

10000 ft. x 200 ft.
PEM
Good
NONE
HIGH
44/R/B/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 44°224°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 49' 25"N 29° 50' 36"N
Longitude 90° 02' 14"W 90° 00' 55"W
Elevation -3' -1'
Threshold Crossing Height 49 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

6000 ft. x 200 ft.
PEM
Good
NONE
HIGH
60/R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 141°321°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 49' 24"N 29° 48' 38"N
Longitude 90° 01' 59"W 90° 01' 16"W
Elevation -2' -1'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALS
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10CSTMS/AG/IMG - AVBL TO MIL ACFT/PERS ONLY, COORD WITH AIRFIELD SERVICES DSN 678-3602, C504-678-3602. OTHER CSTMS REQUIREMENTS CTC C504-623-6600 FOR APPOINTMENT.
A110-11TRAN ALERT: OPR 1300-0500Z++.
A110-12CAUTION: NUMEROUS CIV ACFT OPR TO/FR CANALS VCNTY AFLD.
A110-14SERVICE - A-GEAR: MAINTAINED IN RAISED POSN AND IN BATTERY AT ALL TIMES, DO NOT LAND DRCT ON A-GEAR CABLES.
A110-15CG - OPR RSTD 0500-1300Z++ TO CG. DSN 678-3515, C504-678-6032.
A110-20JASU: 4(A/M-47A-4) 4(NC-10) LTD DC PWR.
A110-21FUEL: OPR 1330-0430Z++. FUEL DELAYS FRI-SUN. TRAN ACFT EXP SOME DELAY FOR SVC OUTSIDE NML WORKING HR. J8
A110-22OIL: O-128-156.
A110-23FLUID: PRESAIR LHOX LOX.
A110-24CAUTION: BIRD HAZ.
A110-26OT CIV ACFT TRNS CLASS D, CTC ATC ON 123.8 FOR CLNC.
A110-27SERVICE: NO LAV SERVICES AVBL.
A110-3CAT B AFLD.
A110-30SERVICE: L-AOE.
A110-32SERVICE-LGTS: CARRIER DECK LIGHTING ON RWY 04 FOR FCLP'S AVBL UPON REQ ONE HR PRIOR. CARRIER DECK RWY 32 UNLIT; VFR/DAY USE ONLY
A110-33ANG- LA ANG AM OPS OPR 1330-2130Z++ TUES-FRI AND UNIT TRNG ACT WEEKEND.LA ANG AM OPS, DSN 457-8637, C504-391-8637, FAX DSN 457-8671, C504-391-8671
A110-34FIRE DEPT STS CAT II.
A110-35BASE OPS DSN 678-3101, C504-678-3101 OR FAX DSN 678-9575, C504-678-9575
A110-36CAUTION: 180 DEG TURNS AND PIVOTS ON ASPH UNAUTHD.
A110-37SERVICE LGT- DOUBLE YELLOW TWY END LGT AT END OF TWY K/O, L AND P NOT INSTLD.
A110-38SERVICE: LGT- PILOT CNTRLD AFLD LGT ARE NSTD. ONLY PCL RWY 4/22 HIRL AND RWY 32 SALS. RESPONSE TIME FOR PCL IS NSTD WITH APPROX 10 SEC DELAY FROM PILOT INPUT TO LIGHT INTENS CHANGE
A110-39FOR CIV ACFT LDG PMT (CALP) INFO CTC AFLD MGR C504-678-4592.
A110-40RSTD - PPR ALL ACFT 24 HR PN, SHORT NOTICE PPR'S APPROVED ON A CASE-BY-CASE BASIS DSN 678-3602/3, C504-678-3602/3.
A110-8NUMEROUS BIRDS ON & INVOF ARPT.
A17-D1CLSD HOL EXC BY NOTAM.
A17-D2CLSD HOL EXCEPT BY NOTAM.
A40-04/22PCL NSTD. 3 CLICKS RWY 04 MED INTS. 5 CLICKS RWY 22 MED INTS. 7 CLICKS RWY 04 HI INTS. TTINGS.
A40-14/32MED INTS ALL SETTINGS.
A49-04OLS & WAVE-OFF.
A49-22OLS & WAVE-OFF.
A49-32RWY 32 - OLS.
A81-APTPCL 123.8 OR 340.2.
E147TFC PAT: OVERHEAD BREAK ALT 1500'. PAT ALT 1000'.
E60-04_E28HOOK E28 (B) (1500')
E60-14_E28HOOK E28(B) (1025')
E60-22_E28HOOK E28(B) (1501')
E60-32_E28HOOK E28(B) (1025')
NEW ORLEANS NAS JRB (ALVIN CALLENDER FLD) (ICAO: KNBG, IATA: NBG) is a private airport located in NEW ORLEANS, LA, US.
