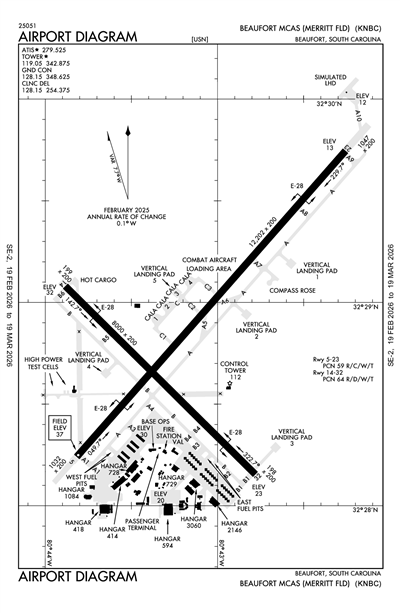

BEAUFORT MCAS (MERRITT FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNBC
ICAO KNBCLocal NBC
BEAUFORT MCAS (MERRITT FLD)
PrivatePVT

3 miles NW of BEAUFORT, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 28' 50"N 80° 43' 09"W
Elevation
37' MSL
Pattern Alt
1037' MSL
Mag Variation
8°W
Declination
5°W
Fuel
None Listed
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KNBC VFR
5:56 PM EST
Few 5,000'
7sm
71°F
61°F
30.23"Hg
170° 7kts
AO2 SLP236 T02170161
METAR KNBC 042256Z 17007KT 7SM FEW050 22/16 A3023 RMK AO2 SLP236 T02170161
+ Add Your Business

KNBC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Clearance

Clearance Delivery 128.15

Ground

BEAUFORT GROUND 128.15
OPR 1200-0400Z++ MON-THU, 1200-2400Z++ FRI, 2000-2200Z++ SUN, CLSD SAT AND HOL, OT BY NOTAM.

Tower

BEAUFORT TOWER 119.05
OPR 1200-0400Z++ MON-THU, 1200-2400Z++ FRI, 2000-2200Z++ SUN, CLSD SAT AND HOL, OT BY NOTAM.

Approach

BEAUFORT APPROACH 123.7
3000 FT & BLW
BEAUFORT APPROACH 125.125
ABV 3000 FT

Departure

BEAUFORT DEPARTURE 123.7
3000 FT & BLW
BEAUFORT DEPARTURE 125.125
ABV 3000 FT

Center

BEAUFORT CENTER 132.925
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC (SAVANNAH RCAG) ON FREQS 132.925/363.2 WHEN BEAUFORT APCH CTL CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KNBC
Wed, 3/4 4:14 PM EST
Wed, 3/4 4:00 PM EST - Thu, 3/5 4:00 PM EST
VFR
4:00 PM EST - 1:00 AM EST
Scattered 4,500'
6sm
30.21"Hg
150° 4kts
LIFR
1:00 AM EST - 11:00 AM EST
Mist
Overcast 300'
2.98sm
30.24"Hg
VRB° 6kts
LIFR
Temporary 4:00 AM EST - 10:00 AM EST
Fog
No Clouds
0.62sm
Calm
VFR
Becoming 11:00 AM EST - 4:00 PM EST
Scattered 4,000'
6sm
30.21"Hg
180° 5kts
TAF KNBC 0421/0521 15004KT 9999 SCT045 QNH3020INS
   FM050600 VRB06KT 4800 BR OVC003 QNH3023INS
   TEMPO 0509/0515 1000 FG
   BECMG 0516/0518 18005KT 9999 NSW SCT040 QNH3021INS TX25/0421Z TN12/0510Z
KNBC
EffectiveExpiresCategoryNOTAM
Military
3/9/26
1600Z
3/13/26
2000Z
EOD RANGE ON MAR 09-13, 2026 FROM (1100 - 1500L) (1600- 2000Z).
3/3/26
1503Z
3/6/26
1503Z
L0070/26 NOTAMC L0068/26
3/3/26
1503Z
3/6/26
2005Z
EOD RANGE ON MAR 03, 2026 FROM (1000 - 1500L) (1500- 2000Z). EOD RANGE ON MAR 4-5, 2026 FROM (0900-2200L) (1400-0300Z). EOD RANGE ON MAR 06, 2026 FROM (1100 - 1500L) (1600- 2000Z).
3/2/26
2219Z
3/5/26
2219Z
M0012/26 NOTAMC M0010/26
3/2/26
2058Z
3/5/26
2058Z
M0008/26 NOTAMC M0006/26
3/1/26
1700Z
4/5/26
2300Z
UPDATED AIRFIELD HOURS *1 MAR 0800-1200L (1300-1700Z) *6 MAR 0700-1900L (1200-0000Z) *7 MAR CLOSED *8 MAR 1500-1700L (2000-2200Z) *13 MAR 0700-1900L (1200-0000Z) *14 MAR CLOSED *15 MAR 1500-1700L (2000-2200Z) *20 MAR 0700-1900L (1200-0000Z) *21 MAR CLOSED *22 MAR 1500-1700L (2000-2200Z) *27 MAR 0700-1900L (1200-0000Z) *28 MAR CLOSED *29 MAR 1500-1700L (2000-2200Z) *02 APR 0700L-LPOD (1200Z-LPOD) *03 APR CLOSED *04 APR CLOSED *05 APR CLOSED- PER THE IFR SUPPLEMENT, PLEASE NOTE THAT THE OPERATIONAL HOURS INDICATED ABOVE DIFFER FROM THE PUBLISHED SCHEDULE. -CLOSED FIELD OPNS (CFO) ARE RSTRD AND RQR PPR. -FOR FURTHER INFORMATION OR INQUIRIES, PLEASE CONTACT MCAS BEAUFORT BASE OPERATIONS AT (843) 228-7301
3/1/26
1656Z
3/4/26
1656Z
L0066/26 NOTAMC L0064/26
3/1/26
1304Z
3/30/26
2300Z
RunwayRUNWAY 23 GEAR IS DOWN FOR MAINTENANCE UNTIL FURTHER NOTICE
2/18/26
2015Z
3/18/26
0400Z
PAR WO GS RWY 23 CAT AB 460-5/8 444 (500-5/8), CDE 460-7/8 444 (500-7/8) WHEN ALS INOP INCREASE CAT AB VIS TO 1 MILE; CAT CDE VIS TO 1 3/8 MILES
Yes
MON-THU 1200-0400Z++
FRI 1200-2300Z++
CLSD SAT, SUN AND HOL. SPECIAL OPR BY PPR AND NOTAM ONLY.
US NAVY
OCEANOGRAPHIC OFC-CODE 3142
WASHINGTON, DC 20373
COMMANDING OFFICER
MARINE CORPS AIR STATION
BEAUFORT, SC 29902
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
NBC
--
SALSF RWY 05; ALSF-1 RWY 23; PAPI RWY 05, 14, 23 & 32; HIRL RWY 05/23, 14/32 OPR CONSLY.
N/A
Yes
No
No
None
No
None
None
None
High & Low Pressure
None

Runway 05/23

12202 ft. x 200 ft.

PEM
NONE
HIGH
59/R/C/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 42°222°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 28' 14"N 32° 29' 44"N
Longitude 80° 43' 50"W 80° 42' 15"W
Elevation 37' 13'
Threshold Crossing Height 38 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SALSF ALSF1
Centerline Lights
Runway End Identifier Lights

Runway 14/32

8001 ft. x 200 ft.

PEM
NONE
HIGH
64/R/D/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 29' 05"N 32° 28' 08"N
Longitude 80° 43' 53"W 80° 42' 47"W
Elevation 32' 23'
Threshold Crossing Height 40 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10TRAN ALERT: TRANS SVC AVBL 1200-2300Z++ MON-FRI ONLY, CLSD NATL HOL. (SEE RTSD FOR ADDNL TRAN ACFT INFO) TRAN ACFT EXP TRUCK REFUEL. TRAN ACFT MAINT UNAVBL. TRAN AVN ORDNANCE SVC AVBL. LAVATORY SVC UNAVBL. JASU, FLUID, AND OIL UNAVBL.
A110-11RSTD: RSTD - PPR, 24 HR PN RQR, CTC AFLD BASE OPS DSN 335-7301/7302/7303 C843-228-7301/7302.
A110-12REMARKS: OPR 1200-0400Z++ MON-THU, 1200-2400Z++ FRI, 2000-2200Z++ SUN, CLSD SAT AND HOL, OT BY NOTAM.
A110-13RWY: FIRST 1000 FT ALL RWYS CONC, INTERIOR PORTIONS ASPHALT. VERTICAL LANDING PADS WITH HIGH TEMP CONCR AVBL FOR V/STOL AND R/W ACFT. WT BRG WAIVERS CTC BASE OPS.
A110-14COMMUNICATIONS: SFA REMARKS: AS ASGN.
A110-15CLOSED FIELD OPNS (CFO) ARE RSTRD AND RQR PPR. FOR ANY FURTHER QUESTIONS PLEASE CONTACT MARINE CORPS AIR STATION BEAUFORT AIRFIELD OPERATIONS AT 843-228-7301.
A110-16SEE TERMINAL FLIP FOR RADAR MINIMA.
A110-2SERVICE: A-GEAR - E-28 ON ALL RWY IN RAISED POSITION, EXC ON LDG RWY.
A110-3FUEL: J5 TRANS ALERT - TRANS SVC AVBL 1200-2300Z++ MON-FRI, CLSD HOL. TRANS HOT PIT AVBL BY PPR NO LATER THAN 1 HR PRIOR TO TRANS ALERT CLOSING. NO LCL, ROUND ROBIN TRANS SUP. WEAPONS ARM/DE-ARM SAFEING NOT AVBL. GND SVCG NOT AVBL WHEN LIGHTNING WI 10 NM. QUESTIONS REG SPECIFIC ACFT EQUIP SUP CTC TRANS ALERT DSN 228-7110, C 843-228-7110.
A110-5RSTD: OFFL BUS, PPR ALWAYS, MIN 24 HR NOTICE CTC BASE OPS DSN 335-7301, C 843-228-7301 OR EMAIL: BFRT_BASE_OPERATIONS@USMC.MIL. PN ALL INBD TRAN ACFT TO INCL AMC, JOSAC, ALTN AFLD, AND DIVERTS. PN APVL GOOD FOR +/- 1 HR OF COORD TIME. INBD ACFT WITH VIP, CARGO, PAX CTC BASE OPS VIA PTD 281.8 AT LEAST 20 MINS PRIOR TO LDG. WHEN NEC 180 DEGREE TURNS ON RWY EXECUTE LAST 1000 FT FOR C-130 ACFT AND LARGER.
A110-6CAUTION: RWY 14/32 CONC ENDS WITH NSTD OVRN LEN 200 FT. F-35B SHORT TAKEOFF OR LIMITED TO CONC ENDS OF RWYS. F-35B/AV-8 HOVER LDG RSTD TO VERTICAL LANDING PADS. ACFT RSTD FR TAXIING ON TOWWAY RD BTN RWY 5 AND TEST CELL; TOW ONLY. BIRD, DEER AND COYOTE HAZ. BIRD ACT INCR BTN OCT-APR. HVY AND LARGE 4 ENG ACFT ARE REQ TO IDLE OUTBOARD ENGS ON TWY A/B ADJ TO ACFT PARKING RAMPS DUE TO FOD HAZ. PORTIONS OF ACFT RAMPS NOT VIS FR TWR. UNCTL VEH TFC ON RAMPS.
A110-7TFC PAT: OVERHEAD 1500 FT, CONVL 800 FT, COPTER CALL ENTERING CLASS D AIRSPACE BLW 800 FT. MSTD RSRS APPLIED TO USN/USMC ACFT ONLY. SIMULTANEOUS RUNWAY OPR AND F-35B VSTOL LANDING PADS.
A110-8MISC: DURING SINGLE RWY OPS NON-TENANT ACFT EXP DELAYS. LTD CSTMS/AG AVBL 24 HR PN CTC DSN 335-6161, C 843-228-6161. COMSEC NOT AVBL. INTL GARBAGE CAP UNAVBL. ARFF CAT 3/FAA INDEX D. CLASS D AIRSPACE REVERTS TO CLASS E WHEN TWR CLSD. AFTER HRS URGENT AIRFIELD MATTERS CTC DUTY OFFICER DSN 335-7121, C 843-228-7121.
A17-M1CLSD SAT, SUN AND HOL. SPECIAL OPR BY PPR AND NOTAM ONLY.
A81-APTSALSF RWY 05; ALSF-1 RWY 23; PAPI RWY 05, 14, 23 & 32; HIRL RWY 05/23, 14/32 OPR CONSLY.
E60-05_E28HOOK E28(B) (2050')
E60-14_E28HOOK E28(B) (1249')
E60-23_E28HOOK E28(B) (1900')
E60-32_E28HOOK E28(B) (1250')
BEAUFORT MCAS (MERRITT FLD) (ICAO: KNBC, IATA: NBC) is a private airport located in BEAUFORT, SC, US.
