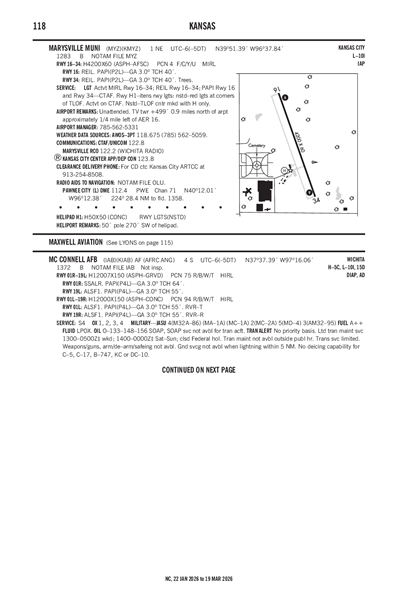

MARYSVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMYZ
ICAO KMYZLocal MYZ
MARYSVILLE MUNI
PublicPUB

1 miles NE of MARYSVILLE, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 51' 23"N 96° 37' 51"W
Elevation
1283' MSL
Pattern Alt
2283' MSL
Mag Variation
3°E
Declination
4°E
Fuel
None Listed
FSS
WICHITA (ICT)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KMYZ MVFR
10:35 PM CST
Overcast 1,700'
Scattered 900'
7sm
43°F
37°F
30.14"Hg
010° 5kts
AO2
METAR KMYZ 040435Z AUTO 01005KT 7SM SCT009 OVC017 06/03 A3014 RMK AO2
+ Add Your Business

KMYZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.675
(785) 562-5059

Common

CTAF 122.8
ACTVT MIRL RWY 16/34; REIL RWY 16/34; PAPI RWY 16 & 34 - CTAF.
UNICOM 122.8

Center

KANSAS CITY CENTER 123.8
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 123.8/343.7 (TOPEKA RCAG).

Flight Service

Flight Service 122.2
(ICT)

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMHK (43nm)
Tue, 3/3 5:20 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
MVFR
6:00 PM CST - 12:00 AM CST
Overcast 1,200'
6sm
030° 5kts
IFR
12:00 AM CST - 1:00 PM CST
Mist
Overcast 700'
6sm
020° 4kts
MVFR
1:00 PM CST - 6:00 PM CST
Overcast 1,800'
6sm
010° 4kts
TAF KMHK 032320Z 0400/0424 03005KT P6SM OVC012
   FM040600 02004KT 6SM BR OVC007
   FM041900 01004KT P6SM OVC018
KMYZ
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
0527Z
3/25/26
2300Z
!MYZ 02/005 MYZ OBST TOWER LGT (ASR 1325168) 395725.83N0963814.94W (6.1NM N MYZ) 1536FT (290FT AGL) U/S 2602230527-2603252300
2/21/26
1502Z
6/21/26
1502Z
!MYZ 02/004 MYZ OBST TOWER LGT (ASR 1272783) 395010.60N0964000.10W (2.1NM SW MYZ) 1479.7FT (249.3FT AGL) U/S 2602211502-2606211502
1/9/26
0239Z
3/8/26
2359Z
!MYZ 01/003 MYZ OBST TOWER LGT (ASR 1267788) 394047.20N0964500.60W (12.0NM SSW MYZ) 1620.1FT (310.0FT AGL) U/S 2601090239-2603082359
No
UNATNDD
CITY OF MARYSVILLE
209 N 8TH ST
MARYSVILLE, KS 66508
Phone: 785-562-5331
CINDY HOLLE, CITY CLERK
209 N 8TH ST
MARYSVILLE, KS 66508
Phone: 785-562-5331
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
MYZ
--
ACTVT MIRL RWY 16/34; REIL RWY 16/34; PAPI RWY 16 & 34 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 16/34

4200 ft. x 60 ft.
ASPH
Excellent
AFSC
MED
4/F/C/Y/U
--
--
--
--
  Runway 16 Runway 34
True Heading 161°341°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 51' 43"N 39° 51' 04"N
Longitude 96° 37' 60"W 96° 37' 42"W
Elevation 1,278' 1,277'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

50 ft. x 50 ft.
CONC
Good
NONE
NSTD

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NSTD
Markings Condition FAIR
Latitude 39° 51' 13"N N/A
Longitude 96° 37' 56"W N/A
Elevation 1,285' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2TV TWR +499 FT .9 MILES N OF ARPT APRXLY 1/4 MILE L OF AER 16.
A110-3FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A40-H1NSTD - RED LGTS AT CORNERS OF TLOF. ACTVT ON CTAF.
A42-H1_MARKNSTD - TLOF CNTR MKD WITH H ONLY.
A81-APTACTVT MIRL RWY 16/34; REIL RWY 16/34; PAPI RWY 16 & 34 - CTAF.
MARYSVILLE MUNI (ICAO: KMYZ, IATA: MYZ) is a public airport located in MARYSVILLE, KS, US.
