KMYR
MYRTLE BEACH INTL
Public
PUB
3 miles SW of MYRTLE BEACH, SC
View on
Map
Status
Operational
Coordinates
33° 40' 47"N
78° 55' 42"W
Elevation
25' MSL
Pattern Alt
1025' MSL
Mag Variation
09W
Fuel
JET A, 100LL
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KMYR FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.95
CTAF
128.45
ATIS
ATIS
Hours: 24 HRS
123.925
AWOS-3PT
AWOS-3PT
843-238-0335
123.925
Approach/Departure
APCH/P DEP/P
322-170
119.2
APCH/P DEP/P
171-321
127.4
Clearance Delivery
CD/P
120.3
Emergency
EMERG
121.5
Ground
GND/P
120.3
Tower
LCL/P
128.45
Other
CLASS C
322-170
119.2
CLASS C
171-321
127.4
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

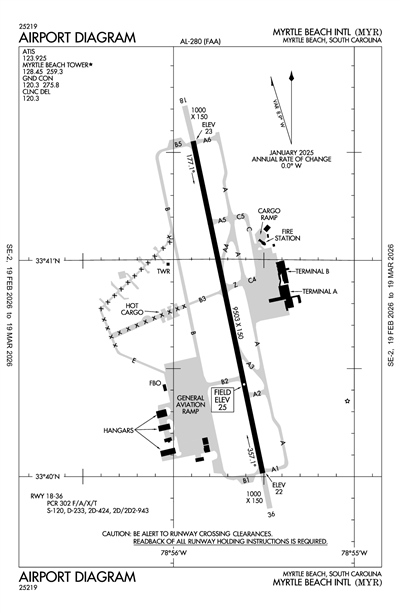

AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 18
ILS OR LOC RWY 36
ILS RWY 18 (SA CAT I - II)
RNAV (GPS) RWY 18
RNAV (GPS) RWY 36
RNAV (GPS)-A
VOR-A
Terminal Area Forecast
No TAF is available for this location.
KMYR
Domestic
1/15/25
1400Z
!MYR 01/006 MYR NAV ILS RWY 36 U/S 2501151400-2501152130
12/2/24
1200Z
!MYR 11/025 MYR OBST CRANE (ASN 2024-ASO-1210-NRA) 334046N0785532W (0.1NM E MYR) 198FT (175FT AGL) FLAGGED AND LGTD 2412021200-2504182100
FDC
1/6/25
2005Z
!FDC 5/0820 MYR ODP MYRTLE BEACH INTL, MYRTLE BEACH, SC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
ADD TAKEOFF OBSTACLE NOTE: RWY 36, TEMPORARY CRANE 2636FT FROM DER, 1179FT LEFT OF CENTERLINE, 120FT AGL/ 133FT MSL (2023-ASO-24634-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2501062005-2503162005EST
7/29/24
1100Z
!FDC 4/9068 MYR IAP MYRTLE BEACH INTL, MYRTLE BEACH, SC.
ILS RWY 18 (SA CAT I AND II), AMDT 6A ...
PROCEDURE NA. TEMPORARY CRANE 198 MSL 4731FT SE OF RWY 18 (2024-ASO-1211-NRA). 2407291100-2511070217EST
ATC Tower
Yes
Attendance
0600-2100
Owner
HORRY COUNTY
P O BOX 1236
CONWAY, SC 29526
Phone: 843-448-1580
Manager
JUDI OLMSTEAD
1100 JETPORT RD
MYRTLE BEACH, SC 29577
Phone: 843-448-1580
FSS
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
NOTAM
MYR
Light Schedule
--
Lights
WHEN ATCT CLSD ACTVT MALSR RWY 18, MALSF RWY 36; HIRL RWY 18/36 - CTAF.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Charter Service
Pilot Instruction
Aircraft Rental
Runway 18/36
Dimensions
9503 ft. x 150 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
69 /R/B/W/T
Single Wheel
120,000lbs
Double Wheel
233,000lbs
Double Tandem
424,000lbs
Dual Dbl Tand
943,000lbs
Runway 18
Runway 36
True Heading
168°
348°
Traffic Pattern
Right
Left
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
33° 41' 33"N
33° 40' 01"N
Longitude
78° 55' 53"W
78° 55' 30"W
Elevation
22'
22'
Threshold Crossing Height
64 ft. AGL
71 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
MALSR
MALSF
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-2
GULLS ON & INVOF ARPT.
A110-3
NO APVL RQRD FOR PUSHBACK AT TRML GATES; PUSH IS AT PILOT DISCRETION; RMN CLR OF TWYS.
A110-4
CONTACT MYR OPS ON CTAF 128.45 PRIOR TO LANDING 2300-0600.
A110-5
SIGHTSEEING HELS OPRG IN CLOSE PROXIMITY OF ARPT AND RWY AT OR BLW 1200 FT. HEL RTES AND HLDG POINTS RMN CLR OF RWY CNTRLNS. HELS DEPG/ARRG PAD LCTD 700 FT SSE APCH END RWY 36.
A110-6
TWY B4 CLSD TO ACFT MORE THAN 12500 LB.
A110-7
MEDEVAC HEL DEPARTING GRAND STRAND MED CTR, SW BOUND, CTC MYR TWR ON 134.05 PRIOR TO DEP OR AS SOON AS AB.
MYRTLE BEACH INTL (ICAO: KMYR, IATA: MYR) is a public airport located in MYRTLE BEACH, SC.
