KMYF
MONTGOMERY-GIBBS EXEC
PublicPUB

6 miles N of SAN DIEGO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 48' 57"N 117° 08' 22"W
427' MSL
1427' MSL
14E
JET A, JET A (FSII), 100LL
SAN DIEGO (SAN)
LOS ANGELES
LOS ANGELES (ZLA)
10/31/24-11/28/24
KMYF VFR
3:53 AM PST
Clear
10sm
49°F
26°F
29.98"Hg
Calm
AO2 SLP151 T00941033 10117 20083 56008
KMYF 091153Z AUTO 00000KT 10SM CLR 09/M03 A2998 RMK AO2 SLP151 T00941033 10117 20083 56008
Add Your Business

KMYF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 119.2

ATIS

ATIS
858-277-3075
 126.9

ASOS

ASOS
858-576-4337
 126.9

Clearance Delivery

CD/P
 123.725

Ground

GND/P
 118.225

Tower

LCL/P
ALL RYS, EXCEPT RY 28R BTW 1800-0200Z
 119.2
LCL/P
RY 28R BTW 1800-0200Z++
 125.7

FAA A/FD Pages

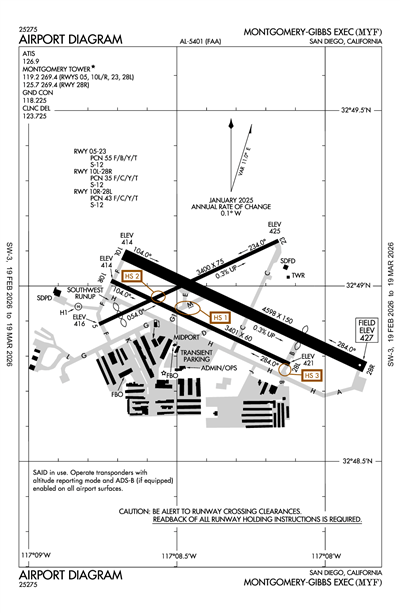

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KNKX (3nm)
Fri, 11/8 7:06 AM PST
Fri, 11/8 7:00 AM PST - Sat, 11/9 7:00 AM PST
VFR
7:00 AM PST - 9:00 AM PST
Sky Clear
6sm
30.12"Hg
060° 4kts
VFR
Becoming 9:00 AM PST - 7:00 PM PST
Sky Clear
6sm
30.09"Hg
280° 10kts
LIFR
Becoming 7:00 PM PST - 7:00 AM PST
Sky Clear
0.44sm
29.97"Hg
VRB° 3kts
TAF KNKX 0815/0915 06004KT 9999 SKC QNH3013INS
   BECMG 0817/0819 28010KT QNH3010INS
   BECMG 0903/0905 VRB03KT QNH2998INS T24/0821Z T05/0914Z LAST NO AMDS AFT 0715 NEXT 0814
KMYF
Domestic
11/6/241600Z !MYF 11/001 MYF RWY 28R ALS U/S 2411061600-2411062000
10/30/242046Z !MYF 10/016 MYF NAV ILS RWY 28R U/S 2410302046-2411062359EST
10/24/242120Z !MYF 10/008 MYF RWY 28R RAI LGT U/S 2410242120-2506182359EST
9/4/241638Z !MYF 09/004 MYF OBST TOWER LGT (ASN 2013-AWP-4454-OE) 324849N1170922W (0.8NM W MYF) 548FT (114FT AGL) U/S 2409041638-2412042359
7/26/242232Z !MYF 07/016 MYF APRON MIDPORT RAMP NE 500FT WIP IRREGULAR SFC ADJ LGTD
AND BARRICADED 2407262232-2412312359
FDC
10/9/241641Z !FDC 4/7113 MYF IAP MONTGOMERY-GIBBS EXEC, SAN DIEGO, CA.
ILS OR LOC RWY 28R, AMDT 4D...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
JLI VORTAC OUT OF SERVICE. 2410091641-2412011641EST
9/4/241058Z !FDC 4/9733 MYF IAP MONTGOMERY-GIBBS EXEC, SAN DIEGO, CA.
RNAV (GPS) RWY 28R, AMDT 1C...
LNAV/VNAV CAT A/B DA 779/HAT 356. LNAV CAT A/B MDA 900/HAT 477. VDP 1.37NM TO RW28R. TEMPORARY CRANE 587 MSL 3313FT SW OF RWY 28R (2023-AWP-19848-OE).
2409041058-2507251058EST
12/21/231820Z !FDC 3/8601 MYF IAP MONTGOMERY-GIBBS EXEC, SAN DIEGO, CA.
RNAV (GPS) RWY 28R, AMDT 1C...
NOTE: CIRCLING RWY 10L, 23, 28L NA AT NIGHT.
2312211820-2512211820EST
Yes
M-S 0700-1800
CITY OF SAN DIEGO
3750 JOHN J MONTGOMERY DR
SAN DIEGO, CA 92123
Phone: 858-573-1440
CHARLES BROADBENT
3750 JOHN J MONTGOMERY DR
SAN DIEGO, CA 92123
Phone: (858) 573-1430
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
MYF
--
ATC CTL. WHEN ATCT CLSD ACTVT PAPI RWY 10L & 28R; MALSR RWY 28R - CTAF, MIRL RWY 10L/28R OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
High Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05/23

3400 ft. x 75 ft.
ASPH TRTD
Excellent
RFSC

37 /F/B/Y/T
12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 65°245°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 48' 53"N 32° 49' 08"N
Longitude 117° 08' 46"W 117° 08' 10"W
Elevation 416' 425'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10L/28R

4598 ft. x 150 ft.
ASPH
Good
RFSC
MED
48 /F/C/Y/T
12,000lbs
--
--
--
  Runway 10L Runway 28R
True Heading 115°295°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 32° 49' 05"N 32° 48' 46"N
Longitude 117° 08' 41"W 117° 07' 52"W
Elevation 414' 427'
Threshold Crossing Height 45 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3.4° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10R/28L

3401 ft. x 60 ft.
ASPH
Fair
RFSC

44 /F/C/Y/T
12,000lbs
--
--
--
  Runway 10R Runway 28L
True Heading 115°295°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD FAIR
Latitude 32° 49' 01"N 32° 48' 47"N
Longitude 117° 08' 43"W 117° 08' 07"W
Elevation 414' 421'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway H1

48 ft. x 48 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 74°254°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 32° 48' 57"N N/A
Longitude 117° 08' 50"W N/A
Elevation 414' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10BE ALERT HVY ACFT ACTIVITY IN THE VICINITY OF LAKE MURRAY & MT SOLEDAD. PILOTS ARE URGED TO BE VIGILANT FOR OTHER ACFT IN THESE AREAS & TO CTC THE TWR EARLY ENOUGH FOR TIMELY TFC ADVISORIES IF PROCEDING EAST BOUND ADVISE TWR OF DESTINATION ARPT.
A110-14SIMULATED ENGINE FAILURES ARE PROHIBITED OVER RESIDENTIAL AREAS. NO JET TOUCH AND GO OPNS.
A110-15FOR NOISE ABATEMENT REGULATIONS CONTACT THE NOISE ABATEMENT OFFICE AT 858-573-1436.
A110-16ACFT WITH HIGH NOISE LEVELS ARE REQUESTED TO USE RY 10L/28R
A110-17LDG FEES FOR OPS BY NON-BASED PART 91 AND PART 135 CERTIFIED ACFT.
A110-18TWY K RSTRD TO WINGSPAN NO GREATER THAN 58 FT.
A110-19NO ACFT OVR 20,000 LBS ON TWY J RSTRD BY FBO.
A110-20FOR CD WHEN ATCT CLSD CTC SOCAL APCH AT 800-448-3724.
A110-21TXL E NON-STD, ACFT WITH WINGSPAN GTR THAN 35.5 FT. USE CAUTION.
A110-4BE ALERT TO MILITARY JET ACFT INVOF OF ARPT & 4.7 NM NW OF ARPT BEARING 312 INVOF MISSION BAY VORTAC.
A110-5EXTRM NOISE SENSITIVE AREAS W & S OF ARPT. NOISE MONITORING IN EFFECT. MAX NOISE LMT 2330-0630 70 DB OVER RESIDENTIAL AREAS. MAX NOISE LMT 0630-2330 88 DB.
A110-9BE ALERT BIRDS ON AND INVOF ARPT; COYOTE ACTIVITY ON RYS & TWYS.
MONTGOMERY-GIBBS EXEC (ICAO: KMYF, IATA: MYF) is a public airport located in SAN DIEGO, CA.
