iFlightPlanner



...

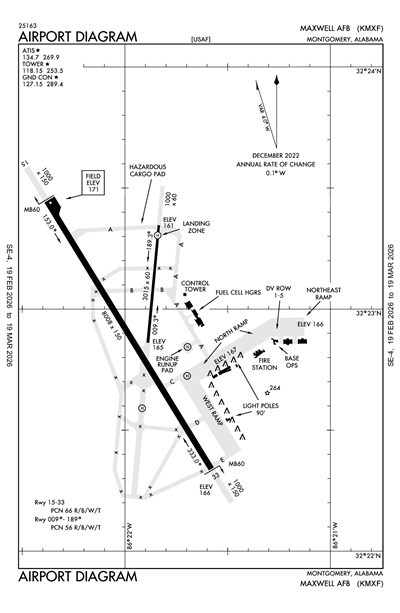

MAXWELL AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMXF
ICAO KMXFIATA MXFLocal MXF
MAXWELL AFB
PrivatePVT

2 miles NW of MONTGOMERY, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 22' 59"N 86° 21' 57"W
Elevation
171' MSL
Pattern Alt
1171' MSL
Mag Variation
4°W
Declination
2°W
Fuel
None Listed
FSS
ANNISTON (ANB)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KMXF VFR
9:55 PM CST
Few 4,400'
10sm
64°F
56°F
30.24"Hg
110° 6kts
AO2 SLP242 T01750134
METAR KMXF 040355Z AUTO 11006KT 10SM FEW044 18/13 A3024 RMK AO2 SLP242 T01750134
+ Add Your Business

KMXF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 134.7
Hours: 1400-0400Z++ WKDAYS; 1600-0000Z++ WKENDS, CLSD FED HOLS.

Common

Pilot-To-Dispatcher (PTD) 139.3

Ground

MAXWELL GROUND 127.15
1400-0400Z++ WKDAYS; 1600-0000Z++ WKENDS, CLSD FED HOLS.

Tower

MAXWELL TOWER 118.15
1400-0400Z++ WKDAYS; 1600-0000Z++ WKENDS, CLSD FED HOLS.

Terminal

TRSA 121.2
NORTH
TRSA 124.0
SOUTH

Approach

MONTGOMERY APPROACH 121.2
NORTH
MONTGOMERY APPROACH 124.0
Initial Contact - SOUTH

Departure

MONTGOMERY DEPARTURE 121.2
NORTH
MONTGOMERY DEPARTURE 124.0
Initial Contact - SOUTH

Center

MONTGOMERY CENTER 120.55
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 120.55/270.25 (MONTGOMERY RCAG) WHEN MONTGOMERY APCH CTL CLSD.

Emergency

Emergency 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMXF
Tue, 3/3 10:35 AM CST
Tue, 3/3 10:00 AM CST - Wed, 3/4 12:00 PM CST
MVFR
10:00 AM CST - 11:00 AM CST
Overcast 1,500'
6sm
30.27"Hg
130° 10kts
MVFR
Temporary 11:00 AM CST - 12:00 PM CST
Broken 2,000'
N/A
Calm
VFR
Becoming 11:00 AM CST - 4:00 AM CST
Scattered 4,000'
6sm
30.30"Hg
130° 8kts
IFR
Becoming 4:00 AM CST - 12:00 PM CST
Broken 700'
6sm
30.21"Hg
120° 4kts
TAF AMD KMXF 031635Z 0316/0418 13010KT 9999 OVC015 QNH3028INS
   TEMPO 0317/0318 BKN020
   BECMG 0317/0318 13008KT 9999 SCT040 QNH3029INS
   BECMG 0410/0411 12004KT 9999 BKN007 QNH3022INS TX23/0320Z TN13/0411Z
KMXF
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
2354Z
2/27/26
2000Z
!MXF 02/003 MXF SVC TAR U/S 2602242354-2602272000
Military
2/24/26
1650Z
2/27/26
1650Z
M0108/26 NOTAMC M1146/25
2/24/26
0154Z
3/31/26
0400Z
Taxiway!KMXF M0107/26 MXF TWY D LOCATION SIGN NOT LGTD 2602240154-2603310400
2/23/26
1703Z
2/26/26
1703Z
M0106/26 NOTAMC M0084/26
2/19/26
1358Z
3/20/26
0400Z
AerodromeAERODROME BE ADVISED UNLIT 100 FOOT CRANE LOCATED AT 32'22'59N 86'21'02W
2/19/26
1345Z
4/30/26
0400Z
Runway!KMXF M0094/26 MXF RWY 009/189 CLSD 2602191345-2604300400
2/19/26
1344Z
4/30/26
0400Z
Taxiway!KMXF M0093/26 MXF TWY B CLSD BETWEEN RWY 15 AND LANDING ZONE 2602191344-2604300400
2/19/26
1342Z
4/30/26
0400Z
Taxiway!KMXF M0092/26 MXF TWY A CLSD BETWEEN RWY 15 AND LANDING ZONE 2602191342-2604300400
2/17/26
2020Z
3/31/26
0400Z
Services!KMXF M0089/26 MXF SVC AIRPORT SURVEILLANCE RADAR U/S 2602172020-2603310400
2/4/26
1606Z
3/31/26
2359Z
Aerodrome!KMXF M0071/26 MXF AD WINDCONE RWY 15 NOT ROTATING MAY GIVE INCORRECT WIND DIRECTION 2602041606-2603312359
1/30/26
0201Z
4/22/26
0400Z
Taxiway!KMXF M0060/26 MXF TWY B APCH AREA HLDG PSN SIGN NOT LGTD 2601300201-2604220400
1/28/26
1933Z
3/28/26
2359Z
RunwayRWY 15 APCH LIGHTING SYSTEM UNSERVICEABLE DAY TIME ILS RVR INCREASED TO 40 AND VIS TO 3/4 MILE. DAY TIME LOCALIZER INCREASE CAT CDE AB RVR TO 55 AND VIS TO 1/4 MILE
1/13/26
2136Z
4/10/26
0400Z
AerodromeAERODROME BE ADVISED NO AIRSTAIRS AVAILABLE
1/6/26
1317Z
2/27/26
1400Z
AerodromeAERODROME MEN AND EQUIPMENT WORKING IN RUNWAY 15 NORTH CLEAR ZONE
Yes
MON-FRI 1400-0400Z++
SAT-SUN 1600-0000Z++
CLSD FEDERAL HOL.
USAF
MAXWELL AFB
MONTGOMERY, AL 36112
CHIEF OF AFLD MANAGEMENT
MAXWELL AFB
MONTGOMERY, AL 36112
Phone: 334-953-7406
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
MXF
Sunset to Sunrise
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Cargo Handling

Runway 009/189

3015 ft. x 60 ft.

ASPH
NONE

56/R/B/W/T
--
--
--
--
  Runway 009 Runway 189
True Heading 355°175°
Traffic Pattern
Markings
Markings Condition
Latitude 32° 22' 53"N 32° 23' 23"N
Longitude 86° 21' 50"W 86° 21' 53"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

8008 ft. x 150 ft.

ASPH
NONE
HIGH
66/R/B/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 148°328°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition
Latitude 32° 23' 29"N 32° 22' 21"N
Longitude 86° 22' 23"W 86° 21' 34"W
Elevation 171' 166'
Threshold Crossing Height 46 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-101JASU: 4(A/M32A-86D) 2(AM32-95)
A110-102FUEL: A++
A110-105TRAN ALERT: AIREVAC AND DV ACFT WILL BE GIVEN PRIORITY SVCG.
A110-106RSTD: DUR BIRD WATCH COND CODE MODERATE AND SEVERE, AIRCREWS SHOULD REFER TO AP/1 FOR BASH HAZARD CONDITIONS AND RESTRICTIONS; AIRCREWS CAN OBTAIN CURRENT BIRD WATCH COND FR ATIS/PTD/TWR.
A110-107RSTD: LANDING ZONE USE AUTHORIZED FOR C130 OR SMALLER ACFT WITH PAVED LANDING ZONE TRAINING REQUIREMENTS; REFERENCE AP/1 FOR PROCEDURE/RSTD. LANDING ZONE LDG RQR PPR. CTC AFLD MGMT OPS DSN 493-6961/62 OR C334-953-6961/62. ACFT TRANS DV TO KMXF OR GUNTER ANNEX CTC PTD 30 MIN PRIOR LDG.
A110-108CAUTION: PRACTICE MISSED APCH IN VFR COND MAINT RWY HDG BLW 1200' TIL OVER DEP END OF RWY THEN IMMED RGT STD RATE TURN TO HDG 300 DEG TO AVOID DANNELLY FIELD.
A110-111MISC: 1ST 2207' RWY 15 IS CONC & GROOVED, NEXT 3984' IS ASPHALT, NEXT 400' IS CONC OVERLAY & GROOVED, REMAINING 1507' IS ASPHALT; REVERSE ORDER FOR RWY 33.
A110-114RADAR: SEE TERMINAL FLIP FOR RADAR MINIMA.
A110-115A-GEAR: RWY 15, HOOK MB60 (35' OVRN)
A110-116A-GEAR: RWY 33, HOOK MB60 (35' OVRN)
A110-119RWY 15/33 70 FT GATED THLD LGT.
A110-121CAUTION: POSSIBLE HYDROPLANING DUR PERIODS OF RAIN ON RWY 15/33 AND LDG ZONE 009-189. LDG ZONE 009-189 IS PAVED.
A110-125CAUTION: UNLGTD TURNAROUND ON E SIDE OF DEP END RY 33/APCH END RY 15 RSTD TO DAYLIGHT VMC EXC FOR APV NGT VISION OPS.
A110-128RSTD: C-5, C-17, KC-10 AND B747 ARE PROH FR 180 DEG TURNS FIRST 200 FT RY 33.
A110-130RSTD: ALL HVY ACFT WILL USE TWY C TO ENTER/EXIT TO AND FR NE.
A110-131RSTD: CTC AIRFIELD MANAGEMENT OPERATIONS DSN 493-6961/62 OR C334-953-6961/62.
A110-132CAUTION: BASH PHASE II BIRD ACTIVITY JUNE - NOV.
A110-134CAUTION: LANDING ZONE 189 OVERRUN EXTENDS ONTO RY 15/33. AIRCREWS USE CAUTION DUE TO LOSS OF WIND SPEED BLO 50' AGL WHEN WINDS BTN 280-310 LDG RWY 15
A110-136AFRC - OPR 1315-2200Z++ WKD, AND UNIT TRNG ASSEMBLY WKEND, DSN 493-2717.
A110-137OPR WKDAYS 1400-0400Z++, WKENDS 1600-2400Z++, CLSD FEDERAL HOL.
A110-138ATIS: 1400-0400Z++ WKDAYS, 1600-2400Z++ WKENDS, CLSD FEDERAL HOL.
A110-139TOWER: 1400-0400Z++ WKDAYS, 1600-2400Z++ WKENDS, CLSD FEDERAL HOL.
A110-140MAXWELL COMBINED COMD POST: MONITOR 118.15 AFTER NML DUTY HRS CALL BAMA-WOLF OPS.
A110-141PMSV: FULL SVC AVBL WKDAYS 1400-0400Z++, WKENDS 1600-2400Z++, CLSD FEDERAL HOL. MAXWELL AFB TAF IS CMPLTD BY 26TH OWS; FOR UPDATED FCST CTC MAXWELL WX OFC AT 334-953-2071. ASOS IN USE, AUGMENTED WHEN NEC DURG AFLD OPR HRS.
A110-142CLASS D SVC 1400-0400Z++ MON-FRI; 1600-2400Z++SAT-SUN CL FED HOLIDAYS OTHER TIMES CLASS E.
A110-144AUGMENTED WX OBSN VIS RSTD TO 1/4-1 NM ALL QUAD EXC NW DUE NUMEROUS OBST. TWR WILL CONDUCT COOPERATIVE WX WATCH AND SUPPLEMENT OBSN AS RQR.
A110-145SERVICE-LGT: RWY 15 - SSALR LGT SYS AVBL DUR VMC COND.
A110-146SERVICE-LGT: RWY 15 PAPI LATERAL COVERAGE LIMITATION SET AT 8 DEG LEFT & 12 DEG RIGHT
A110-147WHEN ATCT CLSD, FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-148ALL AIRCRAFT WITH WINGSPAN GREATER THAN C-130 (132- 7-) ARE RESTRICTED FROM TAXIING TO AND FROM DELTA AND ECHO TAXIWAYS WHEN C-130'S ARE PARKED ON THE WEST RAMP PARKING APRON.
A110-149OVERNIGHT STORE OF CLASSIFIED MATERIAL WILL BE PROVIDED BY MAXWELL COMD POST DSN 493-4747 OR 334-953-7474.
A110-150SEASONAL HRS 1 APR TO 30 SEP 1400-0600Z++. 0400-0600Z++ AVBL TO ONLY 908TH FTW ACFT.
A110-151CAUTION - POTENTIAL FOR CAP-USAF ACFT DEPARTURES DUR CLSD AERODROME HRS 0401-1359++ WKD; 0001-1559Z++WKEND.
A110-152TAXIWAY ALPHA FROM NORTH RAMP TO TAXIWAY BRAVO RESTRICTED TO 908TH AIRCRAFT ONLY.
A110-153TAXIWAY ALPHA CLSED FROM RUNWAY 189/009 TO TAXIWAY BRAVO.
A110-154TAXIWAY BRAVO CLOSED FROM RUNWAY 189/009 TO TAXIWAY ALPHA.
A17-D2CLSD FEDERAL HOL.
A43-15PAPI UNUSBL BYD 8 DEGS LEFT & 12 DEGS RIGHT OF CNTRLN.
E147RECTANGULAR 1029 FT AGL, OVERHEAD 1529 FT AGL.
MAXWELL AFB (ICAO: KMXF, IATA: MXF) is a private airport located in MONTGOMERY, AL, US.
