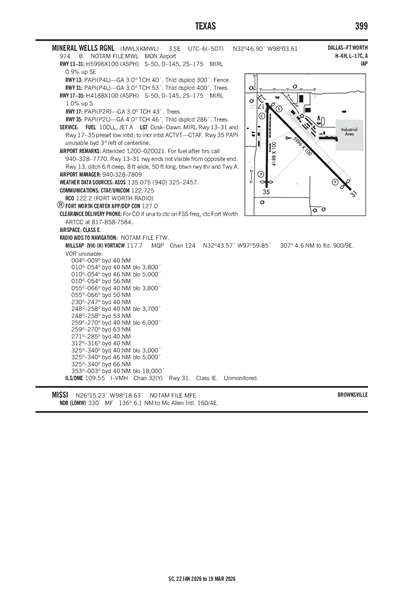

MINERAL WELLS RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMWL
ICAO KMWLIATA MWLLocal MWL
MINERAL WELLS RGNL
PublicPUB

3 miles SE of MINERAL WELLS, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 46' 54"N 98° 03' 37"W
Elevation
974' MSL
Pattern Alt
1974' MSL
Mag Variation
4°E
Declination
6°E
Fuel
JET A, 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KMWL VFR
7:53 PM CST
Clear
10sm
73°F
55°F
29.91"Hg
150° 7kts
AO2 SLP117 T02280128
METAR KMWL 040153Z AUTO 15007KT 10SM CLR 23/13 A2991 RMK AO2 SLP117 T02280128
+ Add Your Business

KMWL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.075
(940) 325-2457

Common

CTAF 122.725
DUSK-DAWN. MIRL RWYS 13/31 & 17/35 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
UNICOM 122.725

Center

FORT WORTH CENTER 127.0
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 127.0/360.6 (MINERAL WELLS RCAG).

Flight Service

Flight Service 122.2
(FTW)

Terminal Area Forecast

KNFW (32nm)
Tue, 3/3 5:36 PM CST
Tue, 3/3 5:00 PM CST - Wed, 3/4 5:00 PM CST
VFR
5:00 PM CST - 1:00 AM CST
Scattered 25,000'
Few 4,000'
6sm
29.85"Hg
170° 12kts
MVFR
1:00 AM CST - 11:00 AM CST
Mist
Overcast 1,500'
4.97sm
29.97"Hg
170° 9kts
IFR
Temporary 6:00 AM CST - 10:00 AM CST
Overcast 900'
N/A
Calm
MVFR
11:00 AM CST - 2:00 PM CST
Broken 2,500'
6sm
29.97"Hg
180° 14kts
Gusts 23kts
VFR
2:00 PM CST - 5:00 PM CST
Light Showers and Rain and Thunderstorm in vicinity
Broken 25,000'
Broken 15,000'
Scattered 3,000'
6sm
29.94"Hg
190° 14kts
Gusts 24kts
MVFR
Temporary 3:00 PM CST - 5:00 PM CST
Thunderstorm and Rain
Overcast 2,000'
3.73sm
VRB° 20kts
Gusts 30kts
TAF KNFW 0323/0423 17012KT 9999 FEW040 SCT250 QNH2986INS
   FM040700 17009KT 8000 BR OVC015 QNH2997INS
   TEMPO 0412/0416 OVC009
   FM041700 18014G23KT 9999 BKN025 QNH2998INS
   FM042000 19014G24KT 9999 -SHRA VCTS SCT030 BKN150 BKN250 QNH2995INS
   TEMPO 0421/0423 VRB20G30KT 6000 TSRA OVC020CB AUTOMATED SENSOR METWATCH 0405 TIL 0412 TX29/0323Z TN20/0413Z FN20048
KMWL
EffectiveExpiresCategoryNOTAM
Domestic
2/10/26
2138Z
3/3/26
2359Z
Runway!MWL 02/006 MWL RWY 31 PAPI U/S 2602102138-2603032359
2/5/26
0832Z
3/22/26
0831Z
!MWL 02/003 MWL OBST TOWER LGT (ASN 2025-ASW-1799-OE) 325436N0975420W (11.0NM NE MWL) 1470FT (310FT AGL) U/S 2602050832-2603220831
1/17/26
0514Z
3/2/26
0513Z
!MWL 01/012 MWL OBST TOWER LGT (ASR 1331707) 324726.25N0981231.75W (7.52NM W MWL) 1188FT (265FT AGL) U/S 2601170514-2603020513
12/6/25
0648Z
3/6/26
2359Z
!MWL 12/008 MWL OBST TOWER LGT (ASR 1281018) 324633.40N0981620.30W (10.8NM W MWL) 1503.6FT (349.7FT AGL) U/S 2512060648-2603062359
FDC
12/5/25
1903Z
7/17/26
1903Z
!FDC 5/5289 MWL IAP MINERAL WELLS RGNL, MINERAL WELLS, TX.
ILS OR LOC RWY 31, AMDT 1A...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
No
0600-2000
CITY OF MINERAL WELLS
PO BOX 460
MINERAL WELLS, TX 76068
Phone: 940-328-7700
HALEY CUEVAS
5300 AIRPORT RD.
MINERAL WELLS, TX 76067
Phone: 940-328-7809
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
MWL
--
DUSK-DAWN. MIRL RWYS 13/31 & 17/35 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 13/31

5996 ft. x 100 ft.
ASPH
Good
NONE
MED

50,000lbs
145,000lbs
--
--
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 32° 47' 15"N 32° 46' 32"N
Longitude 98° 03' 51"W 98° 03' 02"W
Elevation 913' 969'
Threshold Crossing Height 40 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4188 ft. x 100 ft.
ASPH
Good
NONE
MED

50,000lbs
145,000lbs
--
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 32° 47' 15"N 32° 46' 33"N
Longitude 98° 03' 50"W 98° 03' 51"W
Elevation 914' 956'
Threshold Crossing Height 43 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1RWY 13/31 RWY ENDS NOT VSB FM OPPOSITE END.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A110-3RWY 13, DITCH 6 FT DEEP, 8 FT WIDE, 50 FT LONG, BTWN RWY THR & TWY A.
A43-35PAPI UNUSBL BYD 3 DEG L OF CNTRLN.
A57-139 FT FENCE POLE, 8 FT FENCE. APCH SLOPE 10:1 AT DSPLCD THR OVR 35 FT TREES, 560 FT FM DSPLCD THR 248 FT R.
A57-31APCH SLOPE 0:1 TO DSPLCD THR OVR 10 FT GND 0 FT DSTC, 180 FT LEFT.
A57-35APCH SLOPE 14:1 TO DSPLCD THR.
A58-138 FT FENCE, 199 FT DSTC, 347 FT R, 15 FT RD, 199 FT DSTC, 390 FT R.
A58-3110 FT GND 0-199 DSTC, 15 FT TREES, 175 FT DSTC, 150 FT R.
A70-100LLFOR FUEL AFT HRS CALL 940-328-7770.
A81-APTDUSK-DAWN. MIRL RWYS 13/31 & 17/35 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
MINERAL WELLS RGNL (ICAO: KMWL, IATA: MWL) is a public airport located in MINERAL WELLS, TX, US.
