KMWA
VETERANS AIRPORT OF SOUTHERN ILLINOIS
PublicPUB

4 miles W of MARION, IL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 45' 18"N 89° 00' 40"W
472' MSL
1472' MSL
01E
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
12/26/24-1/23/25
No METAR is available for this location.

KMWA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 128.4

AWOS-3P

AWOS-3P
618-942-8877
119.675

Ground

GND/P
121.7

Tower

LCL/P
128.4

FAA A/FD Pages

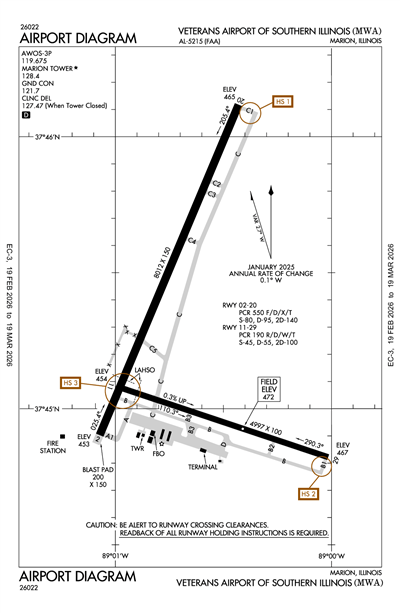

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KMWA
Domestic
1/14/251952Z !MWA 01/307 MWA TWY C5 FICON PATCHY 1/8IN WET SN OBS AT 2501141952. 2501141952-2501151952
1/14/251951Z !MWA 01/306 MWA TWY C4 FICON PATCHY 1/8IN WET SN OBS AT 2501141951. 2501141951-2501151951
1/14/251951Z !MWA 01/305 MWA TWY C3 FICON PATCHY 1/8IN WET SN OBS AT 2501141951. 2501141951-2501151951
1/14/251940Z !MWA 01/304 MWA TWY C2 FICON PATCHY 1/8IN WET SN OBS AT 2501141940. 2501141940-2501151940
1/14/251931Z !MWA 01/303 MWA TWY D FICON PATCHY 1/8IN WET SN OBS AT 2501141931. 2501141931-2501151931
1/14/251930Z !MWA 01/302 MWA TWY B2 FICON PATCHY 1/8IN WET SN OBS AT 2501141930. 2501141930-2501151930
1/14/251927Z !MWA 01/301 MWA TWY B1 FICON PATCHY 1/8IN WET SN OVER ICE OBS AT 2501141927. 2501141927-2501151927
1/12/251554Z !MWA 01/288 MWA OBST TOWER LGT (ASR 1236884) 375109.30N0885607.40W (6.9NM NNE MWA) 767.1FT (310.0FT AGL) U/S 2501121554-2504120500
1/9/251905Z !MWA 01/210 MWA OBST TOWER LGT (ASR 1006879) 373645.00N0885203.00W (10.9NM SE MWA) 1163.4FT (563.3FT AGL) U/S 2501091905-2503092359
1/7/251943Z !MWA 01/145 MWA OBST TOWER LGT (ASR 1293208) 373628.30N0885421.00W (10.1NM SSE MWA) 879.6FT (264.8FT AGL) U/S 2501071943-2502072359
1/7/251912Z !MWA 01/140 MWA RWY 20 6000FT DIST REMAINING SIGN LEFT SIDE LGT U/S 2501071912-2501172300
1/7/251912Z !MWA 01/139 MWA RWY 02 2000FT DIST REMAINING SIGN RIGHT SIDE LGT U/S 2501071912-2501172300
1/7/251912Z !MWA 01/138 MWA RWY 02 5000FT DIST REMAINING SIGN RIGHT SIDE LGT U/S 2501071912-2501172300
1/7/251911Z !MWA 01/137 MWA RWY 20 3000FT DIST REMAINING SIGN LEFT SIDE LGT U/S 2501071911-2501172300
1/5/252249Z !MWA 01/067 MWA OBST TOWER LGT (ASR 1218424) 375329.70N0890510.10W (8.9NM NNW MWA) 652.9FT (264.1FT AGL) U/S 2501052249-2502192245
1/4/251411Z !MWA 01/008 MWA OBST TOWER LGT (ASN 2019-AGL-20762-OE) 373220N0885757W (13.1NM S MWA) 1005FT (276FT AGL) U/S 2501041411-2502181411
1/1/250955Z !MWA 01/003 MWA OBST TOWER LGT (ASR 1262584) 373612.40N0885428.50W (10.3NM SSE MWA) 917.0FT (313.0FT AGL) U/S 2501010955-2504010500
12/19/241629Z !MWA 12/017 MWA RWY 11 RWY END ID LGT U/S 2412191629-2506302200
12/19/241629Z !MWA 12/016 MWA RWY 29 RWY END ID LGT U/S 2412191629-2506302200
12/19/241628Z !MWA 12/015 MWA RWY 02 RWY END ID LGT U/S 2412191628-2506302200
Yes
ALL
SVC AVBL 0700-1800; AFT HR - 618-993-2764.
WILLIAMSON COUNTY ARPT AUTH
10400 TERMINAL DR
MARION, IL 62959
Phone: 618-993-3353
DOUGLAS S KIMMEL
10400 TERMINAL DR; SUITE 200
MARION, IL 62959
Phone: 618-993-3353
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
MWA
--
ACTVT MALSR RWY 20; REIL RWY 11 & 29; PAPI RWY 02, 11 & 29; HIRL RWY 02/20; MIRL RWY 11/29 - CTAF. HIRL RWY 02/20 PRESET TO LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

8012 ft. x 150 ft.
ASPH
Good
PFC
HIGH
25 /F/C/X/U
80,000lbs
95,000lbs
140,000lbs
--
  Runway 02 Runway 20
True Heading 22°202°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 37° 44' 54"N 37° 46' 07"N
Longitude 89° 01' 05"W 89° 00' 26"W
Elevation 453' 465'
Threshold Crossing Height 36 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 11/29

4997 ft. x 100 ft.
ASPH CONC
Excellent
GRVD
MED
15 /F/C/Y/U
45,000lbs
55,000lbs
100,000lbs
--
  Runway 11 Runway 29
True Heading 108°288°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 37° 45' 05"N 37° 44' 50"N
Longitude 89° 01' 00"W 89° 00' 01"W
Elevation 454' 467'
Threshold Crossing Height 26 ft. AGL 25 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1WATERFOWL & DEER ON & INVOF ARPT.
A110-4TWY E & E4 CLSD INDEF.
A110-5HELIPADS ARE LOCATED IN THE NE CORNER OF GA RAMP. HELIPADS ARE IN NON-MOVEMENT AREA.
VETERANS AIRPORT OF SOUTHERN ILLINOIS (ICAO: KMWA, IATA: MWA) is a public airport located in MARION, IL.
