iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMVY
MARTHA'S VINEYARD
PublicPUB

3 miles S of VINEYARD HAVEN, MA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 23' 36"N 70° 36' 50"W
67' MSL
1067' MSL
15W
JET A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KMVY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 121.4

ATIS

ATIS
508-693-7685
 126.25

ASOS

ASOS
508-696-6988
 126.25

Clearance Delivery

CD/P
 124.35

Emergency

EMERG
 121.5

Ground

GND/P
 124.35

Tower

LCL/P
 121.4

FAA A/FD Pages

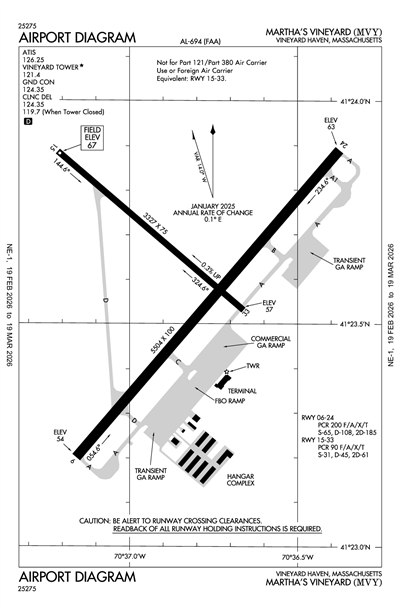

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KMVY
Domestic
12/23/240036Z !MVY 12/063 MVY AD AP WDI MIDFIELD NOT STD 2412230036-2501310036
12/23/240036Z !MVY 12/062 MVY TWY A HLDG PSN SIGN FOR RWY 06 LEFT SIDE NOT STD
2412230036-2501310035
FDC
9/26/241627Z !FDC 4/0924 MVY IAP MARTHA'S VINEYARD,
VINEYARD HAVEN, MA.
ILS OR LOC RWY 24, AMDT 3C...
VOR RWY 6, AMDT 2B...
MSA 180 DEGREES INBOUND CW 090 DEGREES INBOUND MINIMUM ALTITUDE
1900. PERM WINDMILL 837FT MSL 22.1 NM SOUTHEAST OF MVY AIRPORT
(2023-WTE-4908-OE).
2409261627-2609251626EST
12/1/231450Z !FDC 3/9609 MVY IAP MARTHA'S VINEYARD,
VINEYARD HAVEN, MA.
ILS OR LOC RWY 24, AMDT 3C...
AUTOPILOT COUPLED APPROACH NA BELOW 300.
2312011450-2512011450EST
Yes
ALL
COUNTY OF DUKES COUNTY
71 AIRPORT RD
VINEYARD HAVEN, MA 02568
Phone: 508-693-7022
GEOFFREY R. FREEMAN
71 AIRPORT RD
VINEYARD HAVEN, MA 02568
Phone: 508-693-7022
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
MVY
--
WHEN ATCT CLSD ACTVT MALSR RWY 24; REIL RWY 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Air Freight
Charter Service

Runway 06/24

5504 ft. x 100 ft.
ASPH
Fair
GRVD
HIGH

65,000lbs
108,000lbs
185,000lbs
--
  Runway 06 Runway 24
True Heading 41°221°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 23' 12"N 41° 23' 53"N
Longitude 70° 37' 10"W 70° 36' 23"W
Elevation 54' 63'
Threshold Crossing Height 53 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

3327 ft. x 75 ft.
ASPH
Good
NONE
MED

31,000lbs
45,000lbs
61,000lbs
--
  Runway 15 Runway 33
True Heading 131°311°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 23' 53"N 41° 23' 32"N
Longitude 70° 37' 13"W 70° 36' 40"W
Elevation 67' 57'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-3TWY D FM RWY 06 TO RWY 15 CLSD TO ACFT WITH OVR 9 PAX.
A110-4ARPT HAS NOISE ABATEMENT PROCS. CTC OPNS 508-693-7022. AVOID RESIDENTIAL AREAS SW OF ARPT.
A110-5HELS PROHIBITED FM HOVER TAXI, LDG AND TKOF FM T-HNGRS.
MARTHA'S VINEYARD (ICAO: KMVY, IATA: MVY) is a public airport located in VINEYARD HAVEN, MA.
