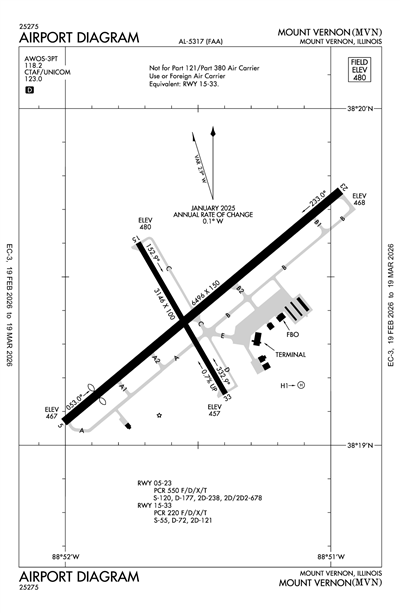

MOUNT VERNON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMVN
ICAO KMVNIATA MVNLocal MVN
MOUNT VERNON
PublicPUB

3 miles E of MOUNT VERNON, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 19' 24"N 88° 51' 31"W
Elevation
480' MSL
Pattern Alt
1480' MSL
Mag Variation
3°W
Declination
1°W
Fuel
JET A, 100LL
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KMVN VFR
7:56 PM CST
Overcast 3,900'
10sm
63°F
56°F
30.07"Hg
Calm
AO2 SLP188 T01720133 $
METAR KMVN 040156Z AUTO 00000KT 10SM OVC039 17/13 A3007 RMK AO2 SLP188 T01720133 $
+ Add Your Business

KMVN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.2
(618) 242-7933

Common

CTAF 123.0
ACTVT MALSR RY 23 - CTAF. ACTVT MIRL RY 15/33 & HIRL RY 05/23 - CTAF NIGHT ONLY.
UNICOM 123.0

Center

KANSAS CITY CENTER 127.7
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 127.7/351.825 (MOUNT VERNON RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMVN
Tue, 3/3 5:20 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
Temporary 6:00 PM CST - 8:00 PM CST
Scattered 4,000'
N/A
190° 8kts
Gusts 15kts
VFR
6:00 PM CST - 2:00 AM CST
Showers in vicinity
Broken 4,000'
6sm
VRB° 3kts
MVFR
2:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 1,500'
6sm
VRB° 3kts
MVFR
6:00 AM CST - 9:00 AM CST
Light Showers and Rain and Mist
Broken 1,000'
6sm
VRB° 3kts
IFR
9:00 AM CST - 12:00 PM CST
Showers in vicinity
Overcast 700'
6sm
VRB° 5kts
MVFR
12:00 PM CST - 6:00 PM CST
Light Thunderstorm and Rain
Broken 1,500'
4sm
200° 9kts
Gusts 17kts
TAF KMVN 032320Z 0400/0424 VRB03KT P6SM VCSH BKN040
   TEMPO 0400/0402 19008G15KT SCT040
   FM040800 VRB03KT 6SM -SHRA BR VCTS OVC015CB
   FM041200 VRB03KT 6SM -SHRA BR BKN010
   FM041500 VRB05KT P6SM VCSH OVC007
   FM041800 20009G17KT 4SM -TSRA BKN015CB
KMVN
EffectiveExpiresCategoryNOTAM
Domestic
1/28/26
1632Z
3/26/26
1200Z
!MVN 01/063 MVN OBST TOWER LGT (ASR 1270681) 381524.30N0890323.60W (10.2NM WSW MVN) 702.8FT (257.9FT AGL) U/S 2601281632-2603261200
FDC
8/18/25
1208Z
!FDC 5/9216 MVN ODP MOUNT VERNON, MOUNT VERNON, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKE-OFF MINIMUMS RWY 33: 300-1 ¼ OR STANDARD WITH MINIMUM CLIMB OF 216 FT/NM TO 700.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508181208-2708181208EST
No
0630-2000
FOR SVCS AFT HRS CALL 618-315-5462.
MT VERNON ARPT AUTHORITY
100 AVIATION DRIVE
MT VERNON, IL 62864
Phone: 618-242-7016
CHRIS COLLINS
100 AVIATION DRIVE
MT VERNON, IL 62864
Phone: 618-242-7016
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
MVN
--
ACTVT MALSR RY 23 - CTAF. ACTVT MIRL RY 15/33 & HIRL RY 05/23 - CTAF NIGHT ONLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

6496 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
177,000lbs
238,000lbs
678,000lbs
  Runway 05 Runway 23
True Heading 50°230°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 19' 04"N 38° 19' 45"N
Longitude 88° 52' 00"W 88° 50' 58"W
Elevation 467' 468'
Threshold Crossing Height 32 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No

Runway 15/33

3146 ft. x 100 ft.
ASPH
Fair
PFC
MED

55,000lbs
72,000lbs
121,000lbs
--
  Runway 15 Runway 33
True Heading 150°330°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 19' 36"N 38° 19' 09"N
Longitude 88° 51' 44"W 88° 51' 24"W
Elevation 480' 457'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No

Runway H1

80 ft. x 40 ft.

CONC
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 19' 10"N N/A
Longitude 88° 51' 07"W N/A
Elevation 457' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2MIGRATORY WATERFOWL INVOF ARPT.
A110-3FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A17-M1FOR SVCS AFT HRS CALL 618-315-5462.
A30-05/23RWY 05/23 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. 90 DAY PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - CALL AMGR. 618-242-7016
A30-15/33RWY 15/33 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. 90 DAY PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - CALL AMGR. 618-242-7016
A30-H1FOR PVT USE BY AIR-EVAC LIFETEAM ONLY.
A39-05/23PCR VALUE: 550/F/D/X/T
A39-15/33PCR VALUE: 220/F/D/X/T
A49-23RY 23 MALSR AVBL DALGT HRS.
A52-05ALSO 18 FT RR 238 FT FM RY END 498 FT R OF CNTRLN 2:1 SLOPE.
A57-05APCH RATIO TO DSPLCD THLD 34:1 OVR TREES 2583 FT FM DSPLCD THLD 158 FT R OF CNTRLN.
A58-0512 FT ROAD 0-200 FT FM THLD 395 FT R TO 495 FT R OF CNTRLN.
A81-APTACTVT MALSR RY 23 - CTAF. ACTVT MIRL RY 15/33 & HIRL RY 05/23 - CTAF NIGHT ONLY.
MOUNT VERNON (ICAO: KMVN, IATA: MVN) is a public airport located in MOUNT VERNON, IL, US.
