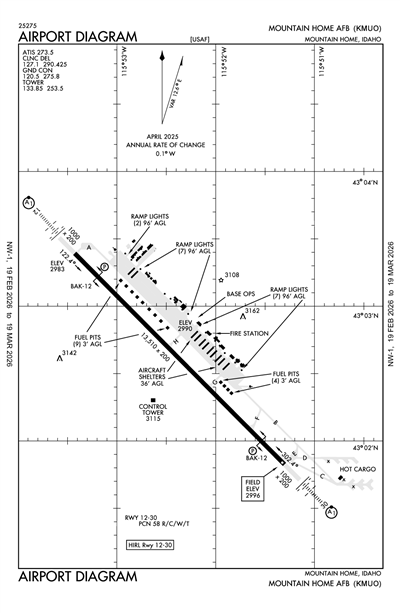

MOUNTAIN HOME AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMUO
ICAO KMUOIATA MUOLocal MUO
MOUNTAIN HOME AFB
PrivatePVT

10 miles SW of MOUNTAIN HOME, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 02' 37"N 115° 52' 21"W
Elevation
2996' MSL
Pattern Alt
3996' MSL
Mag Variation
13°E
Declination
13°E
Fuel
JET A+, CILI
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KMUO VFR
11:55 PM MST
Clear
10sm
42°F
36°F
30.06"Hg
110° 10kts
AO2A SLP181 T00560022 401561011 $
METAR KMUO 040655Z 11010KT 10SM CLR 06/02 A3006 RMK AO2A SLP181 T00560022 401561011 $
+ Add Your Business

KMUO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

Pilot-To-Dispatcher (PTD) 139.3

Clearance

Clearance Delivery 127.1

Ground

MOUNTAIN HOME GROUND 120.5
1400 - 0700Z++ MON - THU; 1400 - 0100Z++ FRI; 1500 - 2300Z++ SAT - SUN; CLSD HOL.

Tower

MOUNTAIN HOME TOWER 133.85
1400 - 0700Z++ MON - THU; 1400 - 0100Z++ FRI; 1500 - 2300Z++ SAT - SUN; CLSD HOL.

Approach

MOUNTAIN HOME APPROACH 124.8
MOUNTAIN HOME APPROACH 134.1
Secondary

Emergency

Emergency 121.5

Terminal Area Forecast

KMUO
Tue, 3/3 7:00 PM MST
Tue, 3/3 7:00 PM MST - Thu, 3/5 1:00 AM MST
VFR
7:00 PM MST - 11:00 AM MST
Few 4,000'
6sm
30.00"Hg
120° 12kts
Gusts 20kts
MVFR
Becoming 11:00 AM MST - 5:00 PM MST
Light Showers and Rain
Broken 3,000'
4.97sm
29.88"Hg
VRB° 6kts
MVFR
Becoming 5:00 PM MST - 10:00 PM MST
Light Showers and Rain
Broken 2,000'
4.97sm
29.91"Hg
300° 10kts
Gusts 18kts
VFR
Becoming 10:00 PM MST - 1:00 AM MST
Scattered 6,000'
6sm
30.00"Hg
300° 12kts
TAF KMUO 040200Z 0402/0508 12012G20KT 9999 FEW040 QNH2999INS
   BECMG 0418/0419 VRB06KT 8000 -SHRA BKN030 QNH2989INS
   BECMG 0500/0501 30010G18KT 8000 -SHRA BKN020 QNH2991INS
   BECMG 0505/0506 30012KT 9999 NSW SCT060 QNH2999INS TX13/0420Z TN04/0414Z
KMUO
EffectiveExpiresCategoryNOTAM
Military
3/2/26
2115Z
3/5/26
2115Z
M0164/26 NOTAMC M0163/26
2/12/26
0323Z
4/22/26
0700Z
OBS LIGHTS OUT OF SERVICE ON THE FOLLOWING SUNSHADES 12,15,16,19, AND 20
2/5/26
1805Z
5/5/26
0659Z
DUE TO WEAK RUNWAY AND TAXIWAY PAVEMENT CLASSIFICATION NUMBERS, AIRCRAFT LARGER THAN C130J, C40, OR P3 REQUIRE WEIGHT BEARING CAPACITY WAIVERS. CONTACT AIRFIELD MANAGEMENT NO LESS THAN 72 HOURS PRIOR TO ARRIVAL FOR COORDINATION.
1/15/26
0103Z
4/14/26
1800Z
OBSTRUCTION LIGHT ON FUEL PIT ELECTRICAL BOX UNSERVICABLE. LOCATED AT THE FOLLOWING COORDINATES: 43.05027 N, 115.87766 W AND 43.05198 N, 115.88005 W
12/18/25
1319Z
3/17/26
0100Z
INCREASED POTENTIAL FOR REDUCED BRAKING ACTION. FIRST 2000 FT OF RWY 12/30 APPROACH CENTERLINE MARKINGS OBSCURED DUE TO RUBBER BUILD UP.
Yes
MON-THU 1400-1700Z++
CLSD SAT, SUN & HOL.
1400- 0100Z++ FRI.
USAF
347 CS GROUP, MT HOME AFB
MOUNTAIN HOME, ID 83648
BASE OPERATIONS (OTB)
347 CS GROUP, MT HOME AFB
MOUNTAIN HOME, ID 83648
Phone: 208-828-2222
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
MUO
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
High & Low Pressure
Cargo Handling

Runway 12/30

13510 ft. x 200 ft.

PEM
NONE
HIGH
58/R/C/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition
Latitude 43° 03' 24"N 43° 01' 50"N
Longitude 115° 53' 25"W 115° 51' 17"W
Elevation 2,983' 2,996'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-10A-GEAR BAK-12B IN RAISED POSN; RQR 30 MIN PN FOR REMOVAL.
A110-11JASU: 2(AM32A-60)
A110-14OIL: O-148-156 JOAP.
A110-15TRANS ALERT: 1400-0700Z++ MON- HU; 1400-0100Z++ FRI; 1500-2300Z++ SAT-SUN; CLSD HOL. LAVATORY SVC & INTL GARBAGE CAP NA.
A110-17RSTD: PPR EXC VIP CODE 6 OR ABV, AIREVAC & SAAM; REQ VIP, AIREVAC & SAAM OBTAIN PPR NMBR FOR PLANNING; MIN 24 HR NOTICE & NO MORE THAN 7 DAYS PRIOR RQR. CUST PPR NO LATER THAN 72 HR PRIOR.
A110-18WATERFOWL HAZ INVOF ARPT.
A110-19TFC PAT: OVHD/FTR RECTANGULAR 4800 FT, LGT ACFT/COPTER 3800 FT. ALL DEP MAINT AT OR BLW 4300 FT TIL DEP END. CARGO RECTANGULAR AT 4300 FT.
A110-20NOISE ABATMENT: QUIET HR 0530-1300Z++.
A110-23CARRY DRAG CHUTES TO PRK OR ADVS ATCT.
A110-24MISC: ACC ACFT EXP RDCD RWY SEPN; NON RSRS PTCPG ACC ACFT ADVISE ATCT ON INITIAL CTC.
A110-26ACC COMD POST: 311.0 321.0 15091 REMARKS (HAVE QUICK TIMING AVBL 381.3) PRIM: GUNFIGHTER CTL; ALT: RAYMOND 27.
A110-30CTN: EOR TAXILINES FOR WINGSPAN OF 43 FT OR LESS.
A110-31MISC: SUBJECT TO SHORT NOTICE CLOSURE.
A110-32MISC: WX AN/FMQ-19 AUTO OBS SYS; HUMAN OBS AUGMENTED DURG OPR HR - D728-6304/C208-828-6304.
A110-33RSTD: ADHERE TO ETA +/- 30 MIN OR PPR INVALID. TSNT CREW ORDERS RQR ON ARR FOR SCTY FORCES - AMGR D728-2222/C208-828-2222.
A110-35MISC: OBS SFC VIS LTD FM 310-090.
A110-36FLUID: DE-ICE.
A110-38MISC: EMERG ATCT & WX SVC AFT HR - COMD POST D728-5800/C208-828-5800; EXP 30 MIN DELAY.
A110-39CTN: ACFT SHELTERS 1100 FT E OF CNTRLN.
A110-41AFLD SIGN ARRAY INCORRECT TWY A & INT OF TWY B & D, TWY C, TWY E & TWY F.
A110-44FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-45RSTD: AERODROME VERT TKOF/LDG NA.
A17-D1CLSD SAT, SUN & HOL.
A17-H11400- 0100Z++ FRI.
A30A-12NONSTD OVRN LEN 986 FT.
A30A-30NONSTD OVRN LEN 985 FT. HOLD SIGN AT RWY 30 & TWY E INT INCORRECTLY SITED; MAY CREATE CONFUSION OF ACTUAL VFR HOLD POSN.
A32-12/30MKD 150 FT WIDE.
A33-12/30_SURFFIRST 1280 FT BOTH ENDS CONC; MID 10940 FT ASPH/CONC.
E60-12_BAK-12B(1500 FT)
E60-30_BAK-12B(1502 FT)
MOUNTAIN HOME AFB (ICAO: KMUO, IATA: MUO) is a private airport located in MOUNTAIN HOME, ID, US.
