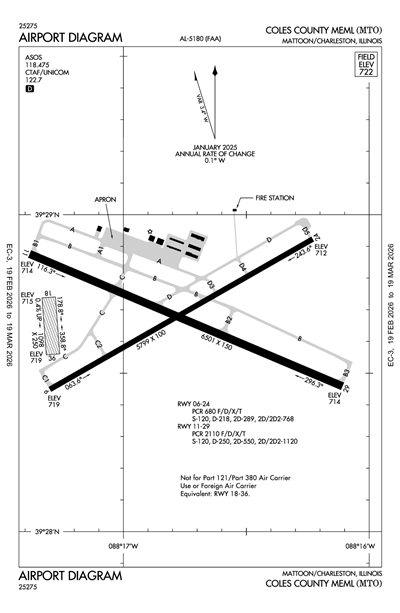

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMTO
COLES COUNTY MEML
PublicPUB

4 miles E of MATTOON/CHARLESTON, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 28' 40"N 88° 16' 48"W
722' MSL
1722' MSL
03W
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KMTO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
217-234-8442
 118.475

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KMTO
Domestic
1/16/251500Z !MTO 01/015 MTO RWY 06 VASI U/S 2501161500-2501162200
1/16/251500Z !MTO 01/014 MTO RWY 24 VASI U/S 2501161500-2501162200
1/10/251243Z !MTO 01/018 MTO COM REMOTE COM OUTLET 122.2 U/S 2501101243-2511202000EST
12/28/240500Z !MTO 12/009 MTO SVC SEE ZMP 12/057 MINOT APP CLSD SAT SUN MON FRI 0500-0459 2412280500-2504010459
FDC
12/30/241318Z !FDC 4/1872 MTO IAP COLES COUNTY MEML, MATTOON/CHARLESTON, IL.
RNAV (GPS) RWY 6, ORIG-A...
LPV DA 980/HAT 258 ALL CATS.
2412301318-2701051318EST
12/30/241311Z !FDC 4/1865 MTO ODP COLES COUNTY MEML, MATTOON/CHARLESTON, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
RWY 11: TREE 1420 FT FROM DER, 793 FT LEFT OF CENTERLINE, 49 FT AGL/753 FT MSL.
TREE 1949 FT FROM DER, 919 FT LEFT OF CENTERLINE, 764 FT MSL.
RWY 24: TERRAIN 43 FT FROM DER, 386 FT RIGHT OF CENTERLINE, 721 FT MSL.
TREES BEGINNING 782 FT FROM DER, 467 FT LEFT OF CENTERLINE, UP TO 762 FT MSL.
TREE 2071 FT FROM DER, 154 FT RIGHT OF CENTERLINE, 58 FT AGL/772 FT MSL.
TREE 2177 FT FROM DER, 45 FT RIGHT OF CENTERLINE, 66 FT AGL/779 FT MSL.
TOWER 2469 FT FROM DER, 432 FT RIGHT OF CENTERLINE, 69 FT AGL/781 FT MSL.
RWY 29: TERRAIN 64 FT FROM DER, 40 FT LEFT OF CENTERLINE, 716 FT MSL.
ELEVATOR 3169 FT FROM DER, 1146 FT LEFT OF CENTERLINE, 97 FT AGL/809 FT MSL. 2412301311-2701051311EST
No
APR-OCT M-F 0700-2000
NOV-MAR M-F 0700-1900
SAT-SUN 0700-1700
COLES COUNTY AIRPORT AUTHORITY
432 AIRPORT ROAD
MATTOON, IL 61938
Phone: 217-234-7120
ANDREW FEARN
432 AIRPORT ROAD
MATTOON, IL 61938
Phone: 217-234-7120
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
MTO
--
ACTVT MALSR RWY 29; REIL RWY 06, 11 & 24; MIRL RWY 06/24 - CTAF. ACTVT HIRL RWY 11/29 & INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
None
Air Freight
Crop Dusting
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

5799 ft. x 100 ft.
ASPH
Good
GRVD
MED

120,000lbs
218,000lbs
289,000lbs
768,000lbs
  Runway 06 Runway 24
True Heading 60°240°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 28' 27"N 39° 28' 55"N
Longitude 88° 17' 18"W 88° 16' 14"W
Elevation 719' 712'
Threshold Crossing Height 41 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 11/29

6501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 11 Runway 29
True Heading 113°293°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 39° 28' 53"N 39° 28' 28"N
Longitude 88° 17' 23"W 88° 16' 07"W
Elevation 714' 714'
Threshold Crossing Height 26 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 18/36

1098 ft. x 250 ft.

TURF
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 175°355°
Traffic Pattern Right
Markings
Markings Condition
Latitude 39° 28' 44"N 39° 28' 34"N
Longitude 88° 17' 18"W 88° 17' 17"W
Elevation 715' 719'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BIRDS ON & INVOF ARPT.
A110-3ARPT SFC COND NOT MONITORED BTN 2300Z-1300Z.
A110-4FOR CD CTC CHAMPAIGN APCH AT 217-355-4071, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921
COLES COUNTY MEML (ICAO: KMTO, IATA: MTO) is a public airport located in MATTOON/CHARLESTON, IL.
