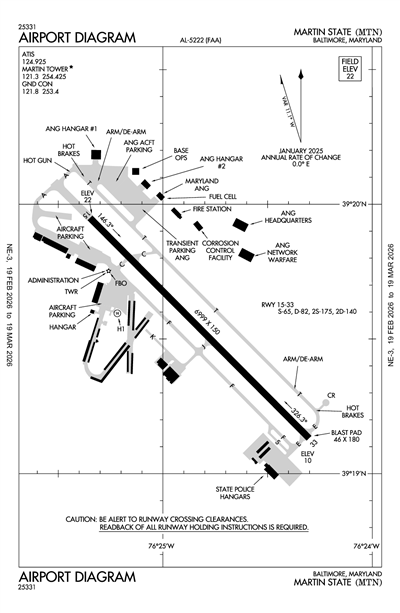

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMTN
MARTIN STATE
PublicPUB

9 miles E of BALTIMORE, MD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 19' 32"N 76° 24' 50"W
22' MSL
1022' MSL
11W
JET A (FSII), 100LL
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KMTN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 121.3

ATIS

ATIS
 124.925

AWOS-3PT

AWOS-3PT
410-682-8848
 124.925

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 121.3

Other

COMD POST
175 WG
 139.6

Terminal Area Forecast

No TAF is available for this location.
KMTN
Domestic
1/14/251930Z !MTN 01/092 MTN APRON ACFT PRKG RAMP BTN RWY 15/33 AND HANGARS 1-3
FICON PATCHY WET REMAINDER 3FT WINDROWS LEN 750FT OBS AT 2501141920.
2501141930-2501151930
1/3/251546Z !MTN 01/001 MTN OBST TOWER LGT (ASR 1041086) 392118.60N0762651.60W (2.3NM NW MTN) 230.0FT (105.0FT AGL) U/S 2501031546-2502171546
12/26/241621Z !MTN 12/018 MTN OBST TOWER LGT (ASR 1262392) 392316.10N0763245.60W (7.1NM WNW MTN) 672.9FT (296.9FT AGL) U/S 2412261621-2503260500
12/22/240022Z !MTN 12/016 MTN NAV ILS RWY 33 DME U/S 2412220022-2501262355
12/22/240021Z !MTN 12/015 MTN NAV ILS RWY 15 DME U/S 2412220021-2501262355
9/4/241858Z !MTN 09/005 MTN AIRSPACE SEE FDC 4/1783, 4/1789, 4/9433 ZDC SECURITY INSTRUCTIONS 2409041858-PERM
8/6/241834Z !MTN 08/014 MTN NAV LOC RWY 15 DME U/S 2408061834-2502062111EST
7/27/241000Z !MTN 07/018 MTN RWY 15/33 150FT WIDE WITH 15FT SHOULDERS 2407271000-PERM
FDC
1/14/251941Z !FDC 5/3445 MTN IAP MARTIN STATE, BALTIMORE, MD.
LOC RWY 15, AMDT 3D...
PROCEDURE NA WHEN ATCT CLOSED UNLESS ADVISED BY ATC..
2501141941-2508261940EST
12/22/240818Z !FDC 4/0131 MTN IAP MARTIN STATE, BALTIMORE, MD.
ILS OR LOC RWY 33, ORIG...
VDP NA. I-MTN DME OUT OF SERVICE.
2412220818-2502022355EST
12/22/240804Z !FDC 4/0129 MTN IAP MARTIN STATE, BALTIMORE, MD.
LOC RWY 15, AMDT 3D...
JIVMI FIX MINIMUMS: DUAL VOR RECEIVERS REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VDP NA. I-BQG DME OUT OF SERVICE.
2412220804-2502022355EST
8/12/242047Z !FDC 4/7265 MTN IAP MARTIN STATE, BALTIMORE, MD.
RNAV (GPS) RWY 15, AMDT 1C...
NOTE: VISUAL SEGMENT - OBSTACLES. DISREGARD VDA 3.10/TCH 55 AND VGSI AND DESCENT ANGLE NOT COINCIDENT.
2408122047-2608122047EST
8/9/241648Z !FDC 4/5977 MTN SID MARTIN STATE, BALTIMORE, MD.
TERPZ EIGHT DEPARTURE (RNAV)...
DO NOT FILE CLTCH TRANSITION, ATC ASSIGNED ONLY.
2408091648-2608091648EST
Yes
0600-2100
MAA
BOX 1 701 WILSON PT RD
BALTIMORE, MD 21220
Phone: 410-682-8800
HAROLD A. FOWLER
BOX 1, 701 WILSON POINT RD
BALTIMORE, MD 21220
Phone: 410-682-8800
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
MTN
--
DUSK-DAWN. WHEN ATCT CLSD ACTVT REIL RWYS 15 & 33; HIRL RWY 15/33 - CTAF. WHEN ATCT CLSD ACTVT TWY F LGTS - UNICOM.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 15/33

6997 ft. x 180 ft.
ASPH
Excellent
GRVD
HIGH

65,000lbs
82,000lbs
140,000lbs
--
  Runway 15 Runway 33
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 39° 19' 57"N 39° 19' 08"N
Longitude 76° 25' 21"W 76° 24' 18"W
Elevation 21' 9'
Threshold Crossing Height 37 ft. AGL 48 ft. AGL
Visual Glide Path Angle 4.01° 2.91°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

60 ft. x 60 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading 99°279°
Traffic Pattern
Markings
Markings Condition
Latitude 39° 19' 36"N N/A
Longitude 76° 25' 13"W N/A
Elevation 15' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NOISE ABATEMENT PROCS IN EFCT. WHEN ATCT CLSD NO PRACTICE LNDGS OR APCHS.
A110-10BEARING STRENGTH RWY 15/33: ST175.
A110-12CAUTION: BASH II IN EFFECT AUG-JAN.
A110-13RMKS-ANG: CALL COMD POST/RAVEN OPS 275.500 OR 139.900 10 MIN PRIOR TO LNDG.
A110-14RMKS-ANG: NO SPACE A, FLEET SVC, OR TRAN QTRS AVBL. PPR AFTER DUTY HR RQR OG/CC APVL.
A110-15RMKS-ANG: C-5/C-17 ACFT RSTRD TO TWY A.
A110-16RMKS-ANG: PPR FOR SVC AND USE OF ANG PRK RAMP ONLY, DSN 243-6630/6637/6444, C410-918-6630/6637/6444; AFTER DUTY HR CTC C410-698-8947.
A110-17FOR CD WHEN TWR CLSD CTC POTOMAC APCH AT 866-429-5882.
A110-18ARFF SVCS AVBL 24 HRS DAILY. FOR ARFF SVCS WHEN ATCT CLSD CTC ARFF STATION; CTAF OR 410-918-6257 / 410-918-6911.
A110-19NO ACFT ACCESS TO TWY S FM STRAWBERRY POINT RAMP.
A110-2SEAGULLS ON & INVOF ARPT.
A110-4ARPT CONDS UNMON 2300-0600.
A110-5MOWING OPS CONDUCTED DURG DALGT.
A110-6PPR FOR PRACTICE TKOFS & LNDGS FOR ACFT WEIGHING MORE THAN 12500 LBS.
A110-7RECREATIONAL SAILBOAT MASTS TO +50 FT & MOTOR BOATS IN WATERWAY AT AER 33 813 FT FM THR ON CNTRLN.
A110-8FOR ADDL INFO CTC AMGR 410-682-8800.
MARTIN STATE (ICAO: KMTN, IATA: MTN) is a public airport located in BALTIMORE, MD.
