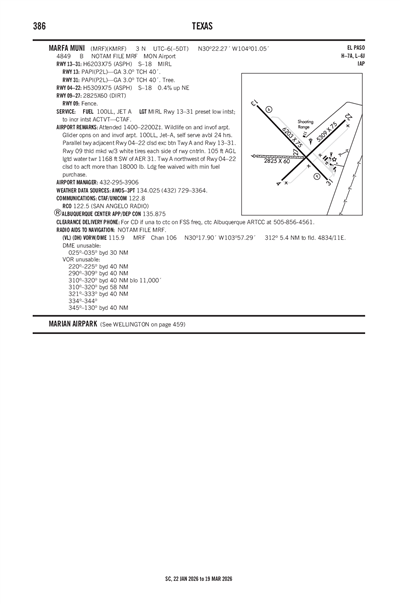

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMRF
MARFA MUNI
PublicPUB

3 miles N of MARFA, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 22' 16"N 104° 01' 03"W
4849' MSL
5849' MSL
08E
JET A, 100LL
SAN ANGELO (SJT)
EL PASO
ALBUQUERQUE (ZAB)
10/31/24-11/28/24
KE38 (18nm) VFR
5:35 AM CST
Clear
10sm
38°F
8°F
30.13"Hg
Calm
AO2 T00321132
KE38 091135Z AUTO 00000KT 10SM CLR 03/M13 A3013 RMK AO2 T00321132
Add Your Business

KMRF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
432-729-3364
 134.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFST (66nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 6:00 PM CST
Sky Clear
6sm
240° 6kts
VFR
6:00 PM CST - 6:00 AM CST
Sky Clear
6sm
180° 7kts
KFST 091120Z 0912/1012 24006KT P6SM SKC
   FM100000 18007KT P6SM SKC
KMRF
Domestic
10/30/241849Z !MRF 10/009 MRF SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2410301849-2411122359EST
No
0800-1600
PRESIDIO COUNTY
P.O. BOX 606
MARFA, TX 79843
Phone: 432-729-4452
RUDY ESTOR
45101 SH 17
MARFA, TX 79843
Phone: 432-295-3906
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
MRF
--
MIRL RWY 13/31 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Glider Towing

Runway 04/22

5309 ft. x 75 ft.
ASPH
Good
NONE


18,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 30° 21' 57"N 30° 22' 33"N
Longitude 104° 01' 14"W 104° 00' 31"W
Elevation 4,827' 4,849'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

2825 ft. x 60 ft.
DIRT
Poor
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 30° 22' 11"N 30° 22' 10"N
Longitude 104° 01' 31"W 104° 00' 59"W
Elevation 4,829' 4,834'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

6203 ft. x 75 ft.
ASPH
Good
NONE
MED

18,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 22' 41"N 30° 21' 57"N
Longitude 104° 01' 32"W 104° 00' 42"W
Elevation 4,840' 4,830'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1105 FT AGL LGTD WATER TWR 1168 FT SW OF AER 31.
A110-2GLIDER OPNS ON & INVOF ARPT.
A110-3WILDLIFE ON & INVOF ARPT.
A110-4PARL TWY ADJ RWY 04/22 CLSD EXC BTN TWY A AND RWY 13/31.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A110-8TWY A NORTHWEST OF RWY 04/22 CLSD TO ACFT MORE THAN 18000 LB.
A110-9RWY 9 THLD MKD W/3 WHITE TIRES EACH SIDE OF RWY CNTRLN.
MARFA MUNI (ICAO: KMRF, IATA: MRF) is a public airport located in MARFA, TX.
