iFlightPlanner



...

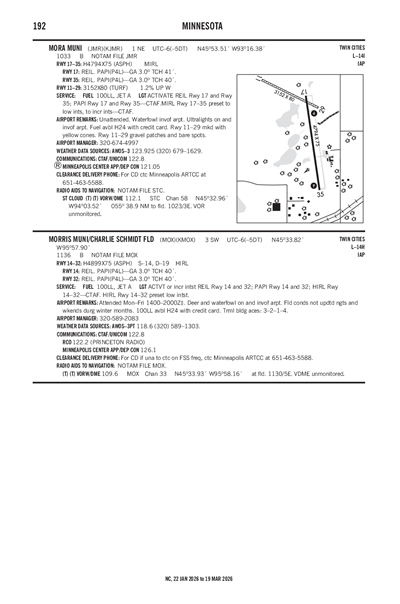

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMOX
MORRIS MUNI/CHARLIE SCHMIDT FLD
PublicPUB

3 miles SW of MORRIS, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 33' 55"N 95° 57' 59"W
1136' MSL
2136' MSL
02E
JET A, 100LL
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
7/11/24-8/8/24
KMOX VFR
5:35 AM CDT
Clear
10sm
68°F
66°F
29.63"Hg
150° 8kts
AO2
KMOX 191035Z AUTO 15008KT 10SM CLR 20/19 A2963 RMK AO2
Add Your Business

KMOX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
320-589-1303
 118.6

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAXN (30nm)
Thu, 9/19 2:01 AM CDT
Thu, 9/19 2:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
2:00 AM CDT - 8:00 AM CDT
Few 25,000'
6sm
180° 12kts
Gusts 20kts
VFR
8:00 AM CDT - 11:00 AM CDT
Scattered 6,000'
6sm
180° 11kts
VFR
11:00 AM CDT - 10:00 PM CDT
Scattered 8,000'
6sm
220° 11kts
VFR
10:00 PM CDT - 1:00 AM CDT
Overcast 25,000'
6sm
250° 6kts
KAXN 190701Z 1907/2006 18012G20KT P6SM FEW250
   FM191300 18011KT P6SM SCT060
   FM191600 22011KT P6SM SCT080
   FM200300 25006KT P6SM OVC250
KMOX
Domestic
9/17/242223Z !MOX 09/004 MOX AD AP 100LL FUEL NOT AVBL 2409172223-2409202200
9/10/242350Z !MOX 09/002 MOX RWY 32 PAPI U/S 2409102350-2409302359
8/6/242008Z !MOX 08/002 MOX COM REMOTE COM OUTLET 122.25 CHANGED TO 122.2 2408062008-PERM
7/31/241756Z !MOX 07/004 MOX RWY 14 PAPI U/S 2407311756-2409302359
2/14/241617Z !MOX 02/002 MOX RWY 04/22 CLSD 2402141617-PERM
FDC
8/27/241526Z !FDC 4/6540 MOX IAP MORRIS MUNI/CHARLIE SCHMIDT FLD,
MORRIS, MN.
VOR RWY 32, AMDT 6...
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE BBB
ALTIMETER SETTING AND INCREASE ALL MDAS 60 FEET AND INCREASE S-32
VISIBILITY CAT C 1/8 SM AND CIRCLING VISIBILITY CAT C 1/4 SM;
INCREASE JEXTER FIX MINIMUMS S-32 AND CIRCLING VISIBILITY CAT C 1/4
SM. CHANGE NOTE TO READ: VDP NA WHEN USING BBB ALTIMETER SETTING.
DELETE ALL REFERENCE TO RWYS 4 AND 22. DELETE NOTE: CIRCLING NA
RWYS 4 AND 22.
THIS IS VOR RWY 32, AMDT 6A. 2408271526-PERM
8/27/241526Z !FDC 4/6539 MOX IAP MORRIS MUNI/CHARLIE SCHMIDT FLD,
MORRIS, MN.
VOR RWY 14, AMDT 2...
CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT
RECEIVED, USE BBB ALTIMETER SETTING AND INCREASE ALL MDAS 60 FEET
AND INCREASE S-14 AND CIRCLING VISIBILITY CAT C 1/4 SM. CHANGE NOTE
TO READ: VDP NA WHEN USING BBB ALTIMETER SETTING. DELETE ALL
REFERENCE TO RWYS 4 AND 22. DELETE NOTE: CIRCLING NA RWYS 4 AND 22.
THIS IS VOR RWY 14, AMDT 2A. 2408271526-PERM
8/27/241526Z !FDC 4/6538 MOX IAP MORRIS MUNI/CHARLIE SCHMIDT FLD,
MORRIS, MN.
RNAV (GPS) RWY 32, AMDT 2...
DELETE NOTE: CIRCLING NA TO RWYS 4 AND 22. CHANGE ALTIMETER NOTE TO
READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE BBB ALTIMETER
SETTING AND INCREASE LPV DA TO 1380 FEET AND LNAV/VNAV DA TO1477
FEET. INCREASE ALL MDAS 60 FEET AND VISIBILITY LNAV CAT C 1/8 SM
AND VISIBILITY CIRCLING CAT C 1/4 SM. CHANGE NOTE TO READ:
BARO-VNAV AND VDP NA WHEN USING BBB ALTIMETER SETTING. DELETE ALL
REFERENCE TO RWYS 4 AND 22.
THIS IS RNAV (GPS) RWY 32, AMDT 2A. 2408271526-PERM
8/27/241526Z !FDC 4/6537 MOX IAP MORRIS MUNI/CHARLIE SCHMIDT FLD,
MORRIS, MN.
RNAV (GPS) RWY 14, AMDT 2...
DELETE NOTE: CIRCLING NA TO RWYS 4 AND 22. CHANGE ALTIMETER NOTE TO
READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE BBB ALTIMETER
SETTING AND INCREASE LPV AND LNAV/VNAV DA TO 1440 FEET. INCREASE
ALL MDAS 60 FEET AND VISIBILITY LNAV CAT C 1/8 SM AND VISIBILITY
CIRCLING CAT C 1/4 SM. CHANGE NOTE TO READ: BARO-VNAV AND VDP NA
WHEN USING BBB ALTIMETER SETTING. DELETE ALL REFERENCE TO RWYS 4
AND 22.
THIS IS RNAV (GPS) RWY 14, AMDT 2A. 2408271526-PERM
No
MON-FRI 0800-1400
CITY OF MORRIS
609 OREGON AVE, PO BOX 438
MORRIS, MN 56267-0438
Phone: 320-589-3141
THOMAS KLOOS
50725 STATE HIGHWAY 28
MORRIS, MN 56267-4412
Phone: 320-589-2083
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
MOX
--
ACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF. HIRL RWY 14/32 PRESET LOW INTST.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
6
3
0
1
0
0
None
None
None
None
Aircraft Sales

Runway 04/22

2637 ft. x 145 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 48°228°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 33' 57"N 45° 34' 14"N
Longitude 95° 58' 22"W 95° 57' 54"W
Elevation 1,123' 1,136'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14/32

4899 ft. x 75 ft.
ASPH
Fair
NONE
HIGH

14,000lbs
19,000lbs
--
--
  Runway 14 Runway 32
True Heading 144°324°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR GOOD
Latitude 45° 34' 08"N 45° 33' 29"N
Longitude 95° 58' 14"W 95° 57' 34"W
Elevation 1,128' 1,118'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1DEER & WATERFOWL ON & INVOF ARPT.
A110-2FLD CONDS NOT UPDTD NGTS & WKENDS DURG WINTER MONTHS.
A110-5TRML BLDG ACES: 3-2-1-4.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MORRIS MUNI/CHARLIE SCHMIDT FLD (ICAO: KMOX, IATA: MOX) is a public airport located in MORRIS, MN.
