KMOT
MINOT INTL
PublicPUB

2 miles N of MINOT, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 15' 28"N 101° 16' 41"W
1716' MSL
2716' MSL
06E
JET A, 100LL
GRAND FORKS (GFK)
BILLINGS
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KMOT VFR
5:54 AM CST
Clear
10sm
44°F
30°F
29.87"Hg
200° 14kts
Gusts 24kts
AO2 SLP127 T00671011 10072 20056 58020
KMOT 091154Z AUTO 20014G24KT 10SM CLR 07/M01 A2987 RMK AO2 SLP127 T00671011 10072 20056 58020
Add Your Business

KMOT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.2

ASOS

ASOS
701-837-9379
 118.725

Ground

GND/P
 121.9

Tower

LCL/P
 118.2

FAA A/FD Pages

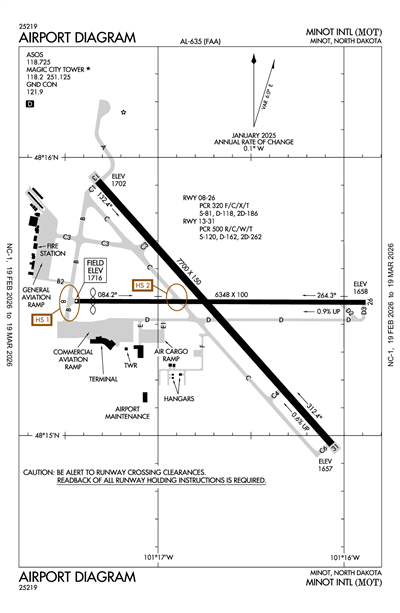

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMOT
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 5:00 AM CST
Scattered 20,000'
Few 15,000'
6sm
200° 11kts
VFR
5:00 AM CST - 6:00 AM CST
Scattered 25,000'
Few 15,000'
6sm
230° 5kts
KMOT 091120Z 0912/1012 20011KT P6SM FEW150 SCT200
   FM101100 23005KT P6SM FEW150 SCT250
KMOT
Domestic
11/4/241538Z !MOT 11/005 MOT OBST TOWER LGT (ASR 1291496) 481536.30N1011836.90W (1.3NM W MOT) 1846.8FT (108.9FT AGL) U/S 2411041538-2503041538
10/29/242021Z !MOT 10/028 MOT AD AP ALL SFC WIP CONST NE SIDE 2410292021-2411222300
9/1/240456Z !MOT 09/002 MOT OBST WIND TURBINE LGT (ASN 2005-AGL-1593-OE) 480551N1005358W (18.0NM ESE MOT) 1976FT (290FT AGL) U/S 2409010456-2411302359
9/1/240455Z !MOT 09/001 MOT OBST WIND TURBINE LGT (ASN 2005-AGL-1585-OE) 480460N1005533W (17.6NM SE MOT) 1960FT (290FT AGL) U/S 2409010455-2411302359
FDC
8/9/231327Z !FDC 3/0859 MOT ODP MINOT INTL, MINOT, ND.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A...
TAKE-OFF MINIMUMS: RWY 26, 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 225 FEET PER NM TO 2000. ALL OTHER DATA REMAINS AS PUBLISHED.
2308091327-2508091327EST
Yes
ALL
CITY OF MINOT
305 AIRPORT RD., SUITE 216
MINOT, ND 58703
Phone: 701-857-4724
JENNIFER ECKMAN
305 AIRPORT RD, SUITE 216
MINOT, ND 58703
Phone: 701-857-4724
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
MOT
--
WHEN ATCT IS CLSD, ACTVT MALSR RWY 31; REIL RWYS 08 & 26; HIRL RWYS 08/26 & 13/31 - CTAF. PAPI RWYS 08, 13, & 26 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
None
Crop Dusting
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

6348 ft. x 100 ft.
ASPH
Fair
GRVD
HIGH
34 /F/D/W/T
120,000lbs
150,000lbs
240,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 15' 29"N 48° 15' 29"N
Longitude 101° 17' 27"W 101° 15' 53"W
Elevation 1,716' 1,658'
Threshold Crossing Height 45 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 13/31

7700 ft. x 150 ft.
CONC
Good
GRVD
HIGH
43 /R/C/W/T
120,000lbs
150,000lbs
240,000lbs
--
  Runway 13 Runway 31
True Heading 138°318°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 48° 15' 55"N 48° 14' 58"N
Longitude 101° 17' 19"W 101° 16' 04"W
Elevation 1,702' 1,657'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1DEER & BIRDS INVOF ARPT.
A110-2TWYS E, B2, F, AND A ARE MKD WITH EDGE REFLECTORS.
A110-3CUSTOMS SVC AVBL 24 HRS; FOR CUSTOMS CALL 701-838-6704.
A110-7MINOT AFB (MIB) ASR OTS FOR PREVENTIVE MAINTENANCE FRIDAYS 0700-0900 & ALTN TUESDAYS 0630-0830.
A110-8RDO EQUIPD ACFT MUST ANNC ON CTAF - 118.2 WHEN TWR IS CLSD.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MINOT INTL (ICAO: KMOT, IATA: MOT) is a public airport located in MINOT, ND.
