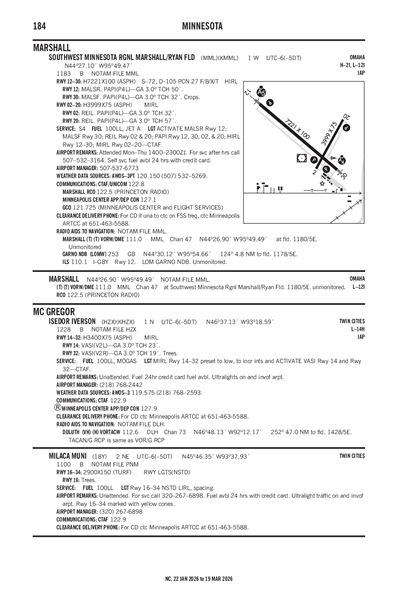

SOUTHWEST MINNESOTA RGNL MARSHALL/RYAN FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMML
ICAO KMMLIATA MMLLocal MML
SOUTHWEST MINNESOTA RGNL MARSHALL/RYAN FLD
PublicPUB

1 miles W of MARSHALL, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 27' 06"N 95° 49' 28"W
Elevation
1183' MSL
Pattern Alt
2183' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A, 100LL
FSS
PRINCETON (PNM)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KMML LIFR
4:56 AM CST
Mist
Overcast 300'
1.25sm
34°F
34°F
30.12"Hg
220° 6kts
AO2 SLP210 T00110011 FZRANO
METAR KMML 041056Z AUTO 22006KT 1 1/4SM BR OVC003 01/01 A3012 RMK AO2 SLP210 T00110011 FZRANO
+ Add Your Business

KMML FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 120.15
(507) 532-5269

Common

CTAF 122.8
ACTVT MALSR RWY 12; MALSF RWY 30; REIL RWY 02 & 20; PAPI RWY 12, 30, 02, & 20; HIRL RWY 12/30; MIRL RWY 02/20 - CTAF.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 127.1
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 127.1/290.2 (REDWOOD FALLS RCAG).

Flight Service

Flight Service 122.5
(PNM)
Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.

Terminal Area Forecast

KRWF (33nm)
Wed, 3/4 2:35 AM CST
Wed, 3/4 3:00 AM CST - Thu, 3/5 12:00 AM CST
LIFR
Temporary 3:00 AM CST - 7:00 AM CST
Fog
Obscured
0.5sm
Calm
IFR
3:00 AM CST - 11:00 AM CST
Mist
Obscured
1sm
190° 5kts
MVFR
11:00 AM CST - 12:00 PM CST
Mist
Scattered 2,500'
4sm
190° 8kts
VFR
12:00 PM CST - 12:00 AM CST
Scattered 25,000'
6sm
180° 7kts
TAF KRWF 040835Z 0409/0506 19005KT 1SM BR VV004
   TEMPO 0409/0413 1/2SM FG VV002
   FM041700 19008KT 4SM BR SCT025
   FM041800 18007KT P6SM SCT250
KMML
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
2353Z
!MML 02/011 MML NAV RWY 12 LOC FREQ NOW 109.7 2602262353-2603192000EST
2/26/26
1256Z
!MML 02/010 MML NAV ILS RWY 12 OM U/S 2602261256-2710272111EST
2/26/26
0537Z
3/13/26
0437Z
!MML 02/009 MML OBST TOWER LGT (ASR 1266234) 442018.10N0955646.40W (8.6NM SW MML) 1797.9FT (250.0FT AGL) U/S 2602260537-2603130437
1/28/26
0512Z
3/14/26
0511Z
!MML 01/007 MML OBST TOWER LGT (ASR 1009337) 441940.00N0954931.00W (7.4NM S MML) 1919.9FT (419.9FT AGL) U/S 2601280512-2603140511
FDC
2/26/26
1346Z
!FDC 6/0714 MML IAP SOUTHWEST MINNESOTA RGNL MARSHALL/RYAN FLD, MARSHALL, MN.
ILS OR LOC RWY 12, AMDT 2B...
NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 1400.
2602261346-2610081346EST
No
MON-THU 0800-1700
FOR SVC AFT HRS CALL 507-532-3164.
CITY OF MARSHALL
344 W MAIN ST
MARSHALL, MN 56258
Phone: 507-537-6760
JASON ANDERSON
344 W MAIN ST
MARSHALL, MN 56258
Phone: 507-537-6773
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
MML
--
ACTVT MALSR RWY 12; MALSF RWY 30; REIL RWY 02 & 20; PAPI RWY 12, 30, 02, & 20; HIRL RWY 12/30; MIRL RWY 02/20 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

3999 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 28°208°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 44° 26' 46"N 44° 27' 21"N
Longitude 95° 49' 21"W 95° 48' 55"W
Elevation 1,180' 1,172'
Threshold Crossing Height 32 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 12/30

7221 ft. x 100 ft.
ASPH
Fair
NONE
HIGH
27/F/B/X/T
72,000lbs
105,000lbs
--
--
  Runway 12 Runway 30
True Heading 130°310°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 27' 31"N 44° 26' 45"N
Longitude 95° 50' 17"W 95° 49' 01"W
Elevation 1,183' 1,178'
Threshold Crossing Height 50 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSF
Centerline Lights No No
Runway End Identifier Lights No No
A110-1GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A17-M3FOR SVC AFT HRS CALL 507-532-3164.
A70-100LLFUEL AVBL H24 SELF SVC VIA CREDIT CARD.
A81-APTACTVT MALSR RWY 12; MALSF RWY 30; REIL RWY 02 & 20; PAPI RWY 12, 30, 02, & 20; HIRL RWY 12/30; MIRL RWY 02/20 - CTAF.
SOUTHWEST MINNESOTA RGNL MARSHALL/RYAN FLD (ICAO: KMML, IATA: MML) is a public airport located in MARSHALL, MN, US.
