MERIDEN MARKHAM MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMMK
ICAO KMMKLocal MMK
MERIDEN MARKHAM MUNI
PublicPUB

3 miles SW of MERIDEN, CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 30' 31"N 72° 49' 46"W
Elevation
103' MSL
Pattern Alt
1103' MSL
Mag Variation
13°W
Declination
14°W
Fuel
100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KMMK IFR
6:53 AM EST
Mist
Broken 1,700'
2sm
31°F
31°F
30.24"Hg
Calm
AO2 SLP240 60004 70037 I1000 I6002 T10061006 10006 21017 53018
METAR KMMK 041153Z AUTO 00000KT 2SM BR BKN017 M01/M01 A3024 RMK AO2 SLP240 60004 70037 I1000 I6002 T10061006 10006 21017 53018
+ Add Your Business

KMMK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 134.925
(203) 639-9405

Common

CTAF 123.05
ACTVT REIL RWY 36; MIRL RWY 18/36 - CTAF.
UNICOM 123.05

Clearance

Clearance Delivery 120.65

Approach

BRADLEY APPROACH 127.8

Departure

BRADLEY DEPARTURE 127.8

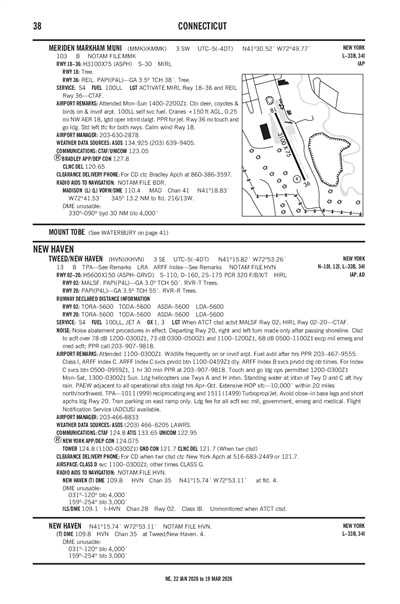

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBDR (25nm)
Wed, 3/4 6:23 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Mist
Broken 6,000'
6sm
VRB° 4kts
VFR
9:00 AM EST - 1:00 PM EST
Broken 10,000'
Broken 6,000'
6sm
VRB° 5kts
VFR
1:00 PM EST - 3:00 PM EST
Broken 15,000'
Broken 6,000'
6sm
210° 6kts
VFR
3:00 PM EST - 9:00 PM EST
Broken 25,000'
Scattered 10,000'
6sm
VRB° 5kts
MVFR
9:00 PM EST - 11:00 PM EST
Mist
Broken 1,500'
4sm
VRB° 2kts
IFR
11:00 PM EST - 7:00 AM EST
Mist
Broken 600'
2sm
VRB° 2kts
TAF KBDR 041123Z 0412/0512 VRB04KT 6SM BR BKN060
   FM041400 VRB05KT P6SM BKN060 BKN100
   FM041800 21006KT P6SM BKN060 BKN150
   FM042000 VRB05KT P6SM SCT100 BKN250
   FM050200 VRB02KT 4SM BR BKN015
   FM050400 VRB02KT 2SM BR BKN006
KMMK
EffectiveExpiresCategoryNOTAM
Domestic
3/6/26
0500Z
3/6/26
1100Z
!MMK 03/003 MMK COM CLR DELIVERY 120.65 U/S 2603060500-2603061100
3/3/26
2147Z
3/4/26
1500Z
!MMK 03/002 MMK AD AP CLSD 2603032147-2603041500
3/1/26
2227Z
3/16/26
2227Z
!MMK 03/001 MMK OBST TOWER LGT (ASN 2020-ANE-4341-OE) 413049N0725021W (0.5NM WNW MMK) 308FT (90FT AGL) U/S 2603012227-2603162227
2/28/26
2212Z
3/15/26
2212Z
!MMK 02/057 MMK OBST POWER LINE LGT (ASN 2017-ANE-4098-OE) 413141N0725006W (1.2NM NNW MMK) 353FT (78FT AGL) U/S 2602282212-2603152212
2/28/26
1624Z
3/7/26
0500Z
!MMK 02/056 MMK AD AP FUEL NOT AVBL 2602281624-2603070500
2/23/26
2314Z
3/10/26
2314Z
!MMK 02/046 MMK OBST POWER LINE LGT (ASN 2022-ANE-1525-OE) 413142N0725016W (1.2NM NNW MMK) 320FT (107FT AGL) U/S 2602232314-2603102314
2/20/26
1347Z
3/7/26
1347Z
!MMK 02/043 MMK OBST POWER LINE LGT (ASN 2020-ANE-6503-OE) 413011N0725012W (0.5NM SW MMK) 295FT (61FT AGL) U/S 2602201347-2603071347
2/20/26
1344Z
3/7/26
1344Z
!MMK 02/042 MMK OBST POWER LINE LGT (ASN 2020-ANE-4368-OE) 413009N0725016W (0.5NM SW MMK) 329FT (86FT AGL) U/S 2602201344-2603071344
2/20/26
1338Z
3/7/26
1338Z
!MMK 02/041 MMK OBST POWER LINE LGT (ASN 2021-ANE-2926-OE) 412953N0725043W (1.0NM SW MMK) 338FT (61FT AGL) U/S 2602201338-2603071338
2/19/26
1357Z
3/6/26
1357Z
!MMK 02/040 MMK OBST POWER LINE LGT (ASN 2017-ANE-4094-OE) 413143N0725019W (1.3NM NNW MMK) 355FT (115FT AGL) U/S 2602191357-2603061357
2/19/26
1352Z
3/6/26
1352Z
!MMK 02/039 MMK OBST POWER LINE LGT (ASN 2017-ANE-4095-OE) 413148N0725026W (1.4NM NNW MMK) 422FT (83FT AGL) U/S 2602191352-2603061352
2/18/26
0805Z
3/5/26
0805Z
!MMK 02/037 MMK OBST POWER LINE LGT (ASN 2020-ANE-6504-OE) 413007N0725017W (0.6NM SW MMK) 307FT (61FT AGL) U/S 2602180805-2603050805
2/5/26
1525Z
3/15/26
2359Z
!MMK 02/015 MMK APRON ALL 10FT SNOWBANKS ADJ 2602051525-2603152359
1/24/26
1340Z
4/24/26
2300Z
!MMK 01/056 MMK OBST TOWER LGT (ASR UNKNOWN) 413000.00N0725030.77W (0.9NM SW MMK) 455FT (102FT AGL) U/S 2601241340-2604242300
1/15/26
1836Z
12/31/26
2359Z
!MMK 01/032 MMK OBST CRANE (ASN UNKNOWN) 413051N0724958W (.25NM NW MMK) 250FT (150FT AGL) FLAGGED AND LGTD 2601151836-2612312359
1/13/26
1615Z
12/31/26
2359Z
!MMK 01/029 MMK AD AP WILDLIFE HAZARD 2601131615-2612312359
FDC
2/23/26
1440Z
3/26/26
1440Z
!FDC 6/8341 MMK IAP MERIDEN MARKHAM MUNI, MERIDEN, CT.
VOR RWY 36, AMDT 5...
MISSED APPROACH: CLIMBING RIGHT TURN TO 2100 ON MAD VOR/DME R-345 TO ACELA INT/MAD 8.50 DME AND HOLD.
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HFD VOR OUT OF SERVICE. 2602231440-2603261440EST
2/23/26
1440Z
3/26/26
1440Z
!FDC 6/8336 MMK IAP MERIDEN MARKHAM MUNI, MERIDEN, CT.
VOR RWY 36, AMDT 5...
MISSED APPROACH: CLIMBING RIGHT TURN TO 2100 ON MAD VOR/DME R-345 TO ACELA INT/MAD 8.50 DME AND HOLD.
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HFD VOR OUT OF SERVICE. 2602231440-2603261440EST
8/27/25
1839Z
!FDC 5/4738 MMK ODP MERIDEN MARKHAM MUNI, MERIDEN, CT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKE-OFF MINIMUMS RWY 36, NA - OBSTACLES.
DEPARTURE ROUTE DESCRIPTION RWY 36, NA.
TAKEOFF OBSTACLE NOTES: RWY 18, NOTE: RWY 18: TREES AND TRANSMISSION LINES BEGINNING 50 FT FROM DER, 6 FT RIGHT OF CENTERLINE, UP TO 100 FT AGL/205 FT MSL.
MULTIPLE TREES BEGINNING 265 FT FROM DER, 114 FT LEFT OF CENTERLINE, UP TO 100 FT AGL/196 FT MSL.
MULTIPLE TREES, TRANSMISSION LINE, TOWER BEGINNING 841 FT FROM DER, ON AND LEFT OF CENTERLINE, UP TO 100 FT AGL/199 FT MSL.
TREES, TRANSMISSION LINE, TOWER BEGINNING 914 FT FROM DER, 24 FT RIGHT OF CENTERLINE, UP TO 100 FT AGL/258 FT MSL.
MULTIPLE RIDGES BEGINNING 1.8 NM FROM DER, 1576 FT LEFT OF CENTERLINE, UP TO 502 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508271839-2708272359EST
No
MON-SUN 0900-1700
CITY OF MERIDEN
CITY MANAGER, CITY HALL 142 E MAIN ST
MERIDEN, CT 06450
Phone: (203) 630-4115
CONSTANCE CASTILLO
213 EVANSVILLE AVENUE
MERIDEN, CT 06451
Phone: 203-630-2878
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
MMK
--
ACTVT REIL RWY 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

3100 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 162°342°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 30' 46"N 41° 30' 17"N
Longitude 72° 49' 53"W 72° 49' 40"W
Elevation 103' 99'
Threshold Crossing Height -- 38 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1RWY 36 NO TGLS.
A110-10CRANES 150 FT AGL, 0.25 MI NW AER 18, LGTD. OPER INTMT DALGT HRS.
A110-2PPR FOR JET ACFT.
A110-6CALM WIND RWY 18.
A110-7STD LEFT TFC, BOTH RWYS.
A110-8FOR CD CTC BRADLEY APCH AT 860-386-3597.
A110-9CTN DEER, COYOTES & BIRDS ON & INVOF ARPT.
A58-185 FT BRUSH, 0 FT DSTC, 161 FT R, 8 FT BR, 190 FT DSTC.
A70-100LLSELF SVC FUEL.
A81-APTACTVT REIL RWY 36; MIRL RWY 18/36 - CTAF.
MERIDEN MARKHAM MUNI (ICAO: KMMK, IATA: MMK) is a public airport located in MERIDEN, CT, US.
