KMLI
QUAD CITIES INTL
PublicPUB

3 miles S of MOLINE, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 26' 54"N 90° 30' 28"W
590' MSL
1590' MSL
01E
JET A, 100LL
KANKAKEE (IKK)
CHICAGO
CHICAGO (ZAU)
10/31/24-11/28/24
KMLI VFR
5:52 AM CST
Clear
9sm
42°F
39°F
30.21"Hg
080° 7kts
AO2 SLP234 T00560039 10072 20039 58010
KMLI 091152Z 08007KT 9SM CLR 06/04 A3021 RMK AO2 SLP234 T00560039 10072 20039 58010
Add Your Business

KMLI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.4

ATIS

ATIS
 121.2

ASOS

ASOS
309-732-8731
 121.2

Approach/Departure

APCH/P DEP/P
SOUTH OF ACTIVE RWY
 133.275
APCH/P DEP/P IC
NORTH OF ACTIVE RWY
 125.95

Clearance Delivery

CD/P
 124.05

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.4

Other

CLASS C
NORTH OF ACTIVE RWY
 125.95
CLASS C
SOUTH OF ACTIVE RWY
 133.275

FAA A/FD Pages

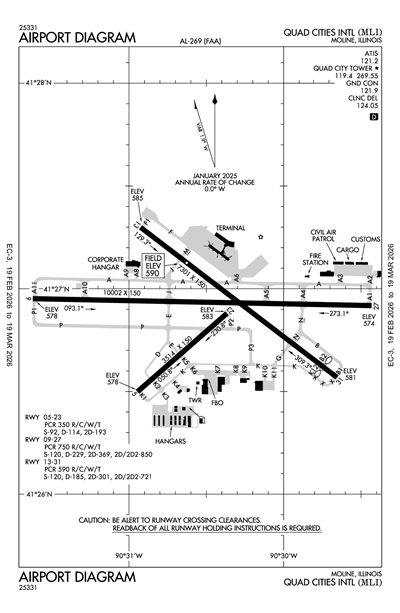

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMLI
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 4:00 PM CST
Broken 15,000'
6sm
090° 5kts
VFR
2:00 PM CST - 4:00 PM CST
Light Showers and Rain
Broken 4,000'
6sm
Calm
VFR
4:00 PM CST - 7:00 PM CST
Light Showers and Rain
Overcast 3,500'
Scattered 2,500'
6sm
120° 10kts
Gusts 18kts
MVFR
7:00 PM CST - 9:00 PM CST
Light Showers and Rain
Overcast 2,500'
Scattered 1,500'
6sm
130° 9kts
MVFR
9:00 PM CST - 11:00 PM CST
Light Showers and Rain
Overcast 1,700'
Scattered 900'
5sm
140° 9kts
IFR
11:00 PM CST - 2:00 AM CST
Light Drizzle and Mist
Overcast 900'
3sm
150° 8kts
MVFR
2:00 AM CST - 6:00 AM CST
Light Drizzle and Mist
Broken 1,100'
5sm
190° 7kts
KMLI 091120Z 0912/1012 09005KT P6SM BKN150
   PROB30 0920/0922 6SM -SHRA BKN040
   FM092200 12010G18KT 6SM -SHRA SCT025 OVC035
   FM100100 13009KT 6SM -SHRA SCT015 OVC025
   FM100300 14009KT 5SM -SHRA SCT009 OVC017
   FM100500 15008KT 3SM -DZ BR OVC009
   FM100800 19007KT 5SM -DZ BR BKN011
KMLI
Domestic
11/6/241400Z !MLI 11/006 MLI RWY 23 PAPI U/S 2411061400-2411061800
11/6/241400Z !MLI 11/005 MLI RWY 31 PAPI U/S 2411061400-2411061800
11/4/241244Z !MLI 11/004 MLI RWY 31 4000FT DIST REMAINING SIGN LGT U/S 2411041244-2411150200
11/3/240015Z !MLI 11/003 MLI TWY G HLDG PSN SIGN FOR RWY 13/31 LGT U/S 2411030015-2411070200
11/1/240502Z !MLI 11/002 MLI OBST TOWER LGT (ASR 1008680) 411423.10N0902542.40W (13.0NM SSE MLI) 1003.9FT (294.9FT AGL) U/S 2411010502-2411300001
10/22/240132Z !MLI 10/038 MLI OBST TOWER LGT (ASR 1225582) 411844.50N0902246.20W (10.0NM SE MLI) 1849.1FT (1096.1FT AGL) U/S 2410220132-2502222359
10/6/242340Z !MLI 10/011 MLI OBST TOWER LGT (ASR 1011366) 412320.00N0903059.00W (3.6NM S MLI) 979.0FT (238.8FT AGL) U/S 2410062340-2412152359
10/1/240519Z !MLI 10/003 MLI OBST TOWER LGT (ASN 2009-ACE-1145-OE) 412752N0903918W (6.7NM W MLI) 775FT (215FT AGL) U/S 2410010519-2501012359
10/1/240519Z !MLI 10/002 MLI OBST TOWER LGT (ASR UNKNOWN) 412733.21N0903907.56W (6.3NM W MLI) 775FT (215FT AGL) U/S 2410010519-2501012359
9/27/240653Z !MLI 09/040 MLI OBST TOWER LGT (ASR 1244168) 412131.90N0903450.10W (6.3NM SSW MLI) 1024.9FT (259.8FT AGL) U/S 2409270653-2411282359
8/25/241449Z !MLI 08/047 MLI APRON TERMINAL APN N 400FT WIP CONST 2408251449-2411290200
8/25/241447Z !MLI 08/046 MLI APRON TERMINAL APN NW 270FT CLSD TO ACFT WINGSPAN MORE THAN 85FT 2408251447-2411290200
FDC
11/3/241906Z !FDC 4/8357 MLI IAP QUAD CITIES INTL, MOLINE, IL.
ILS OR LOC RWY 9, AMDT 31E...
RADAR REQUIRED FOR PROCEDURE ENTRY AT CVA VORTAC EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CVA TACAN OUT OF SERVICE. 2411031906-2412031906EST
10/25/241908Z !FDC 4/4517 MLI IAP QUAD CITIES INTL, MOLINE, IL.
RNAV (GPS) RWY 31, AMDT 1D...
LNAV MDA 1160/HAT 577 ALL CATS, VIS CAT C/D 1 5/8. CIRCLING CAT A MDA 1160/HAA 570.
2410251908-2610221908EST
Yes
ALL
METROPOLITAN AIRPORT AUTH
BOX 9009
MOLINE, IL 61265
Phone: 309-764-9621
BENJAMIN LEISCHNER
BOX 9009
MOLINE, IL 61265
Phone: 309-764-9621
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
MLI
--
WHEN ATCT CLSD ACTVT AND INCR INTS RWY & TWY LIGHTING, MALSR RWY 9 & RWY 27; REIL RWY 13 & RWY 31 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 05/23

3514 ft. x 150 ft.
CONC
Good
GRVD
MED
18 /R/B/W/T
60,000lbs
75,000lbs
120,000lbs
--
  Runway 05 Runway 23
True Heading 49°229°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 41° 26' 30"N 41° 26' 53"N
Longitude 90° 30' 57"W 90° 30' 22"W
Elevation 578' 583'
Threshold Crossing Height 46 ft. AGL 41 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09/27

10002 ft. x 150 ft.
CONC
Good
GRVD
HIGH
78 /R/B/W/T
100,000lbs
173,000lbs
353,000lbs
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 26' 57"N 41° 26' 55"N
Longitude 90° 31' 37"W 90° 29' 26"W
Elevation 578' 574'
Threshold Crossing Height 50 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

7301 ft. x 150 ft.
ASPH CONC
Good
PFC
HIGH
54 /R/B/W/T
60,000lbs
140,000lbs
200,000lbs
--
  Runway 13 Runway 31
True Heading 127°307°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 27' 18"N 41° 26' 34"N
Longitude 90° 30' 56"W 90° 29' 39"W
Elevation 585' 581'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2BIRDS & MIGRATORY FOWL ON & INVOF ARPT.
QUAD CITIES INTL (ICAO: KMLI, IATA: MLI) is a public airport located in MOLINE, IL.
