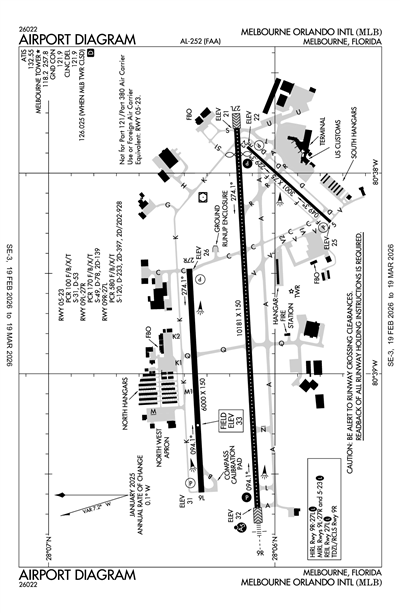

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMLB
MELBOURNE ORLANDO INTL
PublicPUB

2 miles NW of MELBOURNE, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 06' 10"N 80° 38' 43"W
33' MSL
1033' MSL
07W
JET A, 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
MIAMI (ZMA)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KMLB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.2

ATIS

ATIS
 132.55

ASOS

ASOS
321-951-7575
 132.55

Clearance Delivery

CD/P
 121.9

Ground

GND/P
 121.9

Tower

LCL/P
 118.2
LCL/S
 124.05

Other

VFR ADZY
 118.2

Terminal Area Forecast

No TAF is available for this location.
KMLB
Domestic
1/17/251330Z !MLB 01/016 MLB SVC TAR/SSR U/S 2501171330-2501171830
1/16/251300Z !MLB 01/020 MLB NAV ILS RWY 09R U/S 2501161300-2501162000
1/15/251400Z !MLB 01/015 MLB SVC TAR/SSR U/S 2501151400-2501151800
1/15/250500Z !MLB 01/017 MLB COM REMOTE COM OUTLET 121.5, 243.0 U/S 2501150500-2501151100
1/15/250326Z !MLB 01/021 MLB RWY 27L RWY END ID LGT U/S 2501150326-2601092000EST
1/14/250805Z !MLB 01/019 MLB OBST TOWER LGT (ASR 1029748) 280828.00N0804009.00W (2.6NM NNW MLB) 246.7FT (213.9FT AGL) U/S 2501140805-2501290500
1/9/251648Z !MLB 01/011 MLB OBST TOWER LGT (ASR 1030510) 280518.40N0803634.60W (2.1NM ESE MLB) 211.9FT (189.0FT AGL) U/S 2501091648-2501250500
1/7/250043Z !MLB 01/006 MLB OBST TOWER LGT (ASR 1213373) 280426.00N0804019.90W (2.3NM SW MLB) 222.8FT (196.9FT AGL) U/S 2501070043-2504080500
1/2/252240Z !MLB 01/003 MLB OBST TOWER LGT (ASR 1055973) 280352.00N0803724.00W (2.5NM SSE MLB) 169.3FT (157.5FT AGL) U/S 2501022240-2501162359
1/2/251044Z !MLB 01/002 MLB TWY E CL MARKINGS BTN APCH END RWY 23 AND TWY D NOT STD 2501021044-2501292359
1/2/251042Z !MLB 01/001 MLB TWY D CL MARKINGS BTN TWY A AND RWY 09R/27L NOT STD 2501021042-2501292359
12/30/241322Z !MLB 12/061 MLB TWY V BTN TWY A AND TWY V2 CLSD 2412301322-2501292359
12/30/241320Z !MLB 12/060 MLB AD AP WINDCONE FOR RWY 27R U/S 2412301320-2501292359
12/21/241300Z !MLB 12/051 MLB AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF MLB SFC-150FT AGL DLY 1300-0100 2412211300-2503090100
12/21/241200Z !MLB 12/052 MLB OBST CRANE (ASN 2023-ASO-15339-OE) 280510N0803917W (1.1NM SSW MLB) 280FT (250FT AGL) FLAGGED AND LGTD DLY 1200-2200 2412211200-2506012200
12/18/241523Z !MLB 12/043 MLB TWY K LGT BTN TWY G AND TWY S1 NOT STD 2412181523-2502052359
12/12/240757Z !MLB 12/024 MLB OBST TOWER LGT (ASR 1039786) 280857.00N0804213.00W (4.1NM NW MLB) 234.9FT (210.0FT AGL) U/S 2412120757-2501260745
10/26/241749Z !MLB 10/078 MLB OBST TOWER LGT (ASN 1991-ASO-00431-OE) 281335N0804527W (8.7NM NW MLB) 388FT (365FT AGL) U/S 2410261749-2502282359
7/22/241149Z !MLB 07/065 MLB TWY M BTN TWY K AND RWY 09L/27R CLSD 2407221149-PERM
2/8/241207Z !MLB 02/016 MLB AIRSPACE UAS WI AN AREA DEFINED AS 2.5NM RADIUS OF
281348.90N0804841.50W (9.4NM SW COI) SFC-400FT AGL THU FRI MON TUE
WED SR-SS 2402081207-2502052306
FDC
1/2/251558Z !FDC 5/0190 MLB IAP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
RNAV (GPS) RWY 9R, AMDT 1D...
LPV DA 287/HAT 255 ALL CATS. LNAV MDA 460/HAT 428 ALL CATS. VIS CATS C/D RVR 4000. CIRCLING CATS A/B MDA 640/HAA 607. VDP AT 1.08 NM TO RW09R. TEMPORARY CRANES 252 MSL 4884FT SE OF RWY 9R (2019-ASO-3519/20/22/23/24-NRA). TEMPORARY CRANE 158 MSL 4773FT NW OF RWY 9R (2020-ASO-16354-OE). TEMPORARY CRANES 283FT MSL BEGINNING 1468FT SOUTH OF RWY 23 (2022-ASO-1636,1637,1638-NRA). TEMPORARY CRANE 230 MSL 2726FT SW OF MLB AIRPORT (2023-ASO-10724-NRA).
2501021558-2503091558EST
1/2/251558Z !FDC 5/0189 MLB IAP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
ILS OR LOC RWY 9R, AMDT 12C...
S-ILS 9R DA 285/HAT 253 ALL CATS. S-LOC 9R MDA 540/HAT 508 ALL CATS. CIRCLING CATS A/B MDA 640/HAA 607. TEMPORARY CRANE 240 MSL 729FT N OF RWY 27R (2019-ASO-5038-NRA). TEMPORARY CRANES 252 MSL 4884FT SE OF RWY 9R (2019-ASO-3519/20/22/23/24-NRA). TEMPORARY CRANES 283FT MSL BEGINNING 1468FT SOUTH OF RWY 23 (2022-ASO-1636,1637,1638-NRA). TEMPORARY CRANE 230 MSL 2726FT SW OF MLB AIRPORT (2023-ASO-10724-NRA).
2501021558-2503091558EST
12/23/241700Z !FDC 4/9305 MLB IAP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
RNAV (GPS) RWY 27L, AMDT 1B...
LNAV/VNAV DA 494/HAT 468 ALL CATS. VISIBILITY 1 3/8 ALL CATS. LNAV MDA 600/HAT 574 ALL CATS. VISIBILITY CATS C/D 1 5/8. CIRCLING MDA CATS A/B MDA 640/HAA 607. TEMPORARY CRANES 283FT MSL BEGINNING 1468FT SOUTH OF RWY 23 (2022-ASO-1636,1637,1638-NRA). TEMPORARY CRANES, 252 MSL, 4884 FT SE OF RWY 09R (2019-ASO-3519/3520/3522/3523/3524-NRA), TEMPORARY CRANE, 211 MSL, 5005 FT SE OF APCH END RWY 27L (2021-ASO-25337-OE). TEMPORARY CRANES 220FT MSL BEGINNING 1.08 NM NORTH OF RWY 27R (2020-ASO-6654, 6655-OE). TEMPORARY CRANE 230 MSL 2726FT SW OF MLB AIRPORT (2023-ASO-10724-NRA). TEMPORARY CRANE 173 MSL 2123FT N OF RWY 27L (2023-ASO-522-NRA). TEMPORARY CRANE 172 MSL 2843FT S OF RWY 27L (2024-ASO-15623-NRA).
2412231700-2502151444EST
11/14/241805Z !FDC 4/4381 MLB ODP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF MINIMUMS: RWY 23, 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 307 FT PER NM TO 400 (2023-ASO-15339-OE). ADD TAKEOFF OBSTACLE NOTES: RWY 9L, TEMPORARY CRANE 2263FT FROM DER, 519FT LEFT OF CENTERLINE, 150FT AGL/ 173FT MSL (2023-ASO-522-NRA). TEMPORARY CRANE 209 MSL 1.1M SW OF RWY 5 (2023-ASO-15339-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2411141805-2506161805EST
11/14/241802Z !FDC 4/4376 MLB IAP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
LOC BC RWY 27L, AMDT 10B...
RNAV (GPS) RWY 9L, AMDT 1B...
VOR RWY 27L, ORIG...
CIRCLING CATS A/B MDA 640/HAA 607. TEMPORARY CRANES 283 MSL BEGINNING 1468FT S OF RWY 23 (2022-ASO-1636,1637,1638-NRA). TEMPORARY CRANE 209 MSL 1.1NM SW OF MLB AIRPORT (2023-ASO-15339-OE). TEMPORARY CRANE 230 MSL 2726FT SW OF MLB AIRPORT (2023-ASO-10724-NRA).
2411141802-2506161802EST
11/14/241802Z !FDC 4/4375 MLB IAP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
VOR RWY 9R, AMDT 21C...
S-9R MDA 620/HAT 588 ALL CATS, VIS CATS C/D RVR 6000. CIRCLING CATS A/B MDA 640/HAA 607. JEMDO FIX MINIMUMS: NA. TEMPORARY CRANES 252 MSL 4884FT SE OF RWY 9R (2019-ASO-3519 THRU 3524-NRA). TEMPORARY CRANES 283FT MSL BEGINNING 1468FT SOUTH OF RWY 23 (2022-ASO-1636,1637,1638-NRA). TEMPORARY CRANE 209 MSL 5897FT SE OF RWY 9R (2023-ASO-15339-OE). TEMPORARY CRANE 230 MSL 2726FT SW OF MLB AIRPORT (2023-ASO-10724-NRA).
2411141802-2506161802EST
11/4/241501Z !FDC 4/8517 MLB SID MELBOURNE ORLANDO INTL, MELBOURNE, FL.
MELBOURNE SEVEN DEPARTURE...
TAKEOFF RWY 09R: NA, EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MLB VOR/DME OUT OF SERVICE. 2411041501-2503191501EST
11/4/241501Z !FDC 4/8516 MLB IAP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
LOC BC RWY 27L, AMDT 10B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MLB VOR/DME OUT OF SERVICE. 2411041501-2503191501EST
11/4/241501Z !FDC 4/8515 MLB IAP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
ILS OR LOC RWY 9R, AMDT 12C...
MISSED APPROACH: CLIMB TO 2000 ON I-MLB LOCALIZER E COURSE (094) TO CAPEN INT/RADAR AND HOLD E, LT, 273.89 INBOUND.
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MLB VOR/DME OUT OF SERVICE. 2411041501-2503191501EST
1/15/240823Z !FDC 4/3648 MLB IAP MELBOURNE ORLANDO INTL, MELBOURNE, FL.
RNAV (GPS) RWY 27R, AMDT 1B...
LPV DA 442/HAT 410 ALL CATS, VIS ALL CATS 1 1/8. LNAV/VNAV DA 494/HAT 462 ALL CATS. LNAV MDA 600/HAT 568 ALL CATS, VIS CATS C/D 1 5/8. CIRCLING CATS A/B MDA 640/HAA 607. VDP 1.7 NM TO RW27R. TEMPORARY CRANES 283 MSL BEGINNING 1468FT S OF RWY 23 (2022-ASO-1636,1637,1638-NRA). TEMPORARY CRANE 240 MSL 729FT N OF RWY 27R (2019-ASO-5038-NRA). TEMPORARY CRANES 252 MSL 4884FT SE OF RWY 9R (2019-ASO-3519/20/22/23/24-NRA). TEMPORARY CRANE 143 MSL 1011FT N OF RWY 27R (2022-ASO-9100-NRA). TEMPORARY CRANE 230 MSL 2726FT SW OF MLB AIRPORT (2023-ASO-10724-NRA). TEMPORARY CRANE 173 MSL 2322FT E OF RWY 27R (2023-ASO-522-NRA).
2401150823-2502150823EST
Yes
ALL
CITY OF MELBOURNE
1 AIR TERMINAL PKWY/SUITE 220
MELBOURNE, FL 32901
Phone: 321-723-6227
GREG DONOVAN
1 AIRPORT TERMINAL PKWY, SUITE 220
MELBOURNE, FL 32901
Phone: 321-723-6227
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
MLB
--
WHEN ATCT CLSD ACTVT MALSR RWY 9R; REIL RWY 27L; PAPI RWY 9R & 27L; MIRL 5/23 & 9L/27R; HIRL RWY 9R/27L - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

3001 ft. x 75 ft.
ASPH
Excellent
NONE
MED

31,000lbs
53,000lbs
--
--
  Runway 05 Runway 23
True Heading 42°222°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 28° 05' 45"N 28° 06' 07"N
Longitude 80° 38' 15"W 80° 37' 52"W
Elevation 25' 22'
Threshold Crossing Height 21 ft. AGL 21 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09L/27R

6000 ft. x 150 ft.
ASPH
Excellent
GRVD
MED

49,000lbs
78,000lbs
139,000lbs
--
  Runway 09L Runway 27R
True Heading 87°267°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 06' 19"N 28° 06' 23"N
Longitude 80° 39' 35"W 80° 38' 29"W
Elevation 30' 26'
Threshold Crossing Height 39 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09R/27L

10181 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
233,000lbs
397,000lbs
928,000lbs
  Runway 09R Runway 27L
True Heading 87°267°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 06' 05"N 28° 06' 10"N
Longitude 80° 39' 40"W 80° 37' 47"W
Elevation 32' 21'
Threshold Crossing Height 83 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-2TGL NA AFT 2100 OR 2 HR AFT SS; WHICHEVER IS LATER.
A110-3RSTRD: MIL AIRCREW USE OF NORTHROP/GRUMMAN RAMP PPR - GRUMMAN OPS DSN 854-5245 EXTN 5522, C407-5522; PRIOR TO ARR - GRUMMAN OPS 123.2.
A110-4UNCONTROLLED AREA TWY V WEST OF RWY 5; TWY C NORTH OF TWY K; TWY S NORTH OF S1; TWY H & G.
A110-5SFC COND NOT RPRTD 2300-0600.
A110-6BIRD ACT ON & INVOF ARPT.
A110-7CAUTION: RWY 9L/27R HLDG PSN SIGN ON TWY Q NOT STD; SIGN IS LCTD FWD OF RWY HLDG PSN MARKING.
MELBOURNE ORLANDO INTL (ICAO: KMLB, IATA: MLB) is a public airport located in MELBOURNE, FL.
