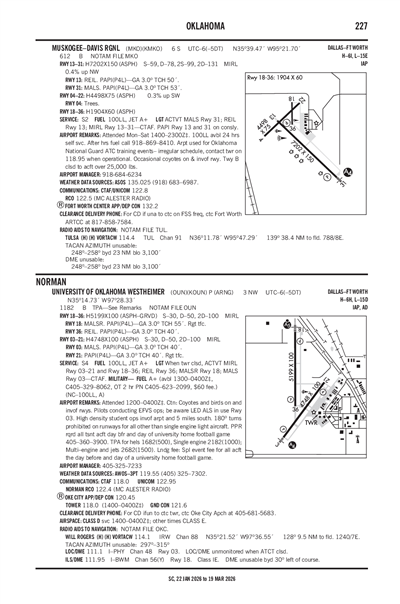

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMKO
MUSKOGEE-DAVIS RGNL
PublicPUB

6 miles S of MUSKOGEE, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 39' 28"N 95° 21' 42"W
612' MSL
1612' MSL
06E
JET A (FSII), 100LL
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
10/31/24-11/28/24
KMKO MVFR
5:53 AM CST
Overcast 3,000'
10sm
56°F
55°F
30.03"Hg
140° 3kts
AO2 SLP166 60012 70176 T01330128 10156 20133 56004
KMKO 091153Z AUTO 14003KT 10SM OVC030 13/13 A3003 RMK AO2 SLP166 60012 70176 T01330128 10156 20133 56004
Add Your Business

KMKO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
918-683-6987
 135.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRVS (38nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Few 25,000'
6sm
200° 7kts
VFR
10:00 AM CST - 6:00 PM CST
Few 25,000'
6sm
210° 8kts
Gusts 16kts
VFR
6:00 PM CST - 6:00 AM CST
Sky Clear
6sm
240° 4kts
KRVS 091120Z 0912/1012 20007KT P6SM FEW250
   FM091600 21008G16KT P6SM FEW250
   FM100000 24004KT P6SM SKC
KMKO
Domestic
11/4/240525Z !MKO 11/005 MKO OBST TOWER LGT (ASR 1056792) 354323.00N0951821.00W (4.8NM NE MKO) 815.0FT (305.1FT AGL) U/S 2411040525-2502020500
11/4/240522Z !MKO 11/004 MKO OBST TOWER LGT (ASR 1054293) 352927.80N0951313.90W (12.1NM SE MKO) 1191.9FT (500.0FT AGL) U/S 2411040522-2411190422
11/1/241236Z !MKO 11/001 MKO OBST TOWER LGT (ASN 2017-ASW-6292-OE) 353528N0951605W (6.1NM SE MKO) 918FT (330FT AGL) U/S 2411011236-2412161236
10/23/241712Z !MKO 10/011 MKO OBST TOWER LGT (ASR 1268138) 354523.60N0952219.30W (5.9NM N MKO) 906.5FT (270.0FT AGL) U/S 2410231712-2501232359
10/22/240030Z !MKO 10/010 MKO OBST TOWER LGT (ASR 1253858) 353439.20N0951236.70W (8.8NM ESE MKO) 900.3FT (223.1FT AGL) U/S 2410220030-2503212359
4/12/241436Z !MKO 04/010 MKO OBST TOWER LGT (ASN 2014-ASW-2170-OE) 353253N0951004W (11.5NM SE MKO) 730FT (159FT AGL) U/S 2404121436-2412311200
4/1/241355Z !MKO 04/007 MKO OBST TOWER LGT (ASN 2013-ASW-8143-OE) 354431N0951648W (6.4NM NE MKO) 800FT (302FT AGL) U/S 2404011355-2412311200
4/1/241355Z !MKO 04/006 MKO OBST TOWER LGT (ASN 2013-ASW-8144-OE) 354414N0951702W (6.1NM NE MKO) 824FT (297FT AGL) U/S 2404011355-2412311200
4/1/241354Z !MKO 04/005 MKO OBST TOWER LGT (ASN 2013-ASW-8145-OE) 354432N0951651W (6.4NM NE MKO) 798FT (304FT AGL) U/S 2404011354-2412311200
4/1/241353Z !MKO 04/004 MKO OBST TOWER LGT (ASN 2013-ASW-8146-OE) 354415N0951704W (6.1NM NE MKO) 824FT (297FT AGL) U/S 2404011353-2412311200
4/1/241350Z !MKO 04/003 MKO OBST TOWER LGT (ASN 2013-ASW-8150-OE) 354808N0951846W (9.0NM NNE MKO) 731FT (215FT AGL) U/S 2404011350-2412311200
4/1/241350Z !MKO 04/002 MKO OBST TOWER LGT (ASN 2013-ASW-8148-OE) 354755N0951659W (9.3NM NNE MKO) 763FT (250FT AGL) U/S 2404011350-2412311200
4/1/241349Z !MKO 04/001 MKO OBST TOWER LGT (ASN 2013-ASW-8149-OE) 354808N0951831W (9.0NM NNE MKO) 746FT (215FT AGL) U/S 2404011349-2412311200
FDC
8/15/231532Z !FDC 3/4673 MKO PART 1 OF 2 ODP MUSKOGEE-DAVIS RGNL, MUSKOGEE, OK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
TAKEOFF OBSTACLE NOTES: RWY 22: TREES BEGINNING 6 FT FROM DER, 325
FT RIGHT OF CENTERLINE, UP TO 26 FT AGL/632 FT MSL.
TREE 634 FT FROM DER, 361 FT LEFT OF CENTERLINE, 627 FT MSL.
POLE, TREE BEGINNING 713 FT FROM DER, 147 FT LEFT OF CENTERLINE, UP
TO 32 FT AGL/635 FT MSL.
POLE 929 FT FROM DER, 683 FT RIGHT OF CENTERLINE, 49 FT AGL/641 FT
MSL.
TREE 2814 FT FROM DER, 575 FT RIGHT OF CENTERLINE, 682 FT MSL.
TREE 2860 FT FROM DER, 965 FT RIGHT OF CENTERLINE, 700 FT MSL.
TREE 2873 FT FROM DER, 863 FT RIGHT OF CENTERLINE, 34 FT AGL/708 FT
MSL.
TREES BEGINNING 2921 FT FROM DER, 777 FT RIGHT OF CENTERLINE, UP TO
35 FT AGL/710 FT MSL.
TREES, TERRAINS BEGINNING 2946 FT FROM DER, 51 FT RIGHT OF
CENTERLINE, UP TO 33 FT AGL/715 FT MSL.
TREES BEGINNING 3064 FT FROM DER, 62 FT LEFT OF CENTERLINE, UP TO
693 FT MSL.
TREES BEGINNING 3108 FT FROM DER, 70 FT LEFT OF CENTERLINE, UP TO
698 FT MSL.
AGL/609 FT MSL. 2308151532-2508151532EST
END PART 1 OF 2
!FDC 3/4673 MKO PART 2 OF 2 ODP MUSKOGEE-DAVIS RGNL, MUSKOGEE, OK.
TREE 3311 FT FROM DER, 334 FT LEFT OF CENTERLINE, 699 FT MSL.
TREE 3416 FT FROM DER, 106 FT LEFT OF CENTERLINE, 700 FT MSL.
TREE 3527 FT FROM DER, 253 FT LEFT OF CENTERLINE, 702 FT MSL.
TREE 3711 FT FROM DER, 153 FT LEFT OF CENTERLINE, 705 FT MSL.
RWY 31: SIGN 22 FT FROM DER, 259 FT LEFT OF CENTERLINE, 4 FT
AGL/609 FT MSL. 2308151532-2508151532EST
END PART 2 OF 2
No
MON-SAT 0800-1700
CITY OF MUSKOGEE
MUNICIPAL BLDG, P.O. BOX 1927
MUSKOGEE, OK 74402
Phone: (918) 684-6201
DREW SAFFELL
1201 SABRE ST
MUSKOGEE, OK 74403
Phone: (918) 684-6343
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MKO
--
ACTVT MALS RWY 31; REIL RWY 13; MIRL RWY 13/31 - CTAF. PAPI RWY 13 & 31 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

4498 ft. x 75 ft.
ASPH
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 39' 26"N 35° 39' 57"N
Longitude 95° 22' 17"W 95° 21' 39"W
Elevation 611' 596'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

7202 ft. x 150 ft.
ASPH
Good
NONE
MED

59,000lbs
78,000lbs
131,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 39' 39"N 35° 38' 49"N
Longitude 95° 22' 02"W 95° 21' 00"W
Elevation 607' 581'
Threshold Crossing Height 50 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

1904 ft. x 60 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 35° 39' 58"N 35° 39' 39"N
Longitude 95° 21' 45"W 95° 21' 45"W
Elevation 597' 596'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TWY B CLSD TO ACFT OVER 25,000 LBS.
A110-3OCNL COYOTES ON & INVOF RWY.
A110-5AIRPORT USED FOR OKLAHOMA NATIONAL GUARD ATC TRAINING EVENTS - IRREGULAR SCHEDULE. CONTACT ATCT ON 118.95 WHEN OPERATIONAL.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
MUSKOGEE-DAVIS RGNL (ICAO: KMKO, IATA: MKO) is a public airport located in MUSKOGEE, OK.
