iFlightPlanner



...

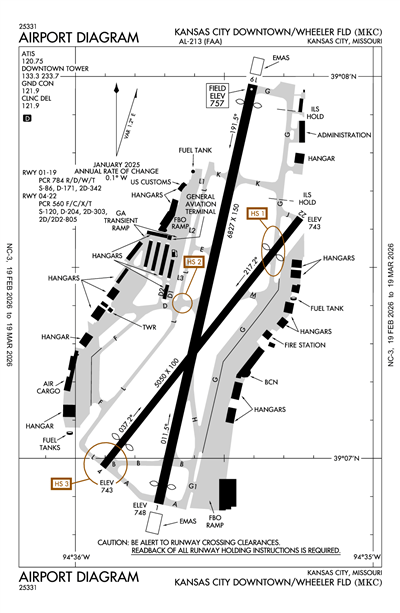

KANSAS CITY DOWNTOWN/WHEELER FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMKC
ICAO KMKCIATA MKCLocal MKC
KANSAS CITY DOWNTOWN/WHEELER FLD
PublicPUB

0 miles NW of KANSAS CITY, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 07' 23"N 94° 35' 34"W
Elevation
757' MSL
Pattern Alt
1757' MSL
Mag Variation
1°E
Declination
1°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KMKC IFR
10:54 PM CST
Overcast 500'
9sm
44°F
42°F
30.09"Hg
050° 8kts
AO2 RAB09E23 SLP193 P0000 T00670056
METAR KMKC 040454Z 05008KT 9SM OVC005 07/06 A3009 RMK AO2 RAB09E23 SLP193 P0000 T00670056
+ Add Your Business

KMKC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.75
(816) 329-2850
ASOS 120.75
(816) 329-2843

Common

UNICOM 122.95

Clearance

DOWNTOWN CLEARANCE DELIVERY 121.9

Ground

DOWNTOWN GROUND 121.9

Tower

DOWNTOWN TOWER 133.3

Arrival

BRAYMER STAR 120.95
JHAWK STAR 120.95
TYGER STAR 120.95

Approach

KANSAS CITY APPROACH 118.4

Departure

KANSAS CITY DEPARTURE 118.4

Terminal Area Forecast

KMKC
Tue, 3/3 5:32 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
IFR
6:00 PM CST - 12:00 AM CST
Light Drizzle and Mist
Overcast 500'
4sm
040° 7kts
VFR
7:00 PM CST - 12:00 AM CST
Light Showers and Rain
No Clouds
N/A
Calm
LIFR
12:00 AM CST - 10:00 AM CST
Light Drizzle and Mist
Overcast 400'
3sm
040° 8kts
IFR
10:00 AM CST - 4:00 PM CST
Mist
Overcast 700'
6sm
VRB° 4kts
MVFR
4:00 PM CST - 6:00 PM CST
Mist
Overcast 1,500'
6sm
VRB° 4kts
TAF KMKC 032332Z 0400/0424 04007KT 4SM -DZ BR OVC005
   PROB30 0401/0406 -SHRA
   FM040600 04008KT 3SM -DZ BR OVC004
   FM041600 VRB04KT 6SM BR OVC007
   FM042200 VRB04KT 6SM BR OVC015
KMKC
EffectiveExpiresCategoryNOTAM
Domestic
2/6/26
2152Z
3/23/26
2151Z
!MKC 02/046 MKC OBST TOWER LGT (ASR 1003925) 390723.00N0942325.00W (9.4NM E MKC) 1553.8FT (562.0FT AGL) U/S 2602062152-2603232151
1/26/26
2041Z
3/12/26
2034Z
!MKC 01/107 MKC OBST TOWER LGT (ASR 1211744) 390525.80N0942819.20W (6.0NM ESE MKC) 2048.9FT (1168.0FT AGL) U/S 2601262041-2603122034
1/13/26
1539Z
5/31/26
2300Z
!MKC 01/019 MKC OBST ANTENNA (ASN UNKNOWN) 390747N0943532W (0.41NM NNW MKC)
UNKNOWN (7FT AGL) NOT LGTD 2601131539-2605312300
1/6/26
1955Z
4/6/26
0500Z
!MKC 01/006 MKC OBST TOWER LGT (ASR 1002953) 390336.00N0944511.00W (8.4NM WSW MKC) 1023.6FT (259.8FT AGL) U/S 2601061955-2604060500
11/4/25
0206Z
2/28/26
2300Z
!MKC 11/007 MKC APRON HANGAR 6A RAMP N 360FT CLSD 2511040206-2602282300
11/4/25
0205Z
2/28/26
2300Z
!MKC 11/006 MKC OBST BLDG (ASN UNKNOWN) 390713N0943600W (0.38NM WSW MKC)
UNKNOWN (20FT AGL) NOT LGTD 2511040205-2602282300
11/4/25
0159Z
2/28/26
2300Z
!MKC 11/004 MKC TWY D1, L3 CLSD 2511040159-2602282300
FDC
2/25/26
1400Z
3/4/26
1613Z
!FDC 6/9239 MKC SID CHARLES B WHEELER DOWNTOWN, KANSAS CITY, MO.
LAKES FIVE DEPARTURE...
SPINNER TRANSITION,TWAIN TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SPI VORTAC OUT OF SERVICE. 2602251400-2603041613EST
9/29/25
1622Z
!FDC 5/2002 MKC IAP CHARLES B WHEELER DOWNTOWN, KANSAS CITY, MO.
RNAV (GPS) Z RWY 19, AMDT 2...
LPV DA* 1029/HAT 275, VIS ALL CATS RVR 5000.
2509291622-2709301622EST
8/3/25
1028Z
!FDC 5/9980 MKC ODP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
ADD TAKEOFF OBSTACLE NOTES: RWY 22, TEMPORARY CRANES BEGINNING 2702FT FROM DER, 42FT RIGHT OF CENTERLINE, UP TO 94FT AGL/844FT MSL (2025-ACE-1073/1074-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2508031028-2603150500EST
7/12/25
1800Z
!FDC 5/5225 MKC IAP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
ILS OR LOC RWY 4, AMDT 6B...
S-ILS 4 CATS A/B/C DA 1051/HAT 307, VISIBILITY CATS A/B/C RVR 4500. CIRCLING CAT D MDA 1600/HAA 843. TEMPORARY CRANES 844 MSL 2701FT AND 2739FT SW OF RWY 4 (2025-ACE-1073/1074-OE). TEMPORARY CRANE 1240 MSL 3.9NM S OF KMKC (2025-ACE-2006-OE).
2507121800-2612311800EST
7/12/25
1800Z
!FDC 5/5224 MKC IAP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
RNAV (GPS) RWY 4, AMDT 3D...
LPV CATS A/B/C DA 1053/HAT 309, VISIBILITY CATS A/B/C RVR 4500. LNAV CAT A/B/C MDA 1400/HAT 656, VIS CAT C 1 1/2. CIRCLING CAT A MDA 1400/HAA 643. CIRCLING CAT D MDA 1600/HAA 843. VDP NA. TEMPORARY CRANES 844 MSL 2701FT AND 2739FT SW OF RWY 4 (2025-ACE-1073/1074-OE). TEMPORARY CRANE 1086 MSL 3558FT SE OF RWY 4 (2024-ACE-4452-OE). TEMPORARY CRANE 1240 MSL 3.9NM S OF KMKC (2025-ACE-2006-OE).
2507121800-2612311800EST
7/12/25
1800Z
!FDC 5/5223 MKC IAP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
ILS OR LOC RWY 19, AMDT 24A...
RNAV (GPS) RWY 22, AMDT 2A...
RNAV (GPS) Y RWY 19, ORIG...
CIRCLING CAT D MDA 1600/HAA 843. TEMPORARY CRANE 1240 MSL 3.9NM S OF KMKC (2025-ACE-2006-OE).
2507121800-2612311800EST
7/12/25
1800Z
!FDC 5/5222 MKC IAP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
RNAV (GPS) Z RWY 19, AMDT 2...
LNAV/VNAV DA# 1139/HAT 385 ALL CATS, VIS ALL CATS RVR 5000. CIRCLING CAT D MDA 1600/HAA 843. TEMPORARY CRANE 1495 MSL 1.1NM SE OF RWY 19 DER (2024-ACE-4628-OE), TEMPORARY CRANE 1240 MSL 3.9NM S OF KMKC (2025-ACE-2006-OE).
2507121800-2612311800EST
6/11/25
1900Z
3/19/26
0400Z
!FDC 5/2443 MKC SPECIAL IAP KANSAS CITY DOWNTOWN/WHEELER FLD
KANSAS CITY, MO
RNAV (GPS) M RWY 01 ORIG
LPV DA 1230/483 HAT ALL CATS. VISIBILITY ALL CATS 1 SM.
TEMPORARY CRANE 924 MSL (200 FT AGL) 0.7NM S MKC
(ASN 2024-ACE-4453-OE)

2506111900-2603190400
5/9/25
1245Z
!FDC 5/8281 MKC ODP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
TAKE-OFF MINIMUMS RWY 01 300-2 1/4 OR STANDARD WITH A MINIMUM CLIMB OF 208 FT PER NM TO 1100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2505091245-2705091244EST
3/29/24
2000Z
3/19/26
0900Z
!FDC 4/4228 MKC STAR CHARLES B WHEELER, KANSAS CITY, MO BRAYMER
EIGHT ARRIVAL..PROCEDURE AMEND SPINNER TRANSITION, MOCA 2700 SPI
VORTAC TO BQS VOR/DME. ALL OTHER DATA REMAINS AS PUBLISHED.

2403292000-2603190900
Yes
ALL
CITY OF KANSAS CITY
414 E. 12TH ST
KANSAS CITY, MO 64106
Phone: 816-859-7601
ROD DEWINKLER
900 NW RICHARDS ROAD
KANSAS CITY, MO 64116
Phone: 816-859-7610
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
MKC
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 01/19

6827 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

86,000lbs
171,000lbs
342,000lbs
--
  Runway 01 Runway 19
True Heading 13°193°
Traffic Pattern Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 39° 06' 53"N 39° 07' 59"N
Longitude 94° 35' 43"W 94° 35' 24"W
Elevation 748' 757'
Threshold Crossing Height 66 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.7° 3°
Visual Slope Indicator V4L P4L
Approach Lights RLLS MALSF
Centerline Lights
Runway End Identifier Lights Yes No

Runway 04/22

5050 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
204,000lbs
303,000lbs
805,000lbs
  Runway 04 Runway 22
True Heading 38°218°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 39° 06' 59"N 39° 07' 38"N
Longitude 94° 35' 55"W 94° 35' 15"W
Elevation 743' 743'
Threshold Crossing Height 50 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3.3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10FLOCKS OF PIGEONS INVOF DEP EOR 04.
A110-12RWY 04/22 VFR E TFC PAT: DEPARTING RWY 04 RIGHT TFC ATTAIN TFC PAT ALT PRIOR TO TURNING CROSSWIND. LDG RWY 22 MNTN TFC PAT ALT UNTIL PASSING N OF MISSOURI RIVER.
A110-14ATCT HAS LIMITED VISIBILITY OF T-HANGAR APRONS N TWY D AND W TWY L .
A110-15FAA SAFETY VIDEO CAN BE ACCESSED AT HTTPS://WWW.FAA.GOV/AIRPORTS/RUNWAY_SAFETY/VIDEOS/MKC/
A110-16CTN: MULT OBSTRUCTIONS 0.5 MI-1.0 MI ESE FM RWY 19 DER UP TO 290 FT AGL/1100 FT MSL.
A110-17DUE TO OBSTNS, PRIOR TO ANY TURNS TO THE E, ACFT MUST BE AT OR ABV TFC PTN ALT
A110-6WILDLIFE ON & INVOF ARPT.
A26ARPT CLSD TO ACR OPNS WITH MORE THAN 30 PSGR SEATS EXCP 24 HR PPR CALL AMGR (816) 289-2718. AIR CARRIER OPS NOT AUTHORIZED IN EXCESS OF 15 MINUTES BFR OR AFT SKED ARR OR DEP TIMES W/O PRIOR COORDINATION WITH AMGR CONFIRMING ARFF AVBL PRIOR TO LNDG OR TKOF.
A39-01/19PCR VALUE: 784/R/D/W/T
A39-04/22PCR VALUE: 560/F/C/X/T
A43-22UNUSBL BYD 8 DEGS LEFT OF CRS.
A49-19RY19 MALSF AUGMENTED WITH RAIL.
A57-04APCH RATIO AT DSPLCD THR 47:1.
A57-22APCH RATIO AT DSPLCD THR 24:1.
A58-19ROAD & FENCE 0-200' FM THR.
A58-22ROAD & RR 0-200' FM THR.
A70-100LL100LL SELF SVC AVBL 24 HRS WITH CREDIT CARD ONLY ON WEST SIDE NEAR GA TERMINAL.
E60-01_EMASENGINEERED MATERIALS ARRESTING SYSYTEM (EMAS) 263 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 01.
E60-19_EMASENGINEERED MATERIALS ARRESTING SYSYTEM (EMAS) 287 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 19.
KANSAS CITY DOWNTOWN/WHEELER FLD (ICAO: KMKC, IATA: MKC) is a public airport located in KANSAS CITY, MO, US.
