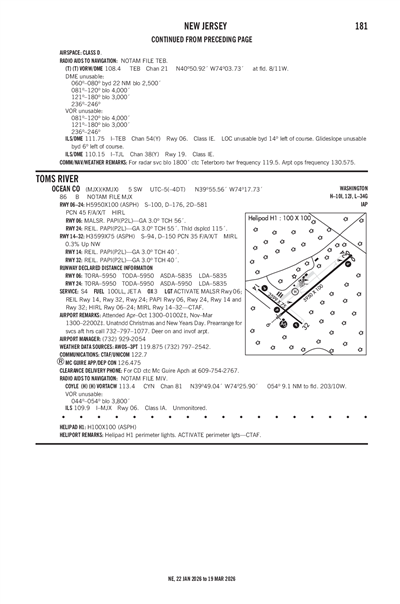

OCEAN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMJX
ICAO KMJXIATA MJXLocal MJX
OCEAN COUNTY
PublicPUB

5 miles SW of TOMS RIVER, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 55' 34"N 74° 17' 44"W
Elevation
86' MSL
Pattern Alt
1086' MSL
Mag Variation
12°W
Declination
13°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
WASHINGTON
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KMJX IFR
3:56 AM EST
Overcast 500'
10sm
40°F
40°F
30.23"Hg
270° 6kts
AO2 RAE10 SLP243 P0001 60003 T00440044 53002 $
METAR KMJX 040856Z AUTO 27006KT 10SM OVC005 04/04 A3023 RMK AO2 RAE10 SLP243 P0001 60003 T00440044 53002 $
+ Add Your Business

KMJX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.875
(732) 797-2542

Common

CTAF 122.7
ACTVT MALSR RWY 06; REIL RWY 14, 32 & 24; PAPI RWY 06, 24, 14 & 32; HIRL RWY 06/24; MIRL RWY 14/32 - CTAF.
UNICOM 122.7

Arrival

WAALK STAR 124.6

Approach

MC GUIRE APPROACH 126.475

Departure

MC GUIRE DEPARTURE 126.475

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KWRI (15nm)
Wed, 3/4 2:40 AM EST
Wed, 3/4 2:00 AM EST - Thu, 3/5 3:00 AM EST
LIFR
2:00 AM EST - 9:00 AM EST
Mist
Overcast 300'
4.97sm
30.21"Hg
VRB° 6kts
LIFR
Temporary 3:00 AM EST - 9:00 AM EST
Mist
Overcast 200'
1.99sm
Calm
MVFR
Becoming 9:00 AM EST - 3:00 PM EST
Mist
Broken 1,000'
Scattered 700'
3.73sm
30.21"Hg
VRB° 6kts
MVFR
Becoming 3:00 PM EST - 3:00 AM EST
Light Rain
Broken 1,500'
Scattered 700'
4.97sm
30.24"Hg
VRB° 6kts
TAF AMD KWRI 040740Z 0407/0508 VRB06KT 8000 BR OVC003 QNH3020INS
   TEMPO 0408/0414 3200 BR OVC002
   BECMG 0414/0415 VRB06KT 6000 BR SCT007 BKN010 QNH3022INS
   BECMG 0420/0421 VRB06KT 8000 -RA SCT007 BKN015 QNH3025INS TX11/0418Z TN05/0402Z
KMJX
EffectiveExpiresCategoryNOTAM
Domestic
1/24/26
1009Z
4/24/26
2359Z
!MJX 01/013 MJX OBST TOWER LGT (ASN 2022-AEA-4576-OE) 395726N0742243W (4.2NM WNW MJX) 356FT (176FT AGL) U/S 2601241009-2604242359
1/13/26
1439Z
3/13/26
2359Z
!MJX 01/007 MJX OBST STACK (ASN UNKNOWN) 394851N0741218W (8.6NM SE MJX) 391FT (368FT AGL) NOT LGTD 2601131439-2603132359
12/29/25
2359Z
6/30/26
2350Z
!MJX 12/021 MJX NAV ILS RWY 06 OM U/S 2512292359-2606302350
No
NOV - MAR 0800-1700
APR - OCT 0800-2000
UNATNDD CHRISTMAS & NEW YEARS DAY. PREARRANGE FOR SVCS AFT HRS CALL 732-797-1077.
COUNTY OF OCEAN
101 HOOPER AVENUE PO BOX 2191
TOMS RIVER, NJ 08754
Phone: 732-929-2054
ANTHONY AGLIATA
129 HOOPER AVENUE PO BOX 2191
TOMS RIVER, NJ 08754
Phone: (732) 929-2054
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MJX
--
ACTVT MALSR RWY 06; REIL RWY 14, 32 & 24; PAPI RWY 06, 24, 14 & 32; HIRL RWY 06/24; MIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Ambulance
Avionics
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

5950 ft. x 100 ft.
ASPH
Good
NONE
HIGH
45/F/A/X/T
100,000lbs
176,000lbs
581,000lbs
--
  Runway 06 Runway 24
True Heading 50°230°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 39° 55' 20"N 39° 55' 58"N
Longitude 74° 18' 02"W 74° 17' 03"W
Elevation 76' 76'
Threshold Crossing Height 56 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

3599 ft. x 75 ft.
ASPH
Good
NONE
MED
35/F/A/X/T
94,000lbs
150,000lbs
--
--
  Runway 14 Runway 32
True Heading 128°308°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 39° 55' 36"N 39° 55' 14"N
Longitude 74° 18' 21"W 74° 17' 45"W
Elevation 86' 76'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

100 ft. x 100 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 39° 55' 35"N N/A
Longitude 74° 17' 50"W N/A
Elevation 83' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-2FOR CD CTC MC GUIRE APCH AT 609-754-2767.
A17-M1UNATNDD CHRISTMAS & NEW YEARS DAY. PREARRANGE FOR SVCS AFT HRS CALL 732-797-1077.
A30-H1FATO 100X100 FT
A81-APTACTVT MALSR RWY 06; REIL RWY 14, 32 & 24; PAPI RWY 06, 24, 14 & 32; HIRL RWY 06/24; MIRL RWY 14/32 - CTAF.
OCEAN COUNTY (ICAO: KMJX, IATA: MJX) is a public airport located in TOMS RIVER, NJ, US.
