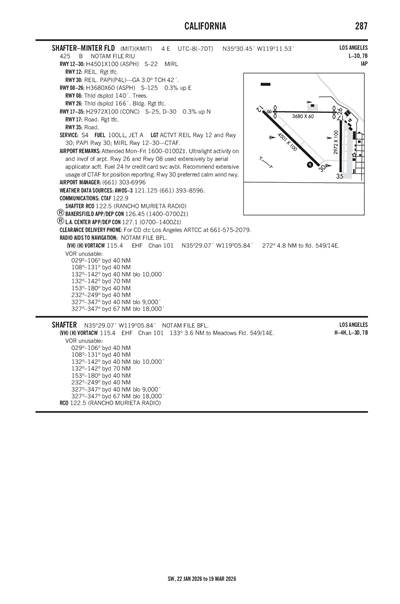

SHAFTER-MINTER FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMIT
ICAO KMITIATA MITLocal MIT
SHAFTER-MINTER FLD
PublicPUB

4 miles E of SHAFTER, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 30' 27"N 119° 11' 32"W
Elevation
425' MSL
Pattern Alt
1425' MSL
Mag Variation
12°E
Declination
13°E
Fuel
JET A, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KBFL (8nm) VFR
12:54 AM PST
Broken 4,200'
10sm
57°F
49°F
30.09"Hg
080° 4kts
AO2 SLP185 T01390094 53002
METAR KBFL 040854Z 08004KT 10SM BKN042 14/09 A3009 RMK AO2 SLP185 T01390094 53002
+ Add Your Business

KMIT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 121.125
(661) 393-8596

Common

CTAF 122.9
ACTVT REIL RWY 12 & 30; PAPI RWY 30; MIRL RWY 12/30 - CTAF.; RYS 26 AND 08 USED EXTENSIVELY BY AERIAL APPLICATOR ACFT. RECOMMEND EXTENSIVE USAGE OF CTAF FOR POSITION REPORTING.

Approach

BAKERSFIELD APPROACH 126.45

Departure

BAKERSFIELD DEPARTURE 126.45

Center

BAKERSFIELD CENTER 127.1
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQS 127.1/317.7 (BAKERSFIELD RCAG) WHEN BAKERSFIELD APCH CTL (BFL) CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBFL (8nm)
Tue, 3/3 9:20 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 1:00 PM PST
Few 25,000'
6sm
310° 3kts
VFR
1:00 PM PST - 10:00 PM PST
Broken 25,000'
6sm
320° 8kts
TAF KBFL 040520Z 0406/0506 31003KT P6SM FEW250
   FM042100 32008KT P6SM BKN250
KMIT
EffectiveExpiresCategoryNOTAM
Domestic
2/5/26
1019Z
3/10/26
2359Z
!RIU 02/040 MIT OBST TOWER LGT (ASR 1317980) 353145.00N1191127.90W (1.3NM N MIT) 587FT (143FT AGL) U/S 2602051019-2603102359
2/5/26
1006Z
3/22/26
1006Z
!RIU 02/039 MIT OBST TOWER LGT (ASN 2020-AWP-1935-OE) 353145N1191128W (1.3NM NE MIT) 587FT (143FT AGL) U/S 2602051006-2603221006
No
MON-FRI 0800-1700
MINTER FIELD AIRPORT DISTRICT
201 AVIATION ST
SHAFTER, CA 93263
Phone: 661-393-0402
JONATHAN HUDSON
201 AVIATION ST
SHAFTER, CA 93263
Phone: (661) 303-6996
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
ACTVT REIL RWY 12 & 30; PAPI RWY 30; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Pilot Instruction

Runway 08/26

3680 ft. x 60 ft.
ASPH
Good
NONE


125,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 30' 38"N 35° 30' 38"N
Longitude 119° 11' 57"W 119° 11' 12"W
Elevation 414' 425'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights

Runway 12/30

4501 ft. x 100 ft.
ASPH
Good
NONE
MED

22,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 133°313°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 30' 38"N 35° 30' 08"N
Longitude 119° 12' 04"W 119° 11' 24"W
Elevation 412' 412'
Threshold Crossing Height -- 42 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17/35

2972 ft. x 100 ft.
CONC
Good
NONE


25,000lbs
30,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 30' 34"N 35° 30' 04"N
Longitude 119° 11' 09"W 119° 11' 10"W
Elevation 423' 414'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2FUEL 24 HR CREDIT CARD SVC AVBL.
A110-3ULTRALIGHT ACTIVITY ON & INVOF ARPT.
A110-4RY 30 PREFERRED CALM WIND RY.
A110-5RYS 26 AND 08 USED EXTENSIVELY BY AERIAL APPLICATOR ACFT. RECOMMEND EXTENSIVE USAGE OF CTAF FOR POSITION REPORTING.
A110-6FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A13AFTER HOURS 661-303-6996
A57-0833:1 TO DSPLCD THLD.
A57-2628:1 TO THE DSPLCD THLD.
A81-APTACTVT REIL RWY 12 & 30; PAPI RWY 30; MIRL RWY 12/30 - CTAF.
SHAFTER-MINTER FLD (ICAO: KMIT, IATA: MIT) is a public airport located in SHAFTER, CA, US.
