KMIE
DELAWARE COUNTY RGNL
PublicPUB

3 miles NW of MUNCIE, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 14' 33"N 85° 23' 45"W
937' MSL
1937' MSL
03W
JET A, 100LL
TERRE HAUTE (HUF)
CHICAGO
INDIANAPOLIS (ZID)
7/11/24-8/8/24
KMIE VFR
6:53 AM EDT
Clear
10sm
60°F
56°F
29.97"Hg
Calm
AO2 SLP137 T01560133
KMIE 191053Z 00000KT 10SM CLR 16/13 A2997 RMK AO2 SLP137 T01560133
Add Your Business

KMIE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.1

ATIS

ATIS
 133.25

ASOS

ASOS
765-288-9617
 114.4

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.1

FAA A/FD Pages

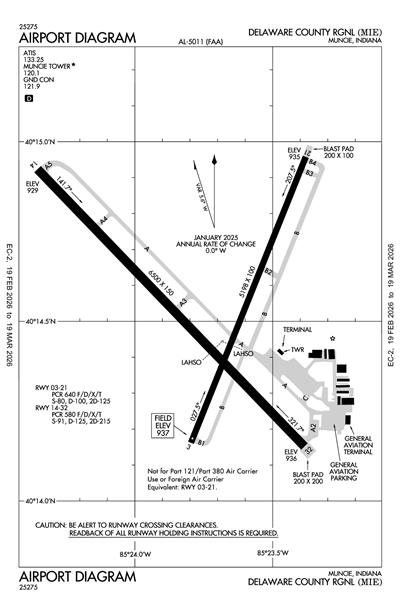

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGUS (43nm)
Wed, 9/18 5:00 PM EDT
Wed, 9/18 5:00 PM EDT - Thu, 9/19 11:00 PM EDT
VFR
5:00 PM EDT - 11:00 PM EDT
Few 25,000'
6sm
29.88"Hg
VRB° 6kts
TAF KGUS 182100Z 1821/2003 VRB06KT 9999 FEW250 QNH2989INS TX31/1921Z TN14/1911Z LAST NO AMDS AFT 1903 NEXT 1913
KMIE
Domestic
9/4/240514Z !MIE 09/001 MIE OBST TOWER LGT (ASR 1030894) 402516.00N0852540.00W (10.8NM N MIE) 1347.8FT (439.0FT AGL) U/S 2409040514-2412042359
8/6/241552Z !MIE 08/003 MIE OBST TOWER LGT (ASR 1027906) 402706.00N0852130.00W (12.7NM NE MIE) 1132.9FT (232.9FT AGL) U/S 2408061552-2411302359
6/23/241025Z !MIE 06/026 MIE OBST TOWER LGT (ASR 1028779) 402704.10N0852133.80W (12.7NM NE MIE) 1203.1FT (293.0FT AGL) U/S 2406231025-2410302359
FDC
4/13/231804Z !FDC 3/1566 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
VOR RWY 21, AMDT 14A...
DUNKI FIX MINIMUMS (DUAL VOR RECEIVERS OR DME REQUIRED) CIRCLING CAT C MDA 1500/HAA 563.
2304131804-2504301800EST
4/13/231804Z !FDC 3/1565 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
VOR RWY 14, AMDT 17B...
CIRCLING CAT C MDA 1500/HAA 563. BOHUW FIX MINIMUMS CIRCLING CAT C MDA 1500/HAA 563.
2304131804-2504301800EST
4/13/231804Z !FDC 3/1564 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
RNAV (GPS) RWY 14, ORIG-C...
RNAV (GPS) RWY 32, ORIG-B...
CIRCLING CAT C MDA 1500/HAA 563.
2304131804-2504301800EST
3/1/231416Z !FDC 3/1422 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
ILS OR LOC RWY 32, AMDT 9E...
FORT WAYNE ALTIMETER SETTING MINIMUMS:
S-ILS 32 DA 1258/HAT 321 ALL CATS, VISIBILITY ALL CATS 5/8 SM.
CIRCLING CAT A/B MDA 1600/HAA 663, VISIBILITY 1 SM, CAT C MDA 1640/HAA 703, VISIBILITY 2, CAT D MDA 1740/HAA 803, VISIBILITY 2 1/2 SM.
CHANGE CHART NOTE TO READ: FOR INOPERATIVE MALSR WHEN USING FORT WAYNE ALTIMETER SETTING MINIMUMS, INCREASE S-ILS 32 VISIBILITY ALL CATS TO 1 SM AND INCREASE S-LOC 32 CAT C TO 1 3/4 SM.
CHANGE CHART NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE FORT WAYNE ALTIMETER SETTING AND INCREASE ALL DA 121 FEET AND ALL MDAS 140 FEET.
ADD CHART NOTE: FOR ALS INOP, INCREASE S-LOC 32 VISIBILITY CATS A/B TO 1 SM, CAT C VISIBILITY TO 1 3/8 SM.
2303011416-2503011416EST
Yes
0600-2200
DELAWARE COUNTY ARPT AUTH
311 W. CARL SIMMONS RD.
MUNCIE, IN 47303
Phone: 765-747-5690
TIM BATY
311 W. CARL SIMMONS RD.
MUNCIE, IN 47303
Phone: 765-747-5690
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
MIE
--
ACTVT MALSR RWY 32; REIL RWY 3, 14 & 21; PAPI RWY 14 & 21; MIRL RWY 3/21; HIRL RWY 14/32 - CTAF. REIL RWY 3, 14 & 21 HIGH INTSTY ONLY. PAPI RWY 3 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
18
0
3
0
0
0
Minor
Minor
High Pressure
High Pressure
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

5198 ft. x 100 ft.
ASPH
Fair
GRVD
MED
32 /F/C/X/T
80,000lbs
100,000lbs
125,000lbs
--
  Runway 03 Runway 21
True Heading 22°202°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 14' 10"N 40° 14' 58"N
Longitude 85° 23' 48"W 85° 23' 23"W
Elevation 937' 935'
Threshold Crossing Height 39 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

6500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
36 /F/C/W/T
91,000lbs
125,000lbs
215,000lbs
--
  Runway 14 Runway 32
True Heading 136°316°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 40° 14' 55"N 40° 14' 09"N
Longitude 85° 24' 21"W 85° 23' 23"W
Elevation 929' 936'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1DEER ON & INVOF ARPT.
A110-2SVC AFT HR - 765-729-1078.
A110-3WHEN ATCT IS CLSD FOR CD CTC INDIANAPOLIS APCH AT 317-227-5743.
A110-4SFC COND UNMNT MON-FRI 1500-0700 & WKEND.
DELAWARE COUNTY RGNL (ICAO: KMIE, IATA: MIE) is a public airport located in MUNCIE, IN.
