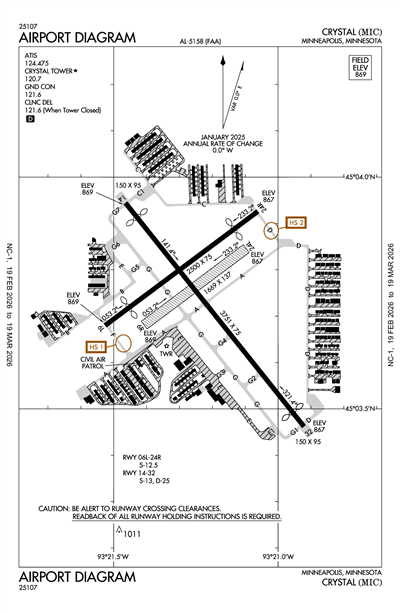

CRYSTAL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMIC
ICAO KMICIATA MICLocal MIC
CRYSTAL
PublicPUB

8 miles NW of MINNEAPOLIS, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 03' 45"N 93° 21' 14"W
Elevation
869' MSL
Pattern Alt
1869' MSL
Mag Variation
0°
Declination
2°E
Fuel
JET A, 100LL
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KMIC MVFR
7:53 PM CST
Overcast 1,600'
10sm
44°F
38°F
30.01"Hg
200° 3kts
AO2 SLP169 T00670033
METAR KMIC 050153Z 20003KT 10SM OVC016 07/03 A3001 RMK AO2 SLP169 T00670033
+ Add Your Business

KMIC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.475
ASOS (763) 531-2343

Common

CTAF 120.7
WHEN ATCT CLSD ACTVT REIL RWY 14 & 32; MIRL RWY 14/32 & 06L/24R - CTAF. PAPI RWY 14 & 32; VASI RWY 06L & 24R - OPR CONSLY.; WHEN ATCT CLSD SNOW REMOVAL OPS MNT CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.6
Clearance Delivery 121.6
WHEN TWR CLSD

Ground

CRYSTAL GROUND 121.6
0700-2100 OCT 1-APR 30; 0700-2200 MAY 1-SEP 30

Tower

CRYSTAL TOWER 120.7
0700-2100 OCT 1-APR 30; 0700-2200 MAY 1-SEP 30

Arrival

TWOLF STAR 126.95

Approach

MINNEAPOLIS APPROACH 126.5

Departure

MINNEAPOLIS DEPARTURE 126.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KMSP (12nm)
Wed, 3/4 5:20 PM CST
Wed, 3/4 6:00 PM CST - Fri, 3/6 12:00 AM CST
MVFR
6:00 PM CST - 11:00 PM CST
Broken 2,000'
6sm
180° 6kts
MVFR
11:00 PM CST - 2:00 AM CST
Mist
Broken 1,500'
6sm
140° 4kts
IFR
2:00 AM CST - 8:00 AM CST
Mist
Broken 600'
2sm
100° 4kts
MVFR
8:00 AM CST - 1:00 PM CST
Broken 1,200'
6sm
120° 6kts
MVFR
1:00 PM CST - 12:00 AM CST
Broken 2,500'
6sm
130° 10kts
TAF KMSP 042320Z 0500/0606 18006KT P6SM BKN020
   FM050500 14004KT 6SM BR BKN015
   FM050800 10004KT 2SM BR BKN006
   FM051400 12006KT P6SM BKN012
   FM051900 13010KT P6SM BKN025
KMIC
No NOTAM Available
Yes
0700-2100
METROPOLITAN AIRPORT CMSN
6040 28TH AVE S
MINNEAPOLIS, MN 55450
Phone: 612-726-8100
SAM SEAFELDT
5800 CRYSTAL AIRPORT RD
MINNEAPOLIS, MN 55429
Phone: 612-726-8140
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
MIC
--
WHEN ATCT CLSD ACTVT REIL RWY 14 & 32; MIRL RWY 14/32 & 06L/24R - CTAF. PAPI RWY 14 & 32; VASI RWY 06L & 24R - OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06L/24R

2500 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 06L Runway 24R
True Heading 53°233°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 03' 41"N 45° 03' 56"N
Longitude 93° 21' 32"W 93° 21' 04"W
Elevation 869' 867'
Threshold Crossing Height 27 ft. AGL 29 ft. AGL
Visual Glide Path Angle 4° 3.5°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 06R/24L

1669 ft. x 137 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 06R Runway 24L
True Heading 53°233°
Traffic Pattern Left Left
Markings
Markings Condition GOOD GOOD
Latitude 45° 03' 41"N 45° 03' 51"N
Longitude 93° 21' 24"W 93° 21' 06"W
Elevation 869' 867'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14/32

3751 ft. x 75 ft.
ASPH
Excellent
NONE
MED

13,000lbs
25,000lbs
--
--
  Runway 14 Runway 32
True Heading 141°321°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 03' 57"N 45° 03' 28"N
Longitude 93° 21' 28"W 93° 20' 55"W
Elevation 868' 867'
Threshold Crossing Height 37 ft. AGL 35 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10TWY E BTN TWY G5 & G6 CLSD TO ACFT WITH WINGSPAN GTR THAN 55 FT.
A110-11VOLUNTARY NOISE ABATEMENT PROCS IN EFCT. SEE ARPT WEBSITE FOR MORE INFO.
A110-2BIRDS & WILDLIFE ON & INVOF ARPT.
A110-3ULTRALIGHT OPS PROHIBITED.
A110-5WHEN ATCT CLSD SNOW REMOVAL OPS MNT CTAF.
A110-9HEL TRG CONDUCTED OVR GRASS EAST OF RWY 32 & SOUTH OF RWY 24L.
A14SAM.SEAFELDT@MSPMAC.ORG
A30-06R/24LCLSD NOV-APR; CLSD WHEN ATCT CLSD.
A30A-14CALM WIND RWY WHEN ATCT CLSD.
A42-06R_MARKYELLOW CONES.
A42-24L_MARKYELLOW CONES.
A57-06L23:1 TO DTHR.
A57-14CLNC SLP 23:1 TO DTHR.
A57-24R21:1 TO DTHR.
A57-32CLNC SLP 25:1 TO DTHR.
A70-100LLFUEL AVBL H24 VIA CREDIT CARD.
A81-APTWHEN ATCT CLSD ACTVT REIL RWY 14 & 32; MIRL RWY 14/32 & 06L/24R - CTAF. PAPI RWY 14 & 32; VASI RWY 06L & 24R - OPR CONSLY.
CRYSTAL (ICAO: KMIC, IATA: MIC) is a public airport located in MINNEAPOLIS, MN, US.
