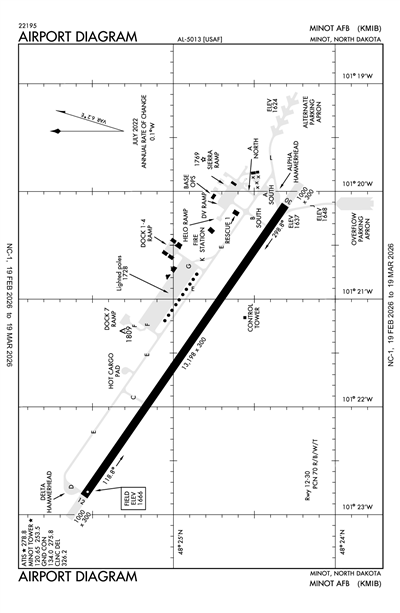

MINOT AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMIB
ICAO KMIBIATA MIBLocal MIB
MINOT AFB
PrivatePVT

10 miles N of MINOT, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 24' 57"N 101° 21' 29"W
Elevation
1666' MSL
Pattern Alt
2666' MSL
Mag Variation
6°E
Declination
7°E
Fuel
None Listed
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KMIB LIFR
3:55 AM CST
Freezing Fog
Obscured 100'
0.13sm
24°F
22°F
29.87"Hg
090° 4kts
A02A SLP141 T10431054
METAR KMIB 040955Z 09004KT 1/8SM R12/2200V3000FT FZFG VV001 M04/M05 A2987 RMK A02A SLP141 T10431054
+ Add Your Business

KMIB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS AN/FMQ-19 OWNED BY USAF.

Ground

MINOT GROUND 134.0
OPERATES 24 HRS FROM 1200Z++ MON THRU 0400Z++ FRI. SAT & SUN 1500-2300Z++.

Tower

MINOT TOWER 120.65
OPERATES 24 HRS FROM 1200Z++ MON THRU 0400Z++ FRI. SAT & SUN 1500-2300Z++.

Approach

MINOT APPROACH 118.15
MINOT APPROACH 119.6

Departure

MINOT DEPARTURE 119.6

Emergency

Emergency 121.5

Terminal Area Forecast

KMIB
Wed, 3/4 3:00 AM CST
Wed, 3/4 3:00 AM CST - Thu, 3/5 9:00 AM CST
LIFR
3:00 AM CST - 5:00 AM CST
Freezing Fog
Overcast 100'
0.5sm
29.88"Hg
VRB° 6kts
LIFR
Temporary 3:00 AM CST - 6:00 AM CST
Freezing Fog
No Clouds
0.25sm
Calm
LIFR
Becoming 5:00 AM CST - 9:00 AM CST
Mist
Overcast 500'
0.99sm
29.88"Hg
040° 9kts
LIFR
Temporary 6:00 AM CST - 10:00 AM CST
Freezing Fog
Overcast 300'
0.5sm
Calm
IFR
Becoming 9:00 AM CST - 11:00 AM CST
Mist
Overcast 500'
3.73sm
29.94"Hg
060° 10kts
Gusts 15kts
IFR
Becoming 11:00 AM CST - 8:00 PM CST
Overcast 700'
6sm
29.97"Hg
060° 10kts
Gusts 15kts
IFR
Becoming 8:00 PM CST - 10:00 PM CST
Overcast 700'
6sm
29.97"Hg
060° 10kts
Gusts 20kts
LIFR
Becoming 10:00 PM CST - 12:00 AM CST
Mist
Overcast 500'
0.99sm
29.97"Hg
090° 10kts
Gusts 20kts
LIFR
Becoming 12:00 AM CST - 6:00 AM CST
Freezing Fog
Overcast 200'
0.5sm
29.85"Hg
090° 10kts
Gusts 20kts
LIFR
Becoming 6:00 AM CST - 8:00 AM CST
Freezing Fog
Overcast 200'
0.25sm
29.85"Hg
090° 9kts
LIFR
Becoming 8:00 AM CST - 9:00 AM CST
Freezing Fog
Overcast 200'
0.25sm
29.85"Hg
VRB° 6kts
TAF KMIB 040900Z 0409/0515 VRB06KT 0800 FZFG OVC001 620023 QNH2988INS
   TEMPO 0409/0412 0400 FZFG
   BECMG 0411/0412 04009KT 1600 BR OVC005 620052 QNH2988INS
   TEMPO 0412/0416 0800 FZFG OVC003
   BECMG 0415/0416 06010G15KT 6000 BR OVC005 620053 QNH2994INS
   BECMG 0417/0418 06010G15KT 9999 NSW OVC007 620073 QNH2997INS
   BECMG 0502/0503 06010G20KT 9999 OVC007 620073 QNH2996INS
   BECMG 0504/0505 09010G20KT 1600 BR OVC005 620053 QNH2996INS
   BECMG 0506/0507 09010G20KT 0800 FZFG OVC002 620023 QNH2984INS
   BECMG 0512/051
KMIB
EffectiveExpiresCategoryNOTAM
Military
3/4/26
0406Z
3/6/26
0549Z
OBSTRUCTION LIGHT ON WATER TOWER LOCATED AT 4841N101325W UNLIT.
3/4/26
0404Z
3/6/26
0549Z
OBSTRUCTION LIGHT ON WATER TOWER NEXT TO ROTATING BEACON LOCATED AT 4841N101324W UNLIT.
3/4/26
0356Z
3/6/26
0549Z
AerodromeAERODROME ROTATING BEACON OUT OF SERVICE.
3/4/26
0352Z
3/7/26
0352Z
M0227/26 NOTAMC M0226/26
3/3/26
2321Z
3/31/26
2359Z
AerodromeAERODROME REDUCED AIRCRAFT FIRE FIGHTING CAPABILITIES DUE TO REDUCED MANPOWER AND FIREFIGHTING AGENT. NFPA CATEGORIES 3 RLS (YELLOW) AND 8 RLS (YELLOW). FOR ALL OTHER NFPA CATEGORIES OR FOR MORE INFORMATION PLEASE CONTACT AIRFIELD MANAGEMENT 701-723-2347.
3/3/26
1945Z
3/6/26
1945Z
L0005/26 NOTAMC L0004/26
3/3/26
1751Z
3/6/26
1751Z
M0224/26 NOTAMC M0222/26
3/3/26
1751Z
5/30/26
1700Z
OBST RADIO TOWER LOCATED AT 4825N10153W OBSTRUCTION LIGHT UNLIT
3/3/26
1406Z
3/7/26
0600Z
ALTERED AERODROME OPERATING HOURS 2 MAR - 6 MAR: 0600Z-0559Z (0000L-2359L).
3/3/26
1300Z
3/5/26
2100Z
AerodromeAERODROME USE CAUTION: UAS OPERATIONS TAKING PLACE OVER ZONES A, B, C & D. FROM 0800L - 1600L DAILY 03 MAR ? 05 MAR. MAX HEIGHT 400FT AGL.
3/3/26
1123Z
3/6/26
1123Z
M0220/26 NOTAMC M0219/26
3/2/26
1615Z
3/5/26
1615Z
M0217/26 NOTAMC M0216/26
3/2/26
1552Z
3/5/26
1552Z
M0215/26 NOTAMC M0210/26
3/2/26
1446Z
3/5/26
1446Z
M0213/26 NOTAMC M0208/26
3/2/26
1433Z
3/5/26
1433Z
M0211/26 NOTAMC M0205/26
2/26/26
2057Z
3/27/26
2359Z
BALL PARK LIGHT LOCATED 4825N10121W OBSTRUCTION LIGHT UNLIT
2/26/26
2057Z
3/27/26
2359Z
RADIO TOWER LOCATED AT 4758N10213W OBSTRUCTION LIGHT UNLIT.
2/2/26
1416Z
5/3/26
0459Z
HELO YIELD MARKINGS FADED LACKING RETRO-REFLECTIVITY.
12/15/25
1605Z
3/15/26
0559Z
Taxiway!KMIB M1367/25 MIB TWY E CL MARKINGS FADED LACKING RETRO-REFLECTIVITY. 2512151605-2603150559
Yes
MON-FRI
SAT &SUN
OPR 1300-0500Z++ MON-THUR; 1300-2400Z++ FRI; CLSD SAT, SUN, AFGSC APPROVED DOWN DAYS, AND FEDERAL HOL EXC BY NOTAM.
OTHER TIMES BY NOTAM.
USAF
MINOT AFB
MINOT, ND 58701
BASE OPERATIONS
MINOT AFB
MINOT, ND 58701
Phone: 701-723-2644
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
MIB
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Cargo Handling

Runway 12/30

13198 ft. x 300 ft.
ASPH
CONC
GRVD
HIGH
70/R/B/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 125°305°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 48° 25' 34"N 48° 24' 19"N
Longitude 101° 22' 49"W 101° 20' 09"W
Elevation 1,666' 1,637'
Threshold Crossing Height 47 ft. AGL 49 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-10JASU: 9(MD-3A) 2(M32A-60A) (MA-1A)
A110-12FLUID: SP PRESAIR DE-ICE-EXP POSSIBLE DELAY WKEND. LOX LHOX LHNIT
A110-13OIL: O-133-148 JOAP - RQR 2 HR PN WKEND.
A110-14TRAN ALERT: OPR 1330-2330Z++ WKD; CLSD SAT AND SUN. FLEET SVC UNAVBL.
A110-17CAUTION: BIRD HAZ.
A110-18TFC PAT: RECTANGULAR 2900', MULTI-ENG JET RGT TFC RWY 30; OVERHEAD 3400', RGT BREAK RWY 12.
A110-20CSTMS/AG/IMG: CSTMS AVBL FOR ACFT ARR FR FOREIGN AREAS, INCL RQR IN RMK SEC OF FLT PLAN AND RECONFIRM NOT LATER THAN 30 MIN PRIOR TO ARR ON PTD. INCL A PAX BREAKDOWN BY TOTAL NR OF US MIL AND US CIV ON BOARD, WHEN APPLICABLE.
A110-25RSTD: PPR CTC AFLD MGNT PRIOR TO ARR DSN 453-2347, C701-723-2347. PPR MAY BE ISSUED UP TO 15 DAYS PRIOR TO, BUT NO LATER THAN 72 HR PRIOR TO SKED ARR. PPR ALL ACFT INCL DV, HAZ CARGO AND AIREVAC REGARDLESS OF AFFILIATION FOR NOTIFICATION AND COORD PURPOSES. ALL RON TRAN CREWS MUST CTC COMD POST WITH BILLETING ARNG.ALL VIP ACFT CTC COMD POST NO LATER THAN 60 NM OUT.
A110-26RSTD: AVOID OVFT BLW 4200' OF AFLD WHEN CLSD, EXCLD PUBL INST APCH OF DEP PRO.
A110-28RSTD: ACFT WITH TT TYPE LDG GEAR WITH MAX ACFT WT 477,000 LBS OR MORE MUST CTC AFLD MGT PRIOR TO ARR OR DEP.
A110-31CAUTION: BASH PHASE II EFF DUR MID-APR TO LATE JUN AND MID-SEP-LATE NOV. CK CURRENT NOTAMS FOR ANY DEVIATIONS TO THE BASH PHASE WINDOWS.
A110-37MISC: WX OPR H24. DSN 453-6385, C701-723-6385. AN/FMQ-19 ASOS IN USE, AUGMENTED BY HUMAN OBSN WHEN NEC DUR AFLD HR. WX OBSN VIS RSTD NE-SE DUE TO BLDG.
A110-39CAUTION: UNCTL HELO OPS OUTSIDE OF PUBL OPERATING HRS.
A110-40FUEL: A++
A110-42MISC: RSC/RCR AND ACTIVE RWY NOT RPT WHEN AFLD CLSD.
A110-43TRAN-ALERT: FLEET SVC UNAVBL.
A110-44DUE TO C5/B747 ACFT PRK LCTN AIRCREWS CAN EXP DELAYS FOR FUELING AND PAX LOADING.
A110-45RWY 12/30 100' WIDE CONC KEEL SFC IN CNTR WITH 100' WIDE ASPHALT EITHER SIDE.
A110-46RSTD: ALL AIRCREWS REQ PPR OUTSIDE OF PUBL AFLD HR CTC COMD POST.
A17-H1OPR 1300-0500Z++ MON-THUR; 1300-2400Z++ FRI; CLSD SAT, SUN, AFGSC APPROVED DOWN DAYS, AND FEDERAL HOL EXC BY NOTAM.
A17-H2OTHER TIMES BY NOTAM.
A33-12/30_SURFACTUAL SURFACE TYPE IS "PEM" (PART ASPH/CONC/MACADAM).
MINOT AFB (ICAO: KMIB, IATA: MIB) is a private airport located in MINOT, ND, US.
