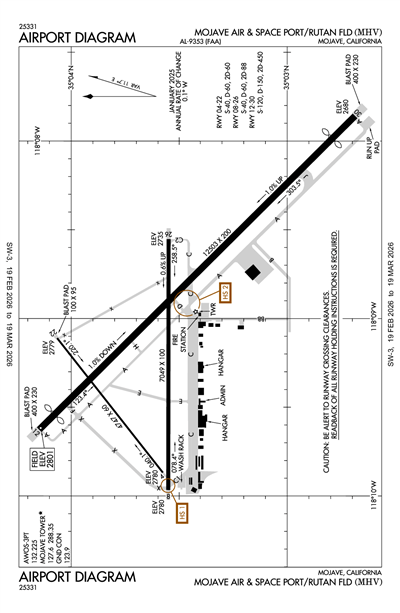

MOJAVE AIR & SPACE PORT/RUTAN FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMHV
ICAO KMHVIATA MHVLocal MHV
MOJAVE AIR & SPACE PORT/RUTAN FLD
PublicPUB

1 miles E of MOJAVE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 03' 32"N 118° 09' 02"W
Elevation
2801' MSL
Pattern Alt
3801' MSL
Mag Variation
12°E
Declination
14°E
Fuel
JET A, JET A (FSII), 100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KMHV VFR
5:55 PM PST
Clear
10sm
63°F
35°F
30.06"Hg
270° 4kts
AO2 T01720019 $
METAR KMHV 040155Z AUTO 27004KT 10SM CLR 17/02 A3006 RMK AO2 T01720019 $
+ Add Your Business

KMHV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 132.225
(661) 824-5218

Common

CTAF 127.6
ACTVT REIL RWYS 12 & 30; MIRL RWYS 08/26 & 04/22; HIRL RWY 12/30 - CTAF.

Ground

MOJAVE GROUND 123.9
0700-1700 MON-FRI

Tower

MOJAVE TOWER 127.6
0700-1700 MON-FRI

Approach

JOSHUA APPROACH 133.65

Departure

JOSHUA DEPARTURE 133.65

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KEDW (16nm)
Tue, 3/3 2:00 PM PST
Tue, 3/3 2:00 PM PST - Wed, 3/4 8:00 PM PST
VFR
2:00 PM PST - 6:00 PM PST
Scattered 28,000'
6sm
30.00"Hg
VRB° 5kts
VFR
Becoming 6:00 PM PST - 9:00 AM PST
Sky Clear
6sm
30.00"Hg
VRB° 5kts
VFR
Becoming 9:00 AM PST - 2:00 PM PST
Scattered 28,000'
Few 21,000'
6sm
29.94"Hg
250° 10kts
VFR
Becoming 2:00 PM PST - 5:00 PM PST
Broken 21,000'
Broken 19,000'
6sm
29.91"Hg
290° 15kts
Gusts 25kts
VFR
Becoming 5:00 PM PST - 8:00 PM PST
Broken 25,000'
Scattered 20,000'
6sm
29.94"Hg
260° 15kts
Gusts 25kts
TAF KEDW 032200Z 0322/0504 VRB05KT 9999 SCT280 QNH2999INS
   BECMG 0402/0403 VRB05KT 9999 SKC QNH3001INS
   BECMG 0417/0418 25010KT 9999 FEW210 SCT280 QNH2993INS
   BECMG 0422/0423 29015G25KT 9999 BKN190 BKN210 QNH2992INS
   BECMG 0501/0502 26015G25KT 9999 SCT200 BKN250 QNH2994INS TX23/0323Z TN06/0414Z
KMHV
EffectiveExpiresCategoryNOTAM
Domestic
7/21/25
1725Z
3/31/26
2359Z
!MHV 07/021 MHV TWY F CLSD EXC 2HR PPR 661-824-2433 2507211725-2603312359
Yes
ALL
MOJAVE AIR AND SPACE PORT
1434 FLIGHTLINE
MOJAVE, CA 93501
Phone: 661-824-2433
DAVID SMITH
1434 FLIGHTLINE
MOJAVE, CA 93501
Phone: 661-824-2433
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
MHV
--
ACTVT REIL RWYS 12 & 30; MIRL RWYS 08/26 & 04/22; HIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Pilot Instruction

Runway 04/22

4747 ft. x 60 ft.
ASPH
Excellent
NONE
MED

40,000lbs
60,000lbs
60,000lbs
--
  Runway 04 Runway 22
True Heading 52°232°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 03' 35"N 35° 04' 04"N
Longitude 118° 09' 51"W 118° 09' 07"W
Elevation 2,780' 2,779'
Threshold Crossing Height 39 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 08/26

7049 ft. x 100 ft.
ASPH
Good
NONE
MED

40,000lbs
60,000lbs
88,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 03' 33"N 35° 03' 33"N
Longitude 118° 09' 58"W 118° 08' 33"W
Elevation 2,780' 2,735'
Threshold Crossing Height 55 ft. AGL 52 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

12503 ft. x 200 ft.
ASPH
Excellent
NONE
HIGH

120,000lbs
150,000lbs
450,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 04' 09"N 35° 02' 41"N
Longitude 118° 09' 38"W 118° 07' 51"W
Elevation 2,801' 2,680'
Threshold Crossing Height 82 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-5BE ALERT TO HIGH SPEED ACTIVITY INVOF ARPT.
A110-6DUE TO RAPIDLY RISING TERRAIN AND WIND TURBINES W - NW OF ARPT, CAT C/D & ALL TURBOJET ACFT LDG RWY 8 MUST REMAIN AT OR ABOVE 4301 FT MSL UNTIL COMMENCING BASE LEG TURN AND AT OR ABOVE 3800 FT MSL UNTIL ESTABLISHED ON A 2.25 NM FINAL.
A110-7TWY F IS CLSD WEST OF TWY A.
A31-08/26300 FT PAVED OVERRUN EAST END OF RY; 300 FT PAVED OVERRUN WEST END OF RY.
A43-12PAPI UNUSBL BYD 2.5 NM.
A52-12WIND TURBINE
A57-12APPROACH SLOPE 40:1 TO THE DSPLCD THR.
A70-100LLFUEL AVBL 0700-1700, MON-SAT. OTR TIMES CTC ARPT OPNS ON CTAF OR CALL 661-824-2434; FEE CHARGED.
A70-A+FUEL AVBL 0700-1700, MON-SAT. OTR TIMES CTC ARPT OPNS ON CTAF OR CALL 661-824-2434; FEE CHARGED.
A81-APTACTVT REIL RWYS 12 & 30; MIRL RWYS 08/26 & 04/22; HIRL RWY 12/30 - CTAF.
E147CAT C/D & ALL TBJT ACFT TPA 4301 FT MSL (1500 FT AGL); CAT A/B ACFT TPA 3801 FT MSL (1000 FT AGL); HEL TPA 3301 FT MSL (500 FT AGL) AND USE SOUTH ENTRY AND DEP.
MOJAVE AIR & SPACE PORT/RUTAN FLD (ICAO: KMHV, IATA: MHV) is a public airport located in MOJAVE, CA, US.
